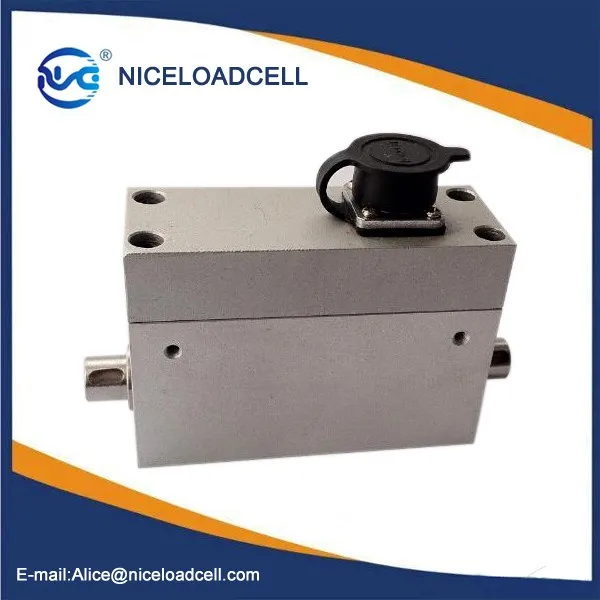

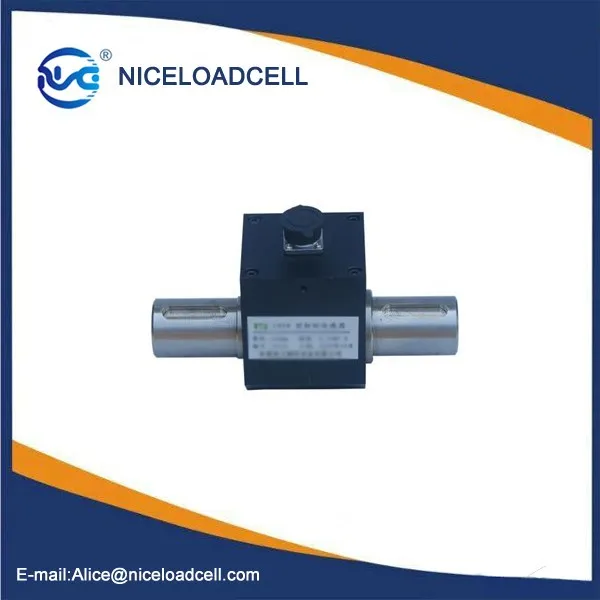

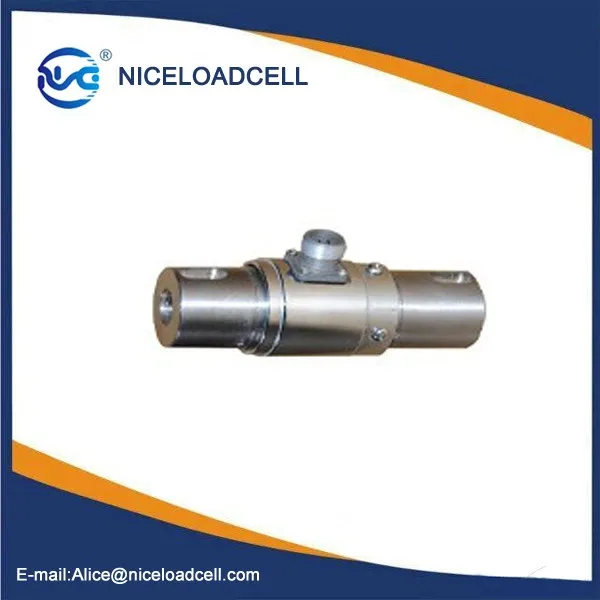

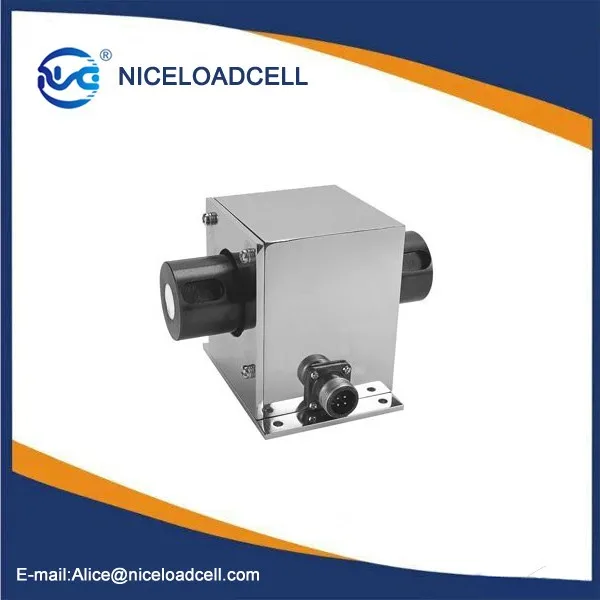

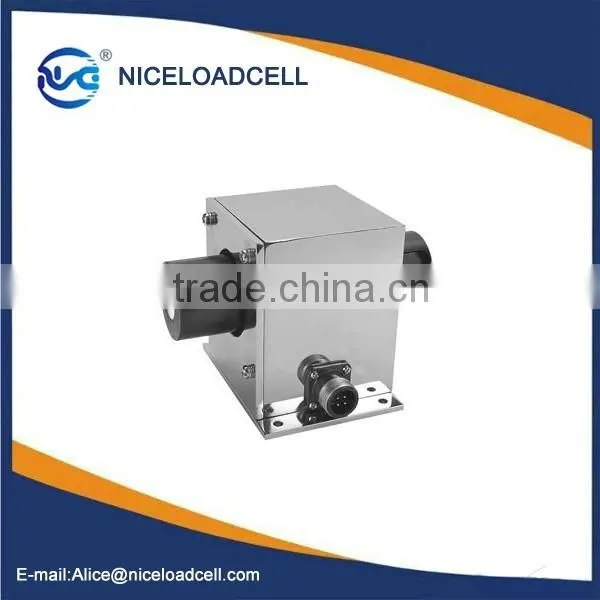

Slip Ring Dynamic Rotary Torque Sensor Transducer

Slip Ring Dynamic Rotary Torque Sensor Transducer thumbnail-1
Slip Ring Dynamic Rotary Torque Sensor Transducer photo-1
US$ 400 - 700 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
CZS
Model Number:
CZS-WTQ-1000AB
Contact Supplier Request Quote Chat Now
Changsha Naisi Electronic Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name CZS
Model Number CZS-WTQ-1000AB
Usage Position Sensor
Theory Resistance Sensor
Output Switching Transducer
Product Description

Specifications :
1: For Dynamic torque measurement
2: Dynamic torque measurement 1NM 5NM 10NM 20NM 30NM 50NM 100NM
3: Small Size ; Be installed at any position, any direction.
Features :
1: One product of resistance strain gauge as the sensitive element and integrated circuit. through the brush to achieve power and signal output.

2: For low-range torque measurement

3:Continuously transmitting positive &negative torque signal without repeated zero setting.
4:Small volume, Light weight, Easy to install , Be installed at any position, any direction
5:High accuracy, reliable performance.
6:Transmission has nothing to do with rotation, speed and veer.
7:output the signals of positive rotation and reaction torque.
8:Mounting: Keyed shaft both ends.
9:Max Rotate-speed: ≤500rpm/minutes


Technology parameter
capability range 0~0.5,1,2,5,10,20,50,100 Nm
Rated output1.0~2.0 mV/V
Accuracy ±0.1; ±0.3; ±0.5%F.S
Compensated temperature range- 10 ~ 40 ºC
Recommended Excitation 12VCD
Temp Effect On Zero±0.1%F.S/10 ℃
Frequency response 100μS
Insulation 2000 MΩ/100VDC
Input Impedance 700±10/350±10Ω
Output impedance700±5/350±5Ω
Safe Overload 120%F.S
Ultimate Overload150%F.S





Related Products

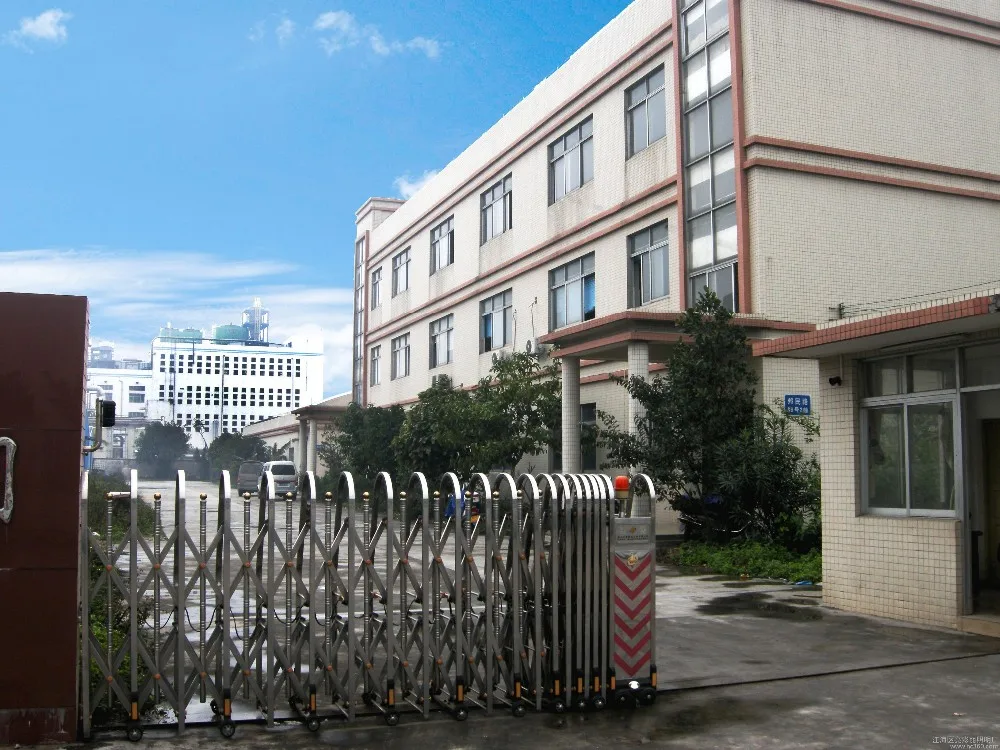

Our Company

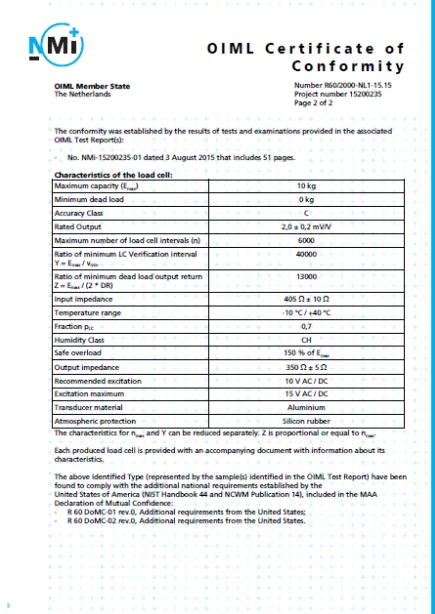

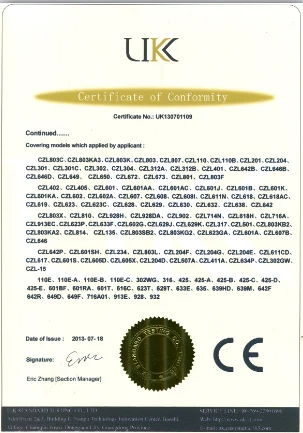

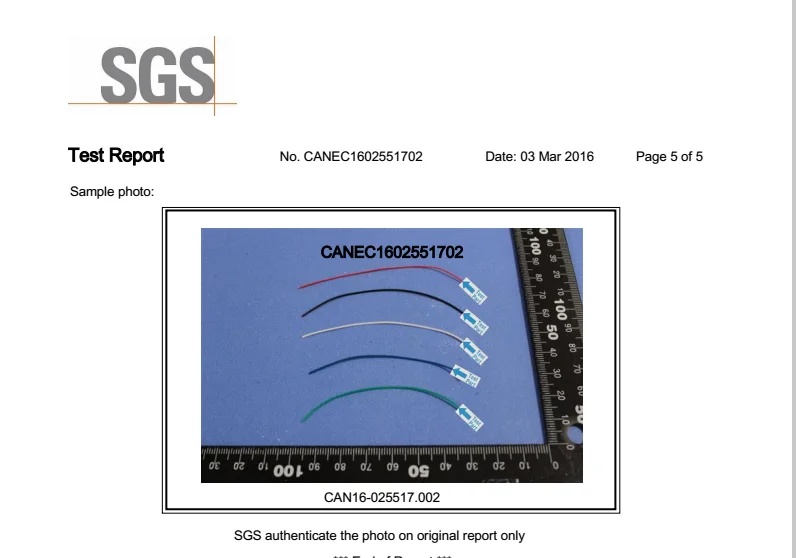

Certifications

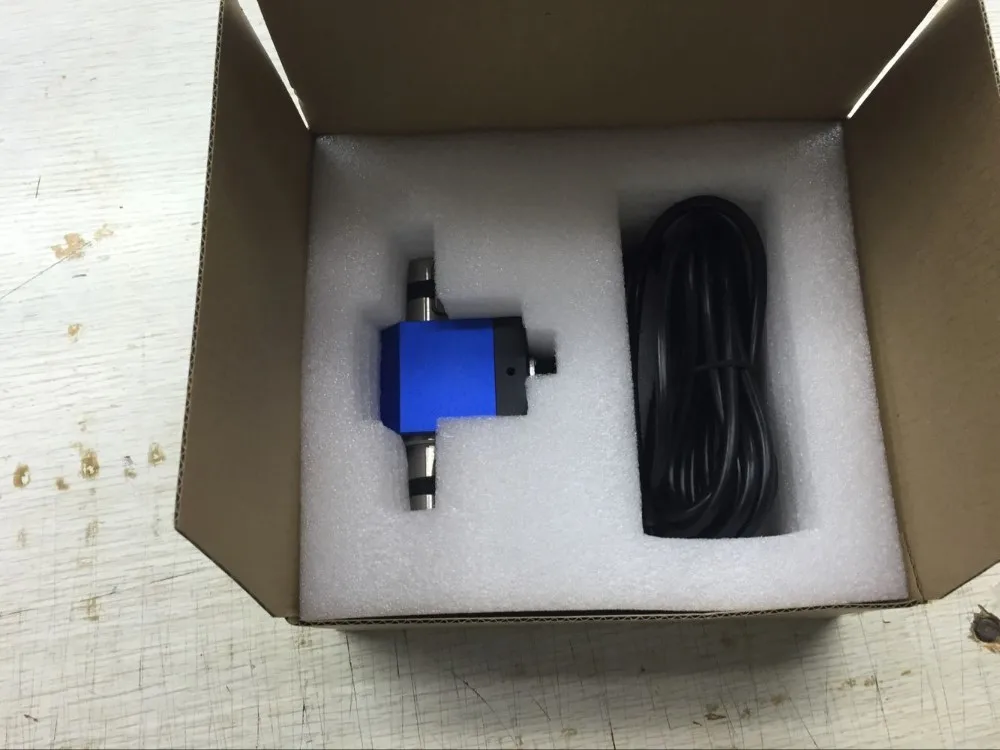

Packing & Delivery
FAQ

Can i get a samples?

Yes,When we are in storage ,will be sending 1-5pcs by free but the shipping cost is by client!
Accept special design?
Yes,we can be accept any special customized
How long for delivery days?
Samples:1-10DAYS
Big Quantity(10K-50K):30-45days
Did you have of gurantee period?
Yes,Within 1year the goods have any problems that you could be return to me revise it but freight cost is by customer

We have a best price and high precision.Welcome to your inquiry!
