Slip Ring Dynamic Rotary Torque Sensor Transducer

Slip Ring Dynamic Rotary Torque Sensor Transducer thumbnail-1
Slip Ring Dynamic Rotary Torque Sensor Transducer thumbnail-2
Slip Ring Dynamic Rotary Torque Sensor Transducer photo-1

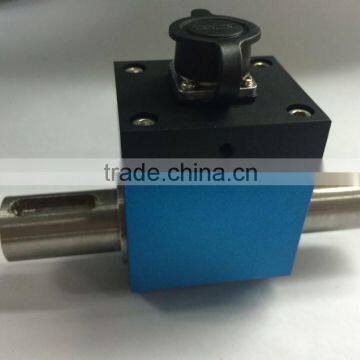

Slip Ring Dynamic Rotary Torque Sensor Transducer photo-2
US$ 400 - 700 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
CZS
Model Number:
CZS-WTQ-1050AB
Contact Supplier Request Quote Chat Now
Changsha Naisi Electronic Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name CZS
Model Number CZS-WTQ-1050AB
Usage Position Sensor
Theory Resistance Sensor
Output Switching Transducer
Product Description

Rotating torque measure rotary torque transducer
Basic feature
Model: CZS-WTQ1050A
Capacity: 0.1/0.2/0.3/0.5/1/2/3/5/10/20/30/50/100Nm
Precision: ±0.1; ±0.3; ±0.5%F.S
Output sensitivity: 1.0~1.5.0 mV/V, 4-20mA, 0-5/ 0-10Vdc
Type: rotatary torque transducer


Specifications :
1: For Dynamic torque measurement
2: Dynamic torque measurement : 10NM ~ 100NM
3: Application: torque wrench and torsion, measurement of shaft
4: High accuracy, reliable performance. strong anti-interference.


Features :
1:Measuring range :10~100N.M
2: Material: stainless steel
3:It can be continuous measurement of positive and negative torque.
4:Small volume, Light weight, Easy to install , Be installed at any position, any direction .
5:High accuracy, reliable performance.
6:Transmission has nothing to do with rotation, speed and veer.
7:output the signals of positive rotation and reaction torque.

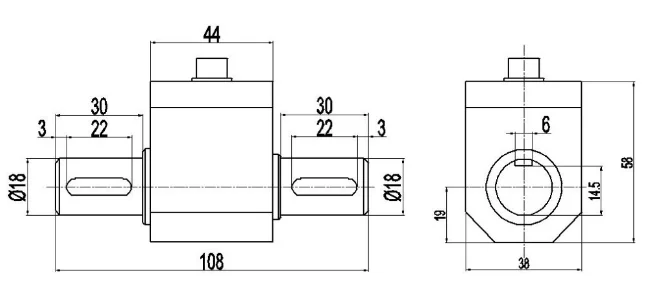

8:Mounting: Keyed shaft both ends.
9:Max Rotate-speed: ≤4000rpm/minutes


Specifications:
1:Capacity :0~0.5,1,2,5,10,20,50,100 Nm
2:Rated output :1.0~2.0 mV/V
3:Accuracy :±0.1; ±0.3; ±0.5%F.S
4:Compensated temperature range : - 10 ~ 40 ºC
6:Temp Effect On Zero: ±0.1%F.S/10 ℃
7:Recommended Excitation: 12VCD
8:Frequency response :100μS
9:Insulation :2000 MΩ/100VDC
10:Input Impedance:700±10/350±10Ω
11:Output impedance:700±5/350±5Ω
12:Safe Overload :120%F.S
13:Ultimate Overload:150%F.S


Related Products
Our Company

Certifications
Packing & Delivery
FAQ

Can i get a samples?

Yes,When we are in storage ,will be sending 1-5pcs by free but the shipping cost is by client!
Accept special design?
Yes,we can be accept any special customized
How long for delivery days?
Samples:1-10DAYS
Big Quantity(10K-50K):30-45days
Did you have of gurantee period?
Yes,Within 1year the goods have any problems that you could be return to me revise it but freight cost is by customer

We have a best price and high precision.Welcome to your inquiry!
