1200-800 Colored Steel Sheet Tile Roof Roll Forming Machine

1200-800 Colored Steel Sheet Tile Roof Roll Forming Machine thumbnail-1
1200-800 Colored Steel Sheet Tile Roof Roll Forming Machine photo-1
US$ 30,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Steel
Contact Supplier Request Quote Chat Now
Yingkou Professional Roll Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Steel
Use Roof
Production Capacity 66.7%
Place of Origin Liaoning, China
Brand Name PRO
Model Number PRO240(1200-800)
Power(W) 18.9KW
Voltage 380V
Dimension(L*W*H) 11650mm *2230mm*2300mm
Weight 12T
Certification CE ISO
Warranty 13 months after B/L date, 1 year
After-sales Service Provided Engineers available to service machinery overseas

1200-800 arch sheet roll forming machine



1.Technical parameter

Main Technical Specification:
Size: 11650mm × 2230mm × 2300mm
Total Weight: about 15000KG
MainMotorPower:18.9KW
Bending power: 3.0kw+1.1kwx2;
Sewing power: 2.2kw
Cutting power: 4.0kw;

Forming power: 7.5kw
Working Speed:  Straight sheet: 15m/min
                            Arch sheet: 13m/min
                            Sewing: 16m/min
Feeding Width: 1200mm
Effective Width: 800mm
Step of rollers: 14 steps
Controlling system: PLC &Manual
Material of cutting blade: Cr12 moV
Sheet operating factor: 66.7%
Thickness of the coil: 0.6-1.5mm
Material of roller shaft: 45# steel, galvanized
Material of rollers: 45# steel, quenched with hard chrome
Type of cutting: Roll-formed and length-set cutting
Electric Standard : 380V / 50 HZ / 3 PHASES
The depth of the groove:265mm
Proper span: ≤42m
Ship Container: 40’HQ x 1
Characteristics
1. The rollers and shafts are both solid, the rollers are made by 45# steel plated with hard chromium.
2. The thickness of our arch shaping leaf is 10mm, the process of manufacture for our arch shaping leafs are controlled by computer.
3. The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument.
4. Our machine can be divided in to two cutting ways, one is hydraulic, and the other is mechanical. Controlling system include manual and automatic. It can be also designed according to your requirement.
5. Our helping hand wheel and the counter are used in adjustment of the bendi

ng of arch sheet, which makes the operation simpler.
6. Our hoisting tool is light and handy; the weight of hoisting tool of our company is 2KG. It is convenient to install and uninstall the hoisting tool. Its hoisting speed is quick.

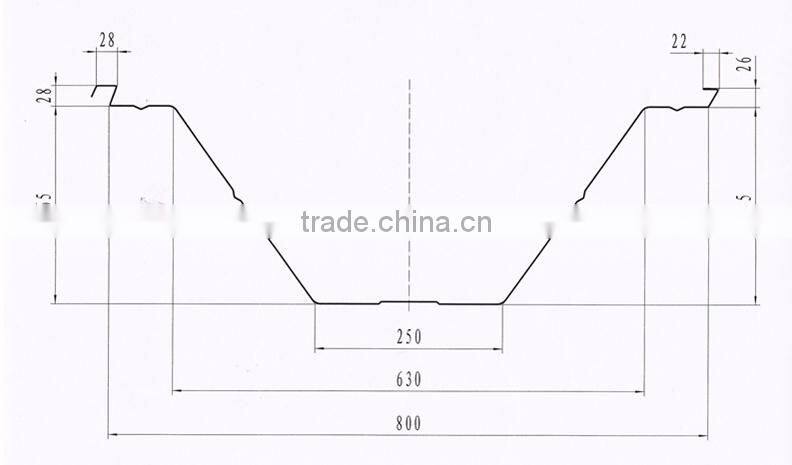

2.Profile

1200-800 Colored Steel Sheet Tile Roof Roll Forming Machine











3.Picture of the product

1200-800 Colored Steel Sheet Tile Roof Roll Forming Machine

  1200-800   Curved Roof Roll Forming Machine

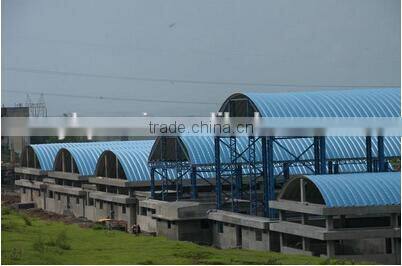

4.Arch roof project

1200-800 Colored Steel Sheet Tile Roof Roll Forming Machine





5.Model list of PR Roll Forming Machine:



Model

Feeding width

(mm)

Effective width

(mm)

Depth of groove

(mm)

utilization ratio

Thickness of steel coil

(mm)

Largest span (m)

PRO-600-300

600

300

100

50%

0.6-1.5

30

PRO-600-305

600

305

109

50.8%

0.6-1.5

28

PRO-914-400

914

400

210

43.7%

0.6-1.5

40

PRO-914-610

914

610

203

66.7%

0.6-1.5

38

PRO-914-650

914

650

181

71.1%

0.6-1.5

26

PRO-914-700

914

700

123

76.5%

0.6-1.5

22

PRO-914-750

914

750

180

82%

0.6-1.5

14

PRO-1000-610

1000

610

243

61%

0.6-1.5

42

PRO-1000-680

1000

680

223

68%

0.6-1.5

38

PRO-1000-700

1000

700

175

70%

0.6-1.5

30

PRO-1000-750

1000

750

138

75%

0.6-1.5

24

PRO-1000-800

1000

800

114

80%

0.6-1.5

18

PRO-1200-800

1200

800

265

67%

0.6-1.5

40

PRO-1220-800

1220

800

355

66%

0.6-1.5

42

PRO-1250-800

1250

800

320

64%

0.6-1.5

45







 If any machinery interested in ,feel free to contact us for further discussion.We will provide the most suitable product for you .
