Screw Joint Arch Sheet Roll Forming Machine
US$ 30,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1000-680 Arch Roof Forming MachineUS$ 10 - 100,000MOQ: 1 Set -
1000-680 Arch Roof Roll Forming MachineUS$ 10 - 100,000MOQ: 1 Set
-
914-700 Arch Roof Roll Forming MachineUS$ 30,000 - 80,000MOQ: 1 Set
-
914-400 Arch Roof Roll Forming MachineUS$ 30,000 - 80,000MOQ: 1 Set
-
1000-680 Colored Steel Sheet Roll Forming MachineUS$ 10 - 100,000MOQ: 1 Set
Condition
New
Type
Tile Forming Machine
Tile Type
Steel
Use
Roof
Production Capacity
10-12m/min
Place of Origin
Liaoning, China
Brand Name
PR
Model Number
PRO1000-680
Power(W)
Total 25Kw
Voltage
380V or 220V
Dimension(L*W*H)
10000*1500*1500mm
Weight
10T
Certification
CE/ISO9001
Warranty
13 months after B/L date
After-sales Service Provided
Engineers available to service machinery overseas

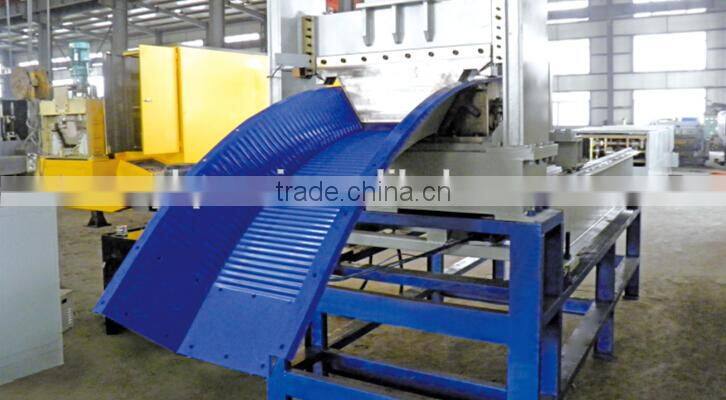

Screw Joint Arch sheet roll forming machine
Technical parameter
1. Dimension : 10000mm×1500mm×1500mm
2. Weight : Around 8 T
3. Shearing material : 12CrMoV
4. Shearing type : Mechanical
5. Total motor power : 25KW
6. Main motor : 7.5KW
7. Decoiler motor : 3.0KW
8. Leveling machine motor : 4.0KW
9. Shearing machine motor : 3.0KW
10. Hydraulic station power : 7.5KW
11. Roller Material : 45# high-quality steel (Standard), quenched HRC 55~65, hard
chrome plating.
12. Shaft Material : 45# high-quality steel, galvanized
- Technological process
- Loading (load & expand galvanized coil on decoiler)
- Feeding & Leveling (prepare flat galvanized sheet for punching)
- Edge-punching & Ends-punching on flat galvanized sheet
- Shearing punched sheet
- Roll forming sheared sheet
- Bending Roll formed sheet

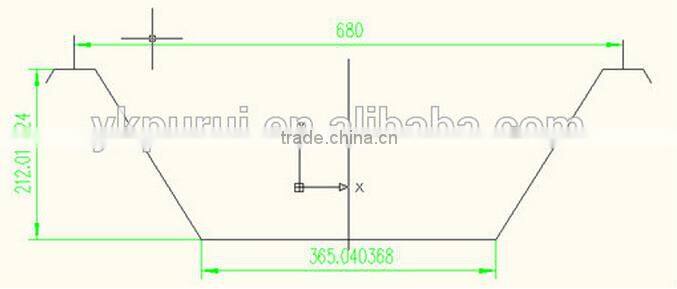

Profile
Screw-joint Arch Roof Project
Features:
1. The machine can produce different length panel according to the project requirements.
2. It can be transported to the construction site straightly when it finished on workshop.
3. Dismounting very convenient.
4. The building has 100% available space; it can install lighting, pipeline, ventilation, keep warm and cooling system.
5. It is removable building.
Do heasite to contact us for any question.
