Automatic building roof forming mahcine
Our company was founded in 2000. On 15000m2 occupancy area, more than 100 people work together to render our service for you, including 10 highly qualified technicians.We have an excellent R &D team and complete management system, always dedicated to providing stable, high efficient and precise equipment for International Clients. With high quality, reasonable price and "customer-oriented" service, we are already the recognized leader in the area and also supplier for many manufactures and trading companies.
Our main products are: Steel-drum production line, Steel drum, 240/120Arch sheet roll forming machine, Multi-shape Building Machine, Screw-jointed Equipment,Arch Sheet Project, MSBM Project, Screw-jointed Project, KR 18 Roll Forming Machine,Glazed Tile Roll Forming Machine, Double Layer Roll Forming Machine, 840 Corrugated Sheet Roll Forming Machine,Corrugated Roof Sheet Forming Machine, Concealed Roof Sheet Forming Machine, Steel Decking Roll Forming Machine,C/Z/U/M Shaped Steel Purlin Forming Machine, Highway Guardrail Roll Forming Machine, Sandwich Panel Roll Forming Machine, Lifting Machine, Unlimited Length Ridge Tile Forming Machine, Sheering Machine, Window and Door Taping Machine, Flat Sheet Bending Machine, Pipe Bender Machine, Bending Machine, Slitting Machine, Slitting Line, SM-40 Spiral Steel Silo Forming Machine, PU Spray and Perfusion Equipment, Colored Steel Sheet Coils, etc.
We can also supply all the relevant equipments, accessories and raw material for steel structure projects. Meanwhile one efficient construction team is equipped to design and build various large steel structure projects for you at any time.
Upholding the company philosophy of "high quality casts the brand, good faith will create the future", with equipments of high quality and cost effective, we have already established favorable relationships and won a good reputation with clients from more than 60 countries in the world.
In the future, the company will continue to hold the philosophy, led by market demand, make products finest, optimize service, promote BOHAI brand image. Sincerely wish to strengthen business relations with friends all over the world, with your common development is our eternal pursuit.
Size: 11650mm × 2230mm × 2400mm
|
Total Weight: about 15000KG
|
MainMotorPower:17.9KW
| |
|
Bendingpower:3.0kw+1.1x2kw
Sewing power: 2.2kw
|
Cutting power: 3.0kw
Forming power: 7.5kw
|
|
Working Speed: Straight sheet: 15m/min
Arch sheet: 13m/min
Sewing: 16m/min
| |
Feeding Width: 914mm
|
Effective Width: 610mm |
Step of rollers: 14 steps
|
Controlling system: PLC (Ormon)
|
Material of cutting blade: Cr12 moV |
Sheet operating factor: 66%
|
Thickness of the coil: 0.6-1.5mm
|
Material of roller shaft: 45# steel, galvanized |
Material of rollers: 45# steel, quenched with hard chrome
|
Type of cutting: Roll-formed and length-set cutting
|
Electric Standard:380V / 50 HZ /3 PHASE |
The depth of the groove:203mm |
Proper span: ≤42m |
Ship Container: 40’HQ x 1 |

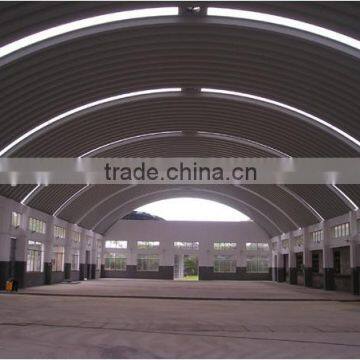

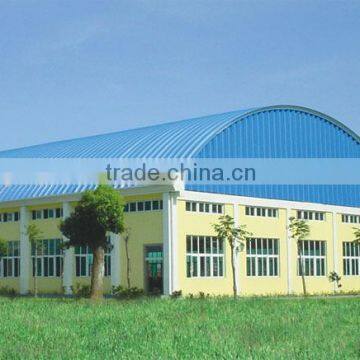

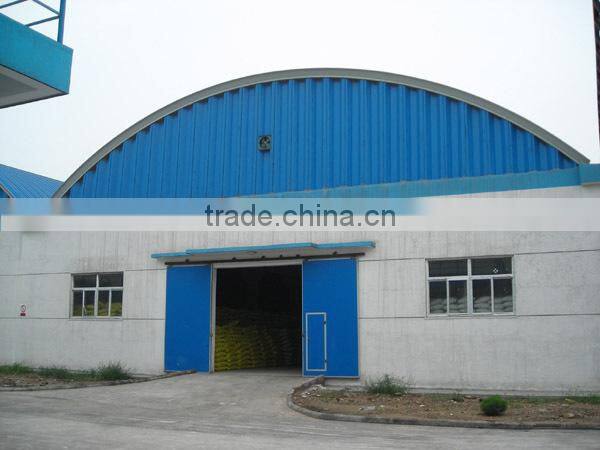

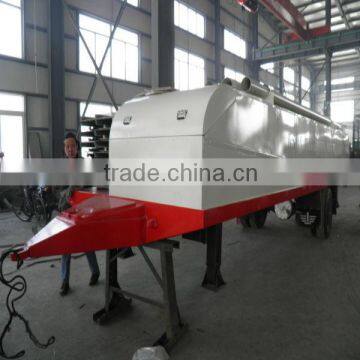

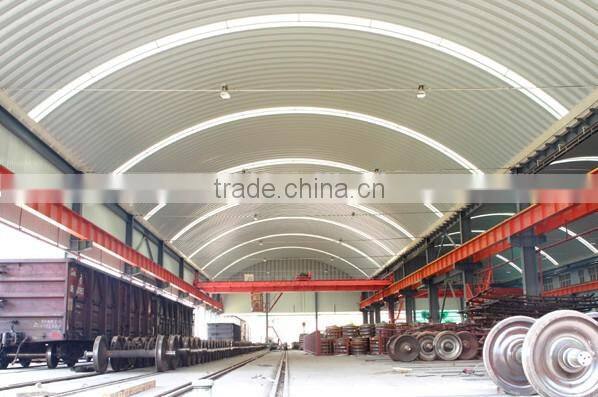

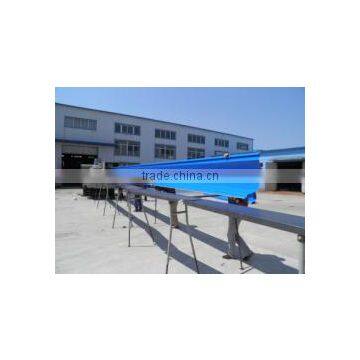

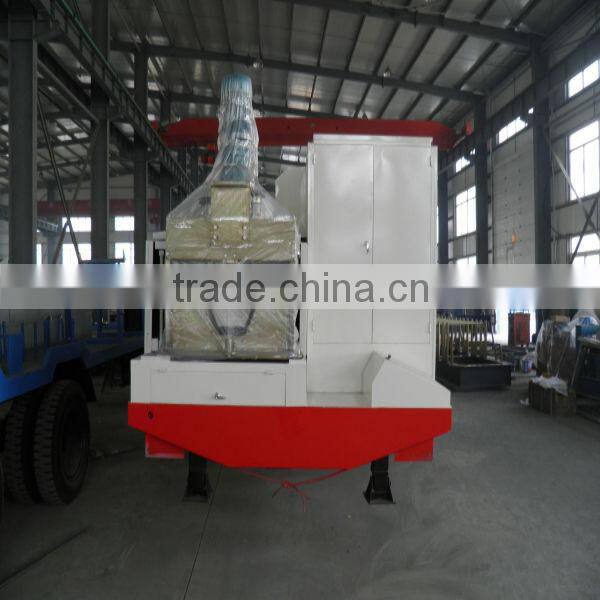

The pictures of automatic building roof forming machine
