US$ 40,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
PRO
Model Number:
PRO-SM40
Contact Supplier Request Quote Chat Now
Yingkou Professional Roll Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Liaoning, China
Brand Name PRO
Model Number PRO-SM40
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Storage steel Silo Spiral Roll Forming Machine

Detailed Images

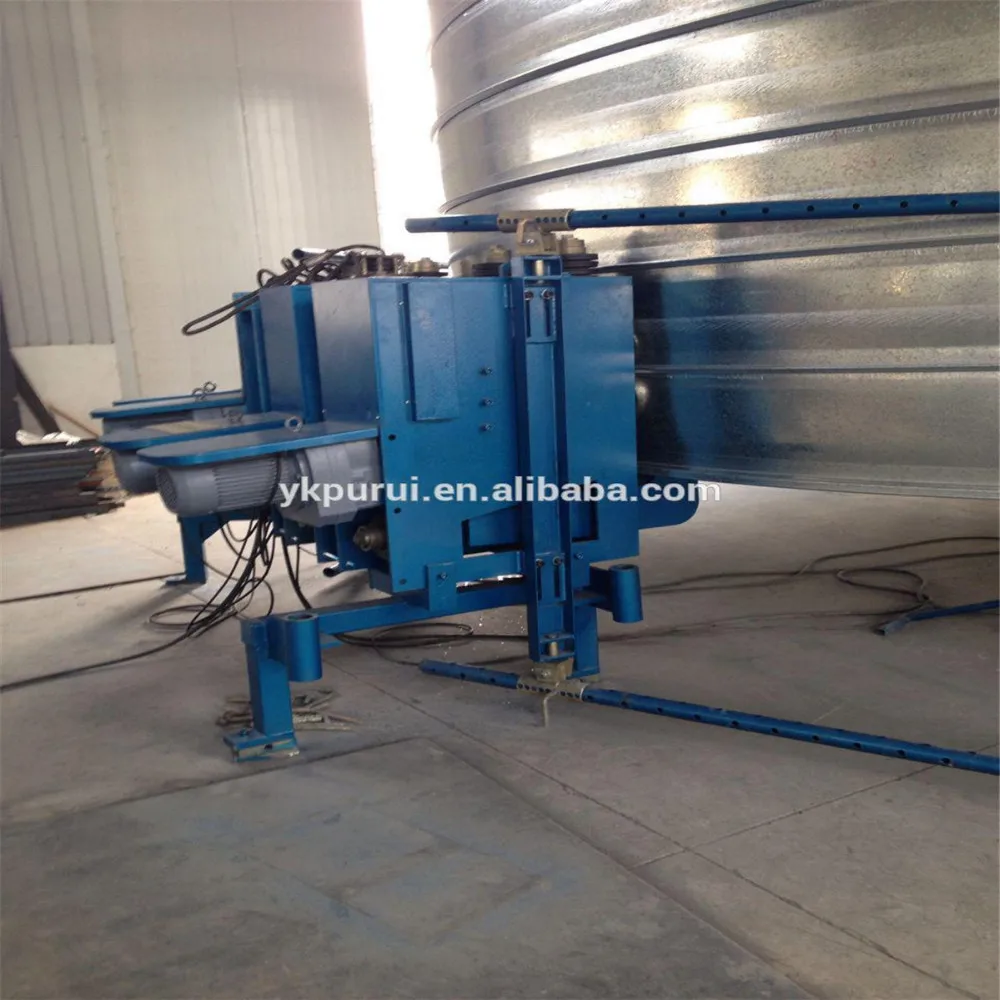

Working

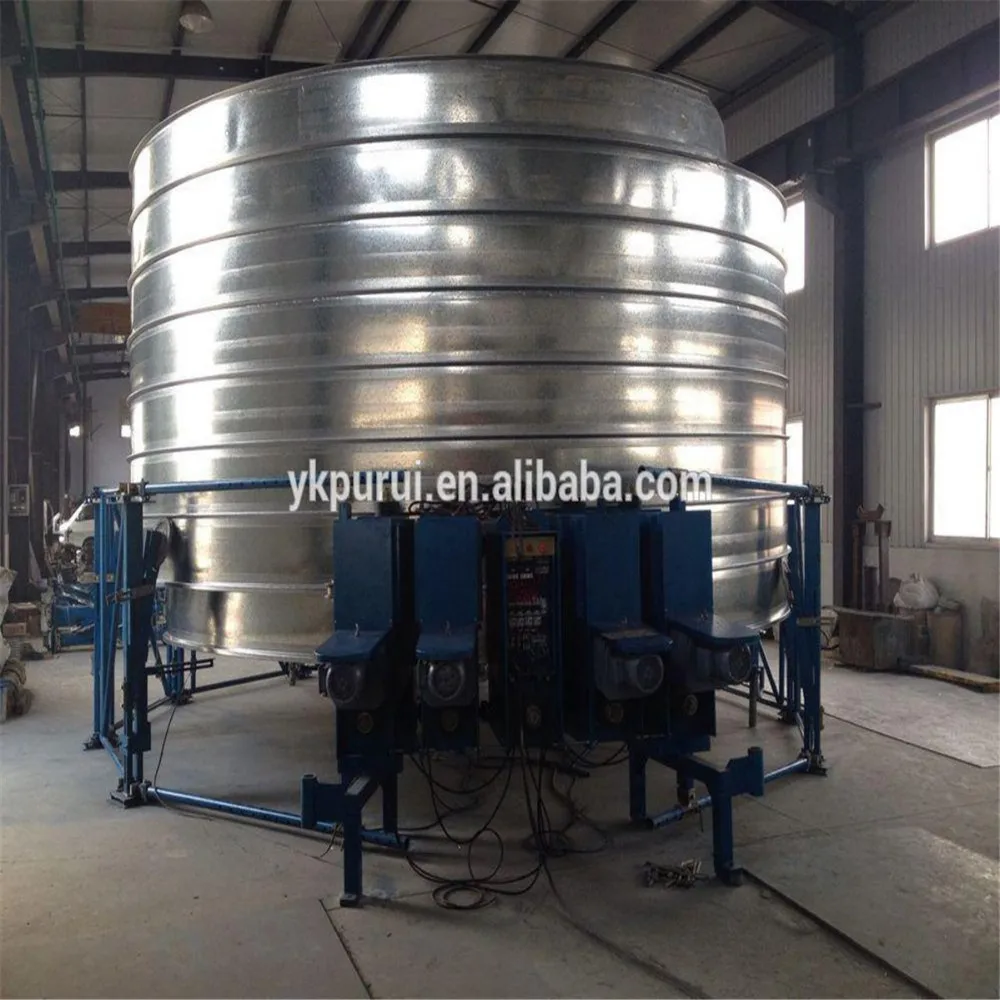

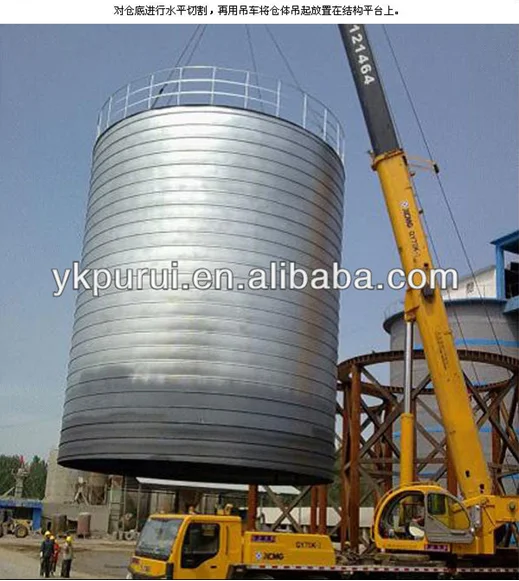

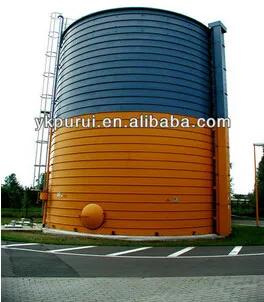

Project

Specifications
1.Electrical equipment power: 27kw
2.Raw material width: 495mm
3.Finished width: 350---370mm
4.Material thickness:2-4mm


Product description
Application:making circular metallic container
Working process:
Through the 5 forming procedures and 5 kind of steel strip forming merge suturing machine steel strip(thickness:2-4mm;495mm)will be merged forcedly and suture spirally to make cylinder with 4-50m of different diameters.
These steel cylinders are used widely:
1. Material shape (storage): granular material, powder material, liquid material

2. Industry: grain, feed brewing, oil, medicine, food, cement, water treatment

3.Concrete variety(storage): wheat, soybean, maize, sorghum wheat flour, bulk cement  fly-ash, sewage, water, chemical syrup
Features of Rx4.0m/m steel strip forming machine
1. Rx4.0m/m steel strip forming merging and suturing machine units is a new type of machine in our company. It is used to produce the Circular Metallic Container, developed from LIPP-SM40 forming machine, improved and holding
 the same function of LIPP-SM40 forming machine.

2.Rx4.0m/m steel strip forming merging and suturing machine units also have its own advantages, such as convenient to be repaired, avoid installing with different diameter, saving the time and cost of installing. This unit is produced by the Hi-strength Alloy steel, making the operating life longer.
Main technical parameter:
1. Constituent part:

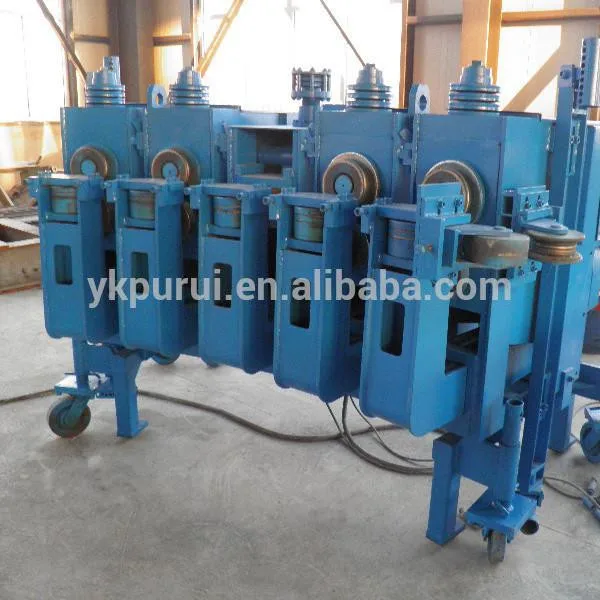

(1)Forming machine: making the material bend and initial machine-shaping, meanwhile, it will bend the material to the silo required radius of curvature.
(2)Bending machine: it will roll cooperate with good molding materials bender seaming together
(3)Load bearing support: Given the right diameter of silo. Lifting of the steel silo enclose the top of load bearing
support ollers, it can support the spiral rising silo.
(4)Decoiler: Moving steel coils that put on the decoiler, making steel coils can into forming machine successfully.
(5)Join frame: Joining the load bearing support, locking the required diameter of soil, making the load bearing support stable working.
2.Weight of machine part:
(1)Forming machine——3300 kg
(2)Bending machine——3550 kg
(3)Decoiler——230 kg
(4)Load bearing support——80kg
(5)Joint Frame——38kg
3
(1) Required thickness of raw material:
A,Galvanized sheet——1.5---3mm
B,Dark steel sheet——1.5---3mm
C,Chromated nickel steel sheet——1.5---2.5mm
D,Plastic coatings steel sheet——1.5---3mm
(2)Raw material width: 495mm
(3)Finished width: 350---370mm
(4)Diameter: 4m——25m
(5)Electrical equipment power: 9x3kw=27kw

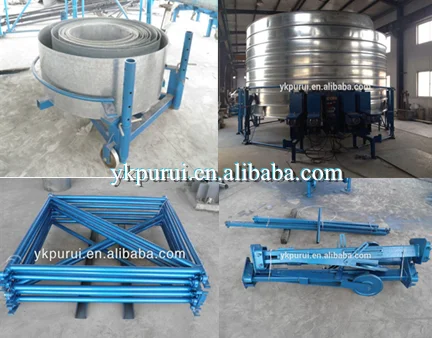

The complete equipment parts

Main technical parameter:
(1) Required thickness of raw material:
A,Galvanized sheet——2---4mm
B,Dark steel sheet——2---4mm
C,Chromated nickel steel sheet——2---3mm
D,Plastic coatings steel sheet——2---4mm
(2)Raw material width: 495mm
(3)Finished width: 350---370mm
(4)Diameter: 4m---30m

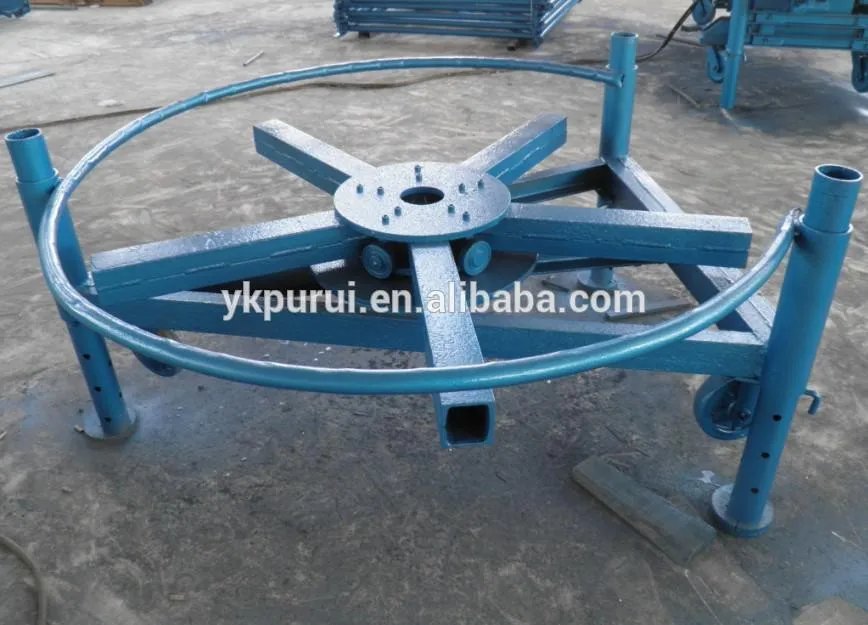

Decoiler:

Size: 1700x1500x900 (mm)

Weight: About 300kg
Application: moving steel coils that put on the decoiler,

making steel coils can into forming machine

successfully.

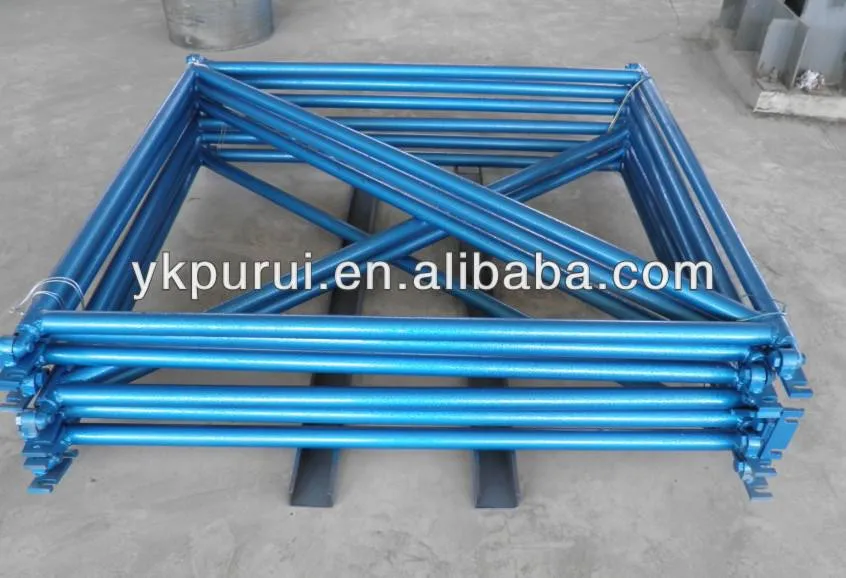

Joint frame

Size: 1600x1600x1500 (mm)
Weight: About 100kg/pcs
Application: Joining the load bearing support, locking the required diameter of soil, making the load bearing support stable working.

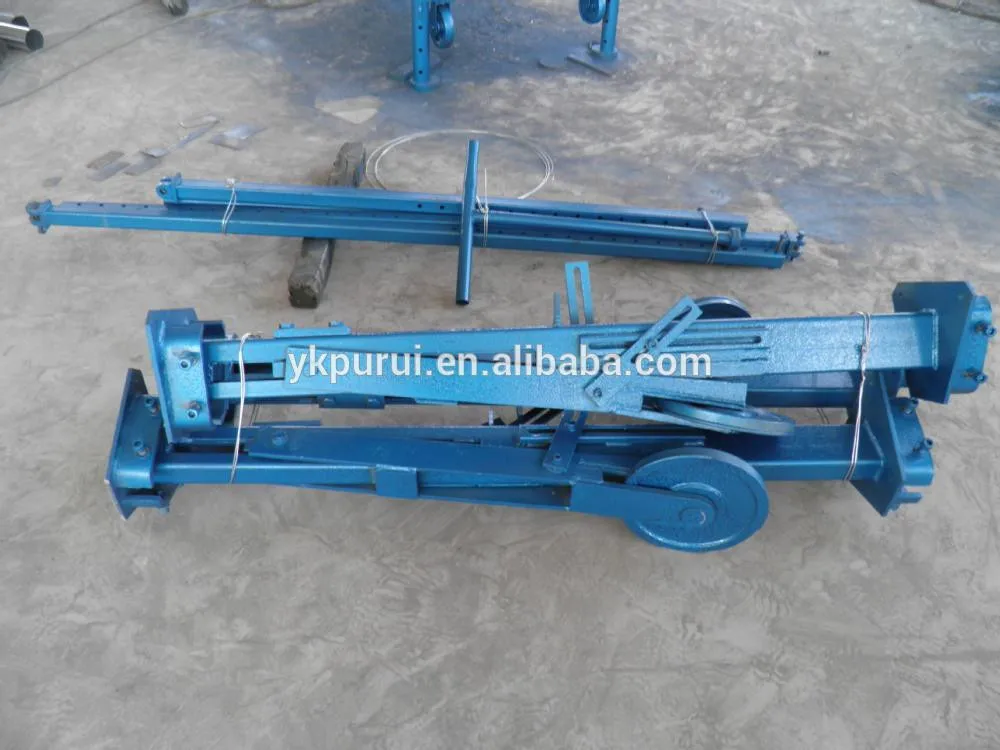

Load bearing support

Size: 1800x400x400 (mm)
Weight: About 50kg/pcs
Application: Given the right diameter of silo, support the spiral rising silo

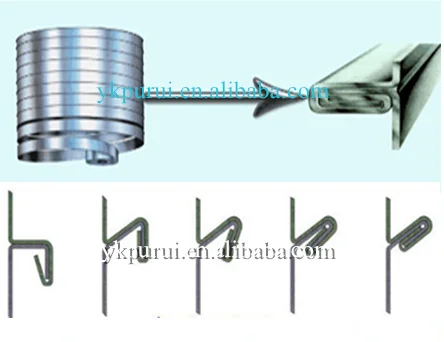

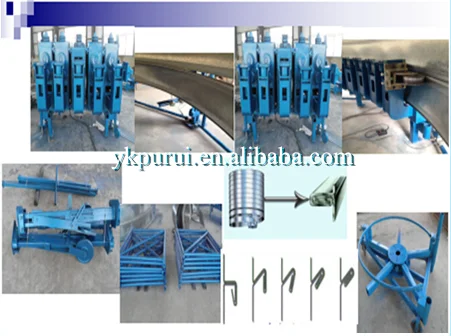

Bending process

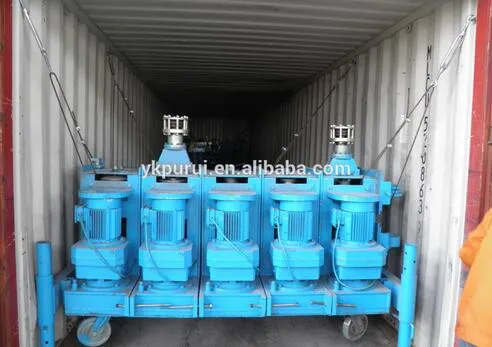

Packing & Delivery

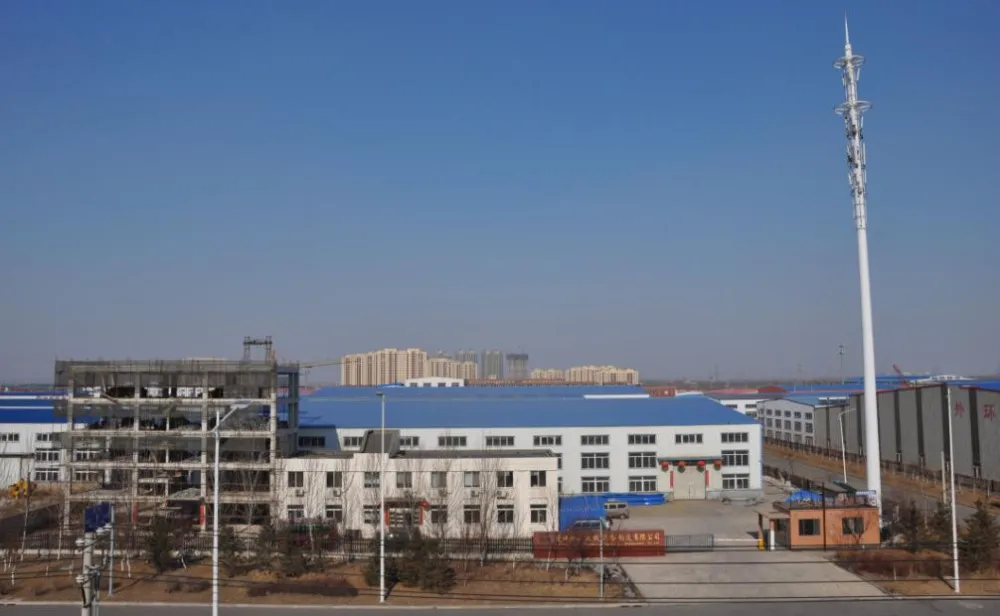

Our Company

YingKou Professional Roll Forming Machine Co., Ltd. main products are:Steel-drum production line,steel drum,PRO-240/PRO-120 Arch sheet roll forming machine,Multi-shape Building Machine,Screw-jointed Equipment,Arch Sheet Project,

MSBM Project,Screw-jointed Project,KR Series Roll Forming Machine,Glazed tile Roll Forming Machine,Double Layer
Roll Forming Machine,840 Corrugated Sheet Roll Forming Machine,Corrugated Roof Sheet Forming Machine,
Concealed Roof Sheet Forming Machine,Steel Decking Roll Forming Machine,C/Z/U/M Machine,Lifting Machine,
Unlimited Length Ridge Tile Forming Machine,Sheering Machine,Window and Door Taping machine,
Flat Sheet Bending Machine,Pipe Bender Machine,Bending Machine,Slitting Machine,Slitting Line,
SM-40 Spiral Steel Silo Forming Machine,PU Spray and Perfusion Equipment,Colored Steel Sheet Coils,etc.

Certifications
Our Service

Q: Do you have longlife after-sales service support?

A: Yes, our machine warranty period is 2 years, and support lifelong service.
B:We can offer 24 hours line service.

FAQ

Q: Are You the factory or trade company?
A:We are the factory,found in 2000,


Q: Can you make the machine according to my demand?
A: Yes. we have professional team and development personnel can plan to the suitable designs you need.


Q:What's the MOQ?
A:One set, more should be discount.

Q:How long does the warranty period?
A: 2 years.
