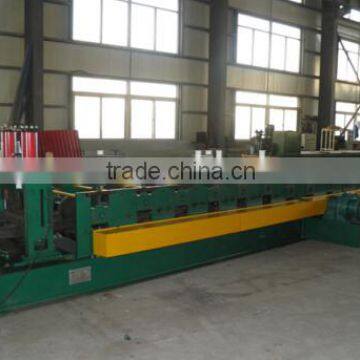

Floor Tile Steel Decking Making Machine Price

Floor Tile Steel Decking Making Machine Price thumbnail-1
Floor Tile Steel Decking Making Machine Price thumbnail-2
Floor Tile Steel Decking Making Machine Price photo-1
Floor Tile Steel Decking Making Machine Price photo-2
US$ 35,000 - 38,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Glaze
Contact Supplier Request Quote Chat Now
Yingkou Professional Roll Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Colored Glaze
Use Floor
Production Capacity 8-10m/min
Place of Origin Liaoning, China
Brand Name PRO
Model Number PRO-1220-900
Power(W) 5.5KW
Voltage 380V 50Hz 3phases
Dimension(L*W*H) 6500*1300*1100
Weight 5 Tons
Certification CE ISO
Warranty 2 Years
After-sales Service Provided Engineers available to service machinery overseas
Product Description
De-coiler：
Passive open the coil，manual expansion
Capability of de-coiler:
5T
Frame of machine:
welded with 400H beam steel
Form of guide feeding:
side roller type
Machine form:
wallboard chain transmission
Wallboard thickness :
20mm(not including cutting time)
The diameter of main shaft：
Ø90mm
Chain:
2 inch
Power of main motor：
11kw×2
Forming speed：
8-12m/min
Roller station：
28 steps
Material of roller：
superior 45# steel forging, thermal refining
The surface of roller coating hard chromium quenching:
0.05mm
Power of hydraulic motor:
5.5kw
Hydraulic station pressure:
20Mpa
Cutting type:
hydraulic cutting ,guide column cutting head
Cutting type:
no limit cutting,Cut-to-length error≤±2mm
Electric control system:
whole machine adopts PLC (Panasonic)touch screen,15kw frequency control
Machine size:
 9000x1000x1200(mm)

Equipment configuration

Feeding device , transmission, main machine and forming roller (including guide table), cutting (after roll forming) device, hydraulic system, electric control system, run out table, etc. Main rack of the machine is processed on the planer type milling machine
Technological process figure


Detailed Images
Packing & Delivery

Delivery time: 30 working days since receiving buyer's 30% down payment

Payment term: T/T( 30%TT in advanced, 70%TT before the machine shipped).

Guarantee period: 13 months since the date of B/L.
