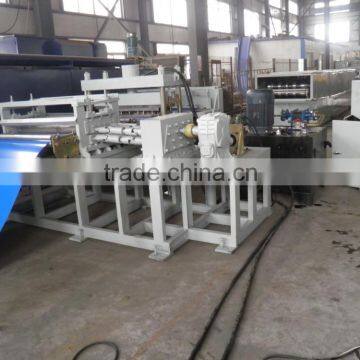

Professional CNC Bolt-joint Building Producing Line
- Profile of PR-1000-680
- Main parameters
1. Dimension : 10000mm×1500mm×1500mm
2. Weight : Around 8 T
3. Shearing material : 12CrMoV
4. Shearing type : Mechanical
5. Total motor power : 25KW
6. Main motor : 7.5KW
7. Decoiler motor : 3.0KW
8. Leveling machine motor : 4.0KW
9. Shearing machine motor : 3.0KW
10. Hydraulic station power : 7.5KW
11. Roller Material : 45# high-quality steel (Standard), quenched HRC 55~65, hard chrome plating.
12. Shaft Material : 45# high-quality steel, galvanized
- Technological process
Loading (load & expand galvanized coil on decoiler) Feeding & Leveling (prepare flat galvanized sheet for punching) Edge-punching & Ends-punching on flat galvanized sheet Shearing punched sheet Roll forming sheared sheet Bending Roll formed sheet
l Step-by-step construction
- Arch roof screw-joint project in Professional company
Arch roof buildings Application
- Commercial&Industrial:
All Steel Metal Buildings for Industry & Manufacturing
Retail Stores
Steel Warehouses
Metal Buildings for Auto Body & Repair Shops
Steel Buildings for Auto Body & Repair Shops
Steel Buildings for the Trucking Industry
Airplane Hangars
- Arch Buildings:
Arch Style Arch Buildings for Material & Equipment Storage
Arch Buildings for Military Barracks & Housing
Fire & Emergency Service Facilities
Public Safety Buildings
Indoor Skating Rinks
Indoor Softball
Gymnasiums & Recreation Buildings
School Buildings
Welcome to visit professional company for inspection!
