High Yield of 3E's Used tire shredder machine, for sale
- 400 Set / Sets per Month
- Guangzhou
- T/T
Product Details
Condition: | New | Type: | Other, tire shredder machine, tire shredder machine | Place of Origin: | Guangdong, China |
Brand Name: | 3E tire shredder machine | Model Number: | GL40100 | Voltage: | 37+37 kw |
Power(W): | 37+37 kw | Dimension(L*W*H): | 3334*1866*2670 mm | Weight: | 6500 kg |
Certification: | CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Tire Shredder, fit for shredding large and hard objects, such as steel/plastic/iron/Aluminum ; Have CE Certificate.

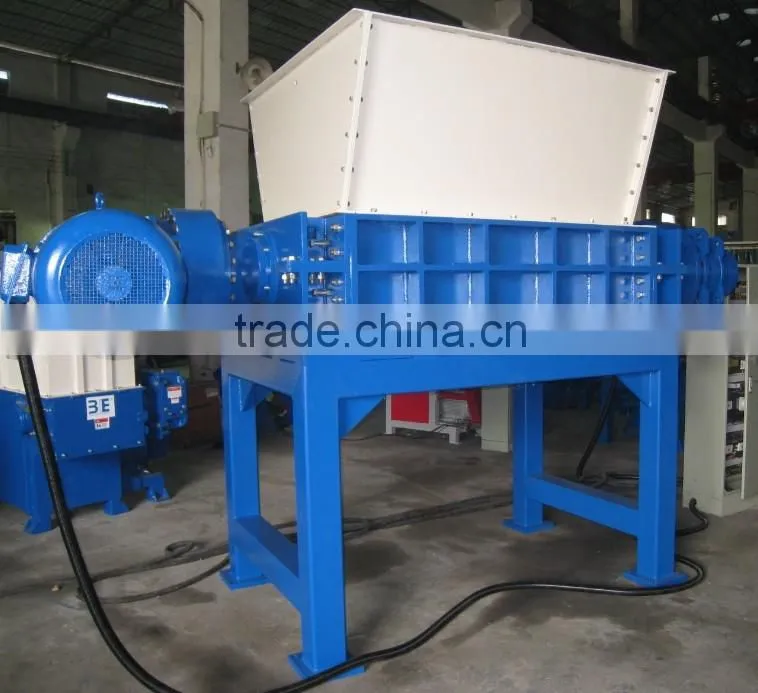

Tire shredder machine :
The GL series shredders have been designed for a wide array of applications and industries, suitable for shredding solid material such as e-waste, metal, wood, plastic, scrap tires, packaging barrel, pallets, etc.Depending on input material and the following process the shredded material can be used directly or go into the next step of size reduction.It is widely used in industry waste recycling, medical recycling, electronic recycling, pallet recycling, municipal solid waste recycling, plastic recycling, tire recycling, papermaking industry and etc.
3E's series tire shredder has two rotors built into the machine that rotate at low speeds, high torque and low noise.Adopt sienmens logo microcomputer control system with function of start, stop, automatic reverse sensors to protect the machine against over loading and jamming.
Tire shredder machine (GL40100) Application:
The shredder is suitable for crushing the big solid material like television, washing machine, shell of refrigerator, big size pipe, pipe fittings, forklift splint, tyres, packing barrel, aluminum, copper and steel less than 5mm.
Specifications:
Model | GL40100 | GL40130 | GL40160 |
Item | |||
DimensionL/W/H(mm) | 3334×1866×2670 | 3716×2234×2670 | 4674×1770×3765 |
Cutting chamber C/D(mm) | 984×948 | 1324×948 | 1624×948 |
Rotor Diameter(mm) | φ514 | φ514 | φ514 |
Blade quantity (pcs) | 20 | 26 | 32 |
Blades thickness (mm) | 50 | 50 | 50 |
Main Motor Power(kw) | 37+37 | 45+45 | 45+45 |
Weight(kg) | 6500 | 8700 | 9200 |
Our Service
1. Pre-sale support
3E Machinery consists of experienced specialists, we will offer a suitable solution according client’s requirement in time.
On-site inspection
2. After-sale service
3E’s skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a 3E technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
3E holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.
3. Technical support
3E provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
Regular return visit
Our Products
Recycling Machine
Waste Material Recycling Solutions
Certification
We awarded 36 utility model patents, 1 invention patent and 2 design patent.
Company Profile
3E Group is an integrated company specialized in developing, manufacturing, distributing and providing recycling machinery solutions. Our main entity “ Guangzhou 3E Machinery CO. Ltd” founded in 2003, has currently become focusing on “Shredding” and “Recycling industry” modern enterprise.
Technology is the core-competitiveness of 3E Group, we are active in the recycling market and keep cooperating with well-known enterprises in Europe and the USA. Meanwhile, 3E Group keeps on improving and innovating, so far, we awarded 18utility model patents and 3 invention patents.
“Efficient Economical & Environmental” is the traditional idea of 3E Group. With its own intellectual property and solid technological team, our products have been already sold to over 90 regions and countries which include the USA, Europe, Australia, Southeast Asia, Latin America, and Middle East.
