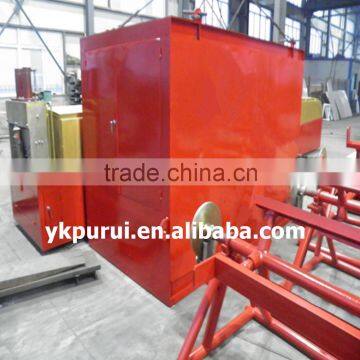

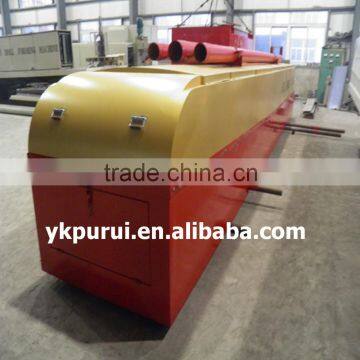

China ProABMUBM K Style Arch Roof Building Machine
Panel profile:
Arch Panel
Rollers
Arching bending
Hydraulic cutting

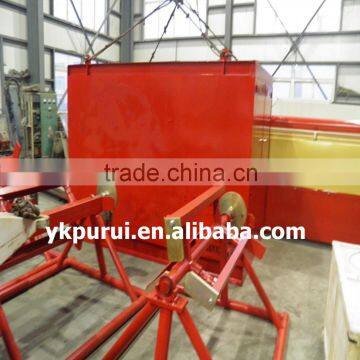

Decoiler
Main parameter:
Technical Parameter of Arch Roof Machine | |
Dimension | 8900mm X 2230mm X 2300mm (Single axle & 4 tires) |
Total Weight | About 8Ton |
Bending Leaf | 10mm thickness, processed by CNC |
Cutting blade | 12CrMoV material, Heat treatment |
Cutting type | Mechanical Cutting |
Forming type | Roll-formed and length-set cutting. |
Total motor power | 19.7KW |
Main Motor Power | 7.5KW |
Bending Power | 3.0KW+1.5KW x 2 |
Cutting Power | 4.0KW |
Seaming Power | 1.1KW+1.1KW |
Roller Material | 45# high-quality steel, quenched HRC 55~65, hard chrome plating. |
Shaft Material | 45# high-quality steel, galvanized |
Bearing | Made in Harbin |
Stand of molding | 13+1 |
Rolling material width | Feeding width :914mm |
Effective width : 610mm | |
Using rate | 66.7% |
Thickness | 0.8-1.5mm |
Working Speed | 15m/min |
Bending Part | 13m/min |
Seaming | 16m/min |
Suitable width | 12~42m |
De-coiler | Inner-diameter of coil : 450mm ~ 650mm |
| Max width of coil : 914mm ~ 934mm |
| Load : 10Ton |
Suitable panel
Project
Type list
Model | Feeding width (mm) | Effective width (mm) | Depth of groove (mm) | Utilization ratio | Thickness of steel coil (mm) | Largest span (m) |
BH-600-305 | 600 | 305 | 109 | 50.8% | 0.6-1.5 | 28 |
BH-600-300 | 600 | 300 | 100 | 50% | 0.6-1.5 | 30 |
BH-914-400 | 914 | 400 | 210 | 43.7% | 0.6-1.5 | 40 |
BH-914-610 | 914 | 610 | 203 | 66.7% | 0.6-1.5 | 38 |
BH-914-650 | 914 | 650 | 181 | 71.1% | 0.6-1.5 | 26 |
BH-914-700 | 914 | 700 | 123 | 76.5% | 0.6-1.5 | 2 |
BH-914-750 | 914 | 750 | 180 | 82% | 0.6-1.5 | 14 |
BH-1000-610 | 1000 | 610 | 243 | 61% | 0.6-1.5 | 42 |
BH-1000-680 | 1000 | 680 | 223 | 68% | 0.6-1.5 | 38 |
BH-1000-700 | 1000 | 700 | 175 | 70% | 0.6-1.5 | 30 |
BH-1000-750 | 1000 | 750 | 138 | 75% | 0.6-1.5 | 24 |
BH-1000-800 | 1000 | 800 | 114 | 80% | 0.6-1.5 | 18 |
BH-1200-800 | 1200 | 800 | 265 | 66.7% | 0.6-1.5 | 42 |
BH-1220-800 | 1220 | 800 | 277 | 65.5% | 0.6-1.5 | 45 |
BH-1250-800 | 1250 | 800 | 320 | 64% | 0.6-1.5 | 50 |
Packaging&shipping:
Naked by vessel 1*40HQ
Company information:
Q: Are You the factory or trade company?
A:We are the factory,found in 2000,
Q: Can you make the machine according to my demand?
A: Yes. we have professional team and development personnel can plan to the suitable designs you need.
Q:What's the MOQ?
A:One set, more should be discount.
Q:What's the type of payment?
A: 30% T/T in advance,70% T/T before shipment
Q:Why we choose you of all the same industry?
A:Our company have competitive quality and price in the whole industry,welcome to you visit any time.
Q: Do you have longlife after-sales service support?
A: Yes, our machine warranty period is 13 months, and support lifelong service.
B:We can offer 24 hours line service.
