Arch Roof Roll Forming Machine

Arch Roof Roll Forming Machine thumbnail-1
Arch Roof Roll Forming Machine thumbnail-2
Arch Roof Roll Forming Machine thumbnail-3
Arch Roof Roll Forming Machine photo-1

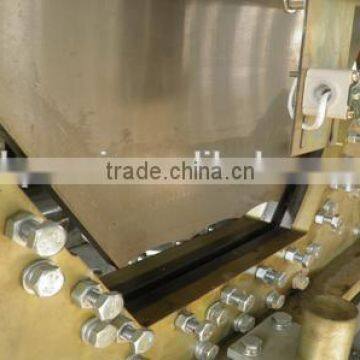

Arch Roof Roll Forming Machine photo-2

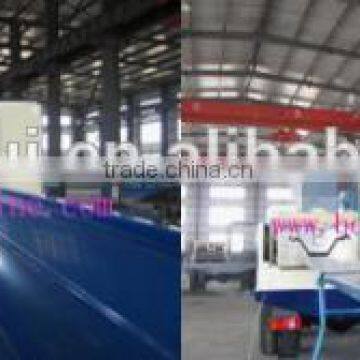

Arch Roof Roll Forming Machine photo-3
US$ 20,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Steel
Contact Supplier Request Quote Chat Now
Yingkou Professional Roll Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Colored Steel
Use Roof
Production Capacity 8-12m/min
Place of Origin Liaoning, China
Brand Name professional
Model Number 600-305
Power(W) 17.5KW
Voltage 380V or 220V
Dimension(L*W*H) 8900X2230X2300(mm)
Weight 10T
Certification CE ISO SGS
Warranty 13months
After-sales Service Provided Engineers available to service machinery overseas

PRO-240 Q span roll forming machine



  • Profile

 Arch roof roll forming machine








  • Main parameter
  1. Size: 8900mmX2230mmX2300mm (single axle & 4 tires)
  2. Total Weight: About 10 Ton
  3. Thickness of Bending Leaf: 10mm
  4. Cutting blade : 12CrMoV material, Heat treatment
  5. Cutting type: Mechanical Cutting Device
  6. Forming type: Roll-formed and length-set cutting.
  7. Material of rollers: 45# steel, quenched HRC 55~65, hard chrome plating.
  8. Material of shafts: 45# steel, galvanized
  9. Bearing: made in Harbin
  10. Step of molding: 13
  11. Rolling material: Feeding width : 600mm  Effective width : 305mm
  12. Using rate : 50.8%
  13. Thickness : 0.6-1.5mm
  14. Controlling System: Hydraulic motor, PLC, touch screen, encoder
  15. De-coiler: Coil Inner-diameter: 450mm ~ 650mm,
  16. Fixed Coil Max width: 600~620mm
  17. Load: 10Ton
  18. Generator: Capacity: 30KW/37.5KVA
  19. Rated Voltage : 380V
  • List of accessories (For Free)

  • Name

    Amount

    Usage

    Manual Un-coiler

    1

    Roll the sheets;Sheet roll supporter

    Sewing machine

    2

    Assembling the sheets

    Cradle

    16

    Plate supporter

    Leg of cradle

    15

    Supporter Cradle

    Small leg of cradle

    38

    Adjust the leg of cradle

    Fastening screw for leg

    46

    Fastening the legs

    Side cradle

    8

    Plate supporter

    Suspender

    3

    Lifting

    Pin of suspender

    2

    Connect the suspender

    Hanger

    4

    Lifting

    Clamp

    4

    Bait sheets

    Bearing(208#)

    4

    To drive the rollers

    Driving chains

    3(run)

    To roll the gears

    Chain links

    3

    To link the chain

    Half section

    3

    To link the chain

    Super pliers

    1

    Bait sheets

    Metal scissors

    1

    For cutting

    Wrench

    1

    For set screw

    Crank handle

    1

    Adjust height of landing leg

    Travel switch

    1(suit)

    Measure length of sheet automatically

    VCD

    1

    Showing how to operate the machine

    Showing how to do the project



  • Professional roof roll forming machine





    Yingkou Professional Roll Forming Machine Co., Ltd.is a professional manufacture of roll forming machine. We can instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied. Clients who purchase our equipments can create largest profit space.



    Our main products are: Steel-drum production line, Steel drum, PRO-240/PRO-120 Arch sheet roll forming machine, Multi-shape Building Machine, Screw-jointed Equipment, KR Series Roll Forming Machine,Glazed Tile Roll Forming Machine, Double Layer Roll Forming Machine, 840 Corrugated Sheet Roll Forming Machine,Corrugated Roof Sheet Forming Machine, Concealed Roof Sheet Forming Machine, Steel Decking Roll Forming Machine,C/Z/U/M Shaped Steel Purlin Forming Machine, Highway Guardrail Roll Forming Machine, Sandwich Panel Roll Forming Machine, Lifting Machine, Unlimited Length Ridge Tile Forming Machine, Sheering Machine, Window and Door Taping Machine, Flat Sheet Bending Machine, Pipe Bender Machine, Bending Machine, Slitting Machine, Slitting Line, SM-40 Spiral Steel Silo Forming Machine, PU Spray and Perfusion Equipment, Colored Steel Sheet Coils, etc.

  • Model list  of Q span roll forming machine

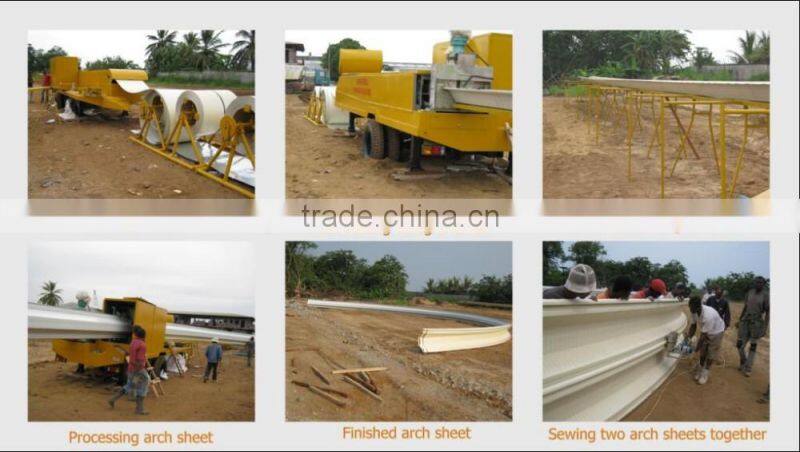

  • Professional span Projects

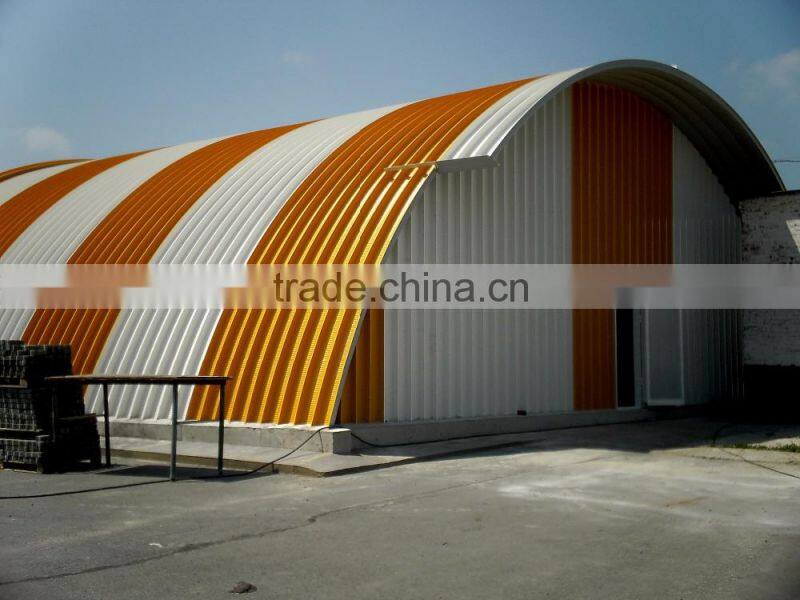

 Arch roof roll forming machine

Arch roof roll forming machine
