PROABMUBM Screw Joint CBM Profile Ached Tile Roll Forming Machine
Panel profile:
Arch Panel

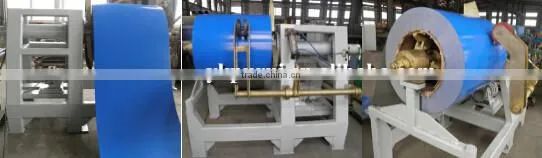

Decoiler:

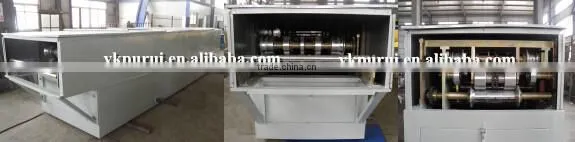

Roll forming rollers
1, Dimension: 6500*1400*1400(mm) Weight: 6 T
2, Motor power: 7.5KW
3, Roller Material: 45# high-quality steel, quenched HRC 55~65,
hard chrome plating.
4, Shaft Material : 65mm, 45# high-quality steel, galvanized
5, Stands of forming : 10
6, Feeding width : 1000mm
7, Effective width: 680mm
8, Rolling thickness: 0.6-1.5mm
9, Using rate : 68%

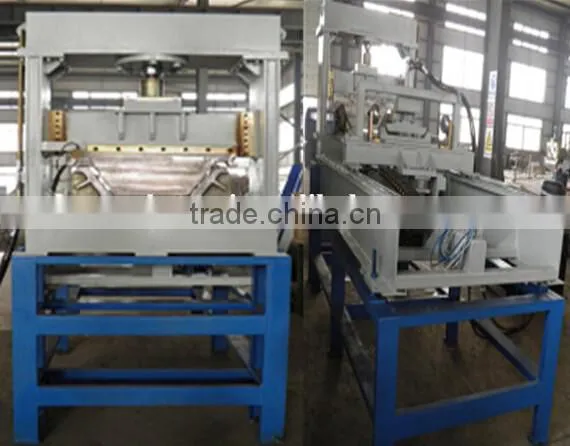

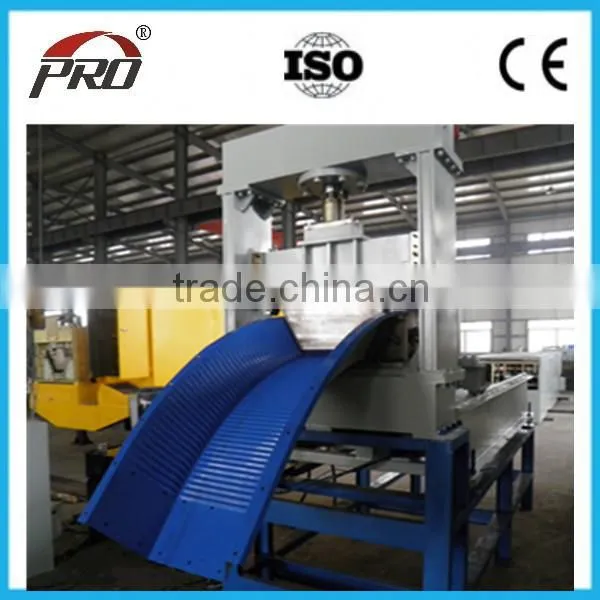

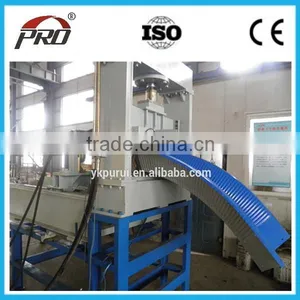

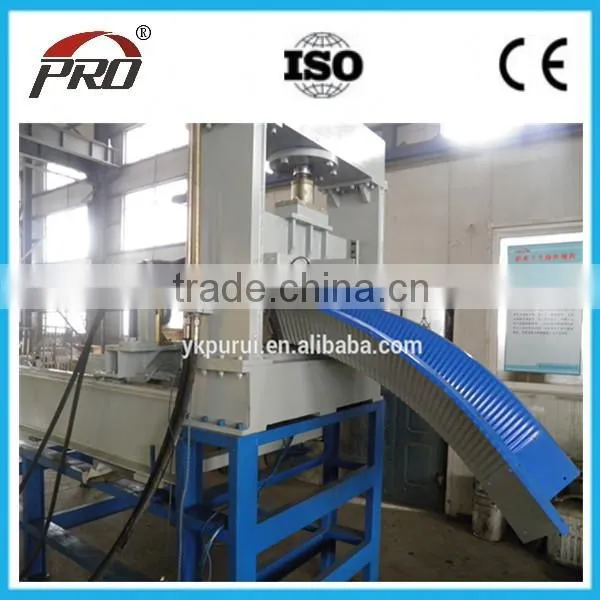

Arching bending parts
1, Dimension: 3500*1500*2600(mm) Weight: 2 T
2, Servo motor power: 1.5KW
1, Hydraulic station motor: 11KW
1, Hydraulic oil pump: gear pump, Pressure: <=16Mpa
5, Mold: 1 set (Pleat pressed)

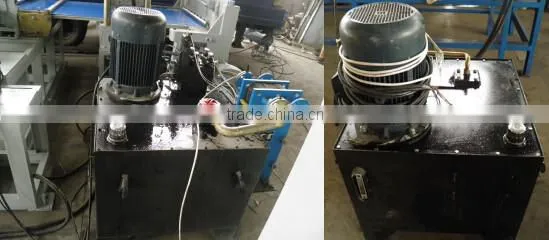

Hydraulic station

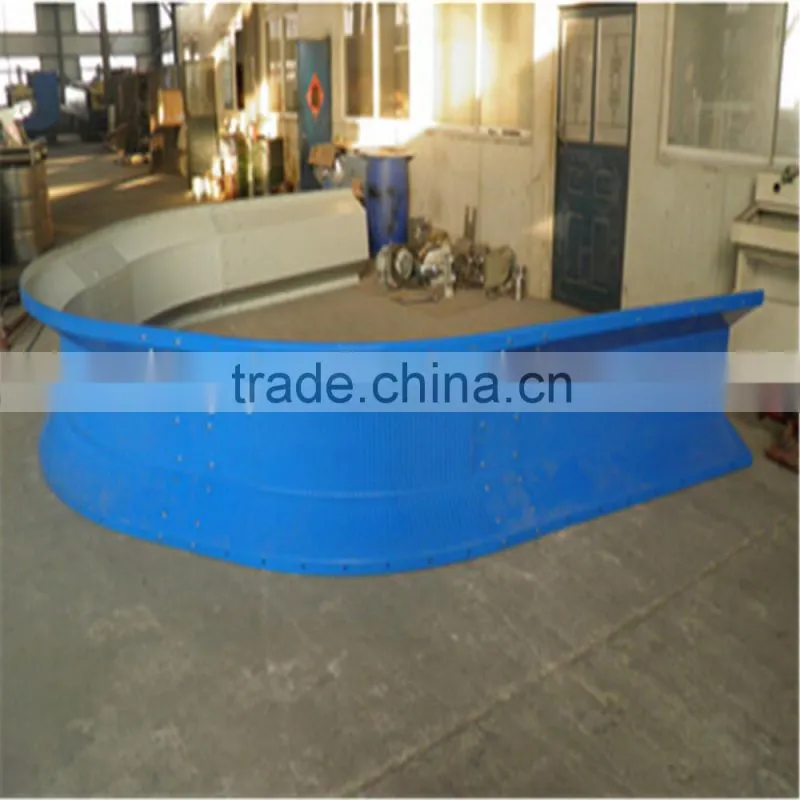

Multi-shape:

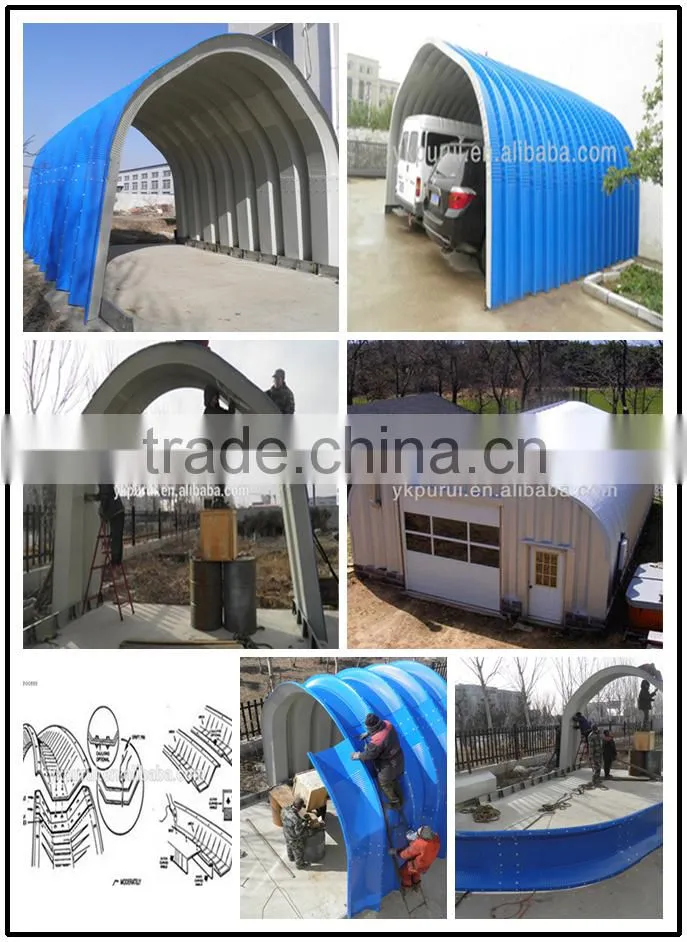

Installation Showing:
Main parameters:
1. Dimension : 10000mm×1500mm×1500mm
2. Weight : Around 8 T
3. Shearing material : 12CrMoV
4. Shearing type : Mechanical
5. Total motor power : 25KW
6. Main motor : 7.5KW
7. Decoiler motor : 3.0KW
8. Leveling machine motor : 4.0KW
9. Shearing machine motor : 3.0KW
10. Hydraulic station power : 7.5KW
11. Roller Material : 45# high-quality steel (Standard), quenched HRC 55~65, hard chrome plating.
12. Shaft Material : 45# high-quality steel, galvanized
Technological process
Loading (load & expand galvanized coil on decoiler)
Feeding & Leveling (prepare flat galvanized sheet for punching)
Edge-punching & Ends-punching on flat galvanized sheet for punching)
Edge-punching & Ends-punching on flat galvanized sheet
shearing punched sheet Roll forming sheared sheet
Bending Roll formed sheet
Features:
Screw-Joint Arch Building Project
Company information:
Our workshop
Sales Market Conditions
Q: Are You the factory or trade company?
A:We are the factory,found in 2000,
Q: Can you make the machine according to my demand?
A: Yes. we have professional team and development personnel can plan to the suitable designs you need.
Q:What's the MOQ?
A:One set, more should be discount.
Q:What's the type of payment?
A: 30% T/T in advance,70% T/T before shipment
Q:Why we choose you of all the same industry?
A:Our company have competitive quality and price in the whole industry,welcome to you visit any time.
Q: Do you have longlife after-sales service support?
A: Yes, our machine warranty period is 13 months, and support lifelong service.
B:We can offer 24 hours line service.
Our company Introduce
Main products are:Steel-drum production line,steel drum,PRO-240/PRO-120 Arch sheet roll forming machine,
Multi-shape Building Machine,Screw-jointed Equipment,Arch Sheet Project,MSBM Project,
Screw-jointed Project,KR Series Roll Forming Machine,Glazed tile Roll Forming Machine,Double Layer
Roll Forming Machine,840 Corrugated Sheet Roll Forming Machine,Corrugated Roof Sheet Forming Machine,
Concealed Roof Sheet Forming Machine,Steel Decking Roll Forming Machine,C/Z/U/M Machine,Lifting Machine,
Unlimited Length Ridge Tile Forming Machine,Sheering Machine,Window and Door Taping machine,
Flat Sheet Bending Machine,Pipe Bender Machine,Bending Machine,Slitting Machine,Slitting Line,
SM-40 Spiral Steel Silo Forming Machine,PU Spray and Perfusion Equipment,Colored Steel Sheet Coils,etc.
