ETCR9500B-Wireless High Voltage Current Transformation Ratio Tester
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Graigar
Model Number:
ETCR9500B
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ETCR040-High Accuracy Clamp AC Current SensorNegotiableMOQ: 1 Piece -
ETCR2100A+-Clamp Earth Resistance TesterNegotiableMOQ: 1 Piece
-
HOT SALE ! ETCR2000+-Clamp Earth Resistance TesterUS$ 100 - 200MOQ: 1 Piece
-
Portable Solar Film Transmission Meter LS160A Solar Film Tester Visible and Infrared Transmission ValuesUS$ 120 - 160MOQ: 1 Piece
-
LS160 Portable Solar Film Transmission Meter Solar Film TesterUS$ 90 - 140MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Graigar
Model Number
ETCR9500B
Measuring Range
0.1mA~1000A
Accuracy Class
±1%±3dgt
Supply Voltage
DC6V
Operating Temperature
-25℃~45℃; below 80%Rh
Dimensions
75mm*170mm*30mm
ETCR9500B-Wireless High Voltage Current Transformation Ratio Tester
PRODUCT DESCRIPTION
Introduction

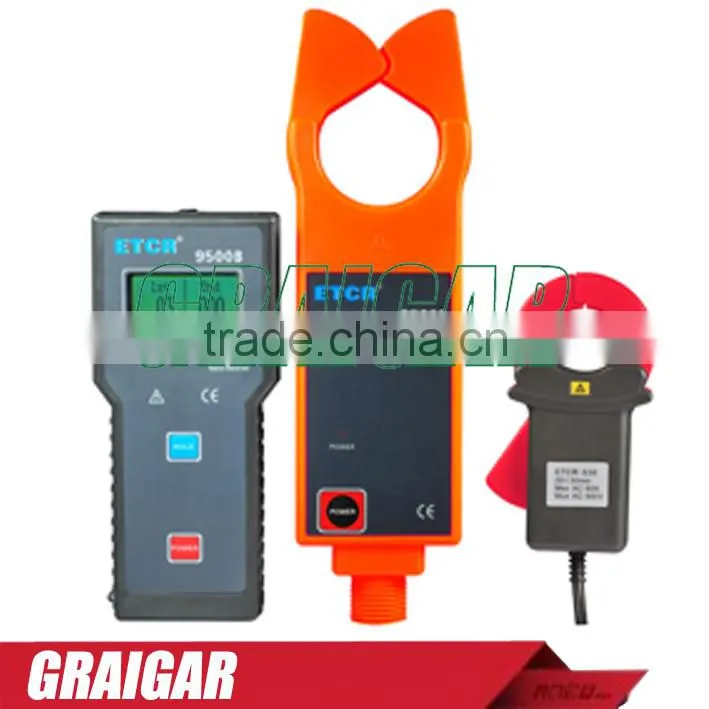

ETCR9500B Wireless High Voltage Current Transformation Ratio Tester breaks traditional structure, specially designed for high and low voltage first and secondary loop current, variable ratio, phase, polar, ratio difference, angle difference and current leakage test; apply the latest CT technology and mask digital integration technology, composed of special high-voltage clamp, low voltage clamp, host, high voltage insulation rod and monitoring software, etc; its wireless transmission test data can penetrate multiple building obstacles with a straight-line distance of 30 meters.
Monitoring software has online real-time monitoring and historical query function, with dynamic display, wave direction, variable ratio, frequency indication, with maximum, minimum, mean value indication; alarm setting and alarm indication functions, functions of historical data reading, access, saving, analysis, processing, sorting, fitting curve, report and printing.
High-voltage detector connected rod can be used in the measurement of high voltage line current, currents on both sides of transformer, variable ratio test, online current monitoring below 60KV; The special clamp ammeter can facilitate clamp to exit the tested lead by pressing or pulling back insulation bar, which is time efficient and convenient; widely used in power plant, substation, industrial and mining enterprise, inspection station, electrician maintenance department for current sensing, power audit and field working.
.Technical Specifications
Function |
High and low voltage first and secondary loop current, variable ratio, polarity, phase difference, current leakage online test; current on both sides of transformer, variable ratio online monitoring |
Power supply |
DC6V alkaline dry battery (1.5V AAA×4), continuous working for 30 hours |
Test mode |
Clamp CT |
Transmission mode |
Wireless transmission, the maximum distance of straight line transmission is about 30m |
Display mode |
LCD: 128dots×64dots; blue backlight function |
LCD dimension |
Display domain: 44mm×27mm |
Meter dimension |
Host: width, height, thickness75mm×170mm×30mm
High voltage clamp: width, height, thickness 76mm×255mm×31mm
Low voltage clamp: width, height, thickness 63mm×160mm×23mm
|
Clamp dimension |
High voltage clamp: φ48mm
Low voltage clamp: φ30mm
|
Sampling rate |
About 2 times/second |
Measurement scope |
High voltage clamp: 0.1mA-1000A
Low voltage clamp: 0.01mA-10A
|
Resolution |
High voltage clamp: 0.1mA
Low voltage clamp: 0.01mA
|
Shift |
Automatic shift |
|
One loop testing accuracy
23C±3C, below 80%RH
|
0.1mA-10.0A: ±1%±3dgt |
| 10.0A-49.9A: ±1.5%±5dgt | |
| 50.0A-199.9A: ±2%±5dgt | |
| 200A-600A: ±3%±5dgt | |
| 601A-1000A: ±4%±5dgt | |
Secondary loop testing accuracy |
0.01mA-10A: ±1%±3dgt (23C±3C, below 70%RH) |
Variable ratio |
3 variable ratio displays: (first and secondary loop real-time current measurement ; calculate the variable ratio at 5A of secondary loop and 10kV-YY of transformer 10kV/380V); the maximum transformation ratio is 1:10 million (1.0K7) |
Data storage |
3000 sets, press key HOLD to maintain data and automatically numbered storage (data won’t lose in power off or battery replacement) |
Line voltage |
Below 60KV line test (with 5 insulation rods operation) |
Data retention |
Press key HOLD key to maintain data, shown by HOLD , and then press HOLDto cancel maintaining. |
Data access |
Enter data access mode by pressing key HOLD+ key POWER |
Overflow display |
Over-range overflow function: shown in “OL A” |
No signal indication |
“No signal” will be shown when the host fails to receive signal |
Automatic shutdown |
15 minutes after boot, meter automatically shuts down |
Battery voltage |
When battery voltage is lower than 4.8V, battery voltage is shown in low symbol to remind battery replacement |
Meter mass |
Host: 240 g (with battery)
High voltage clamp: 335g (with battery)
Low voltage clamp: 170g (optional)
the total mass of meter: 2.5kg (including insulation rod and battery)
|
External disturbance |
No particularly strong electromagnetic field; without 433MHz and 315 MHz interference |
Working temperature and humidity |
-25C-45C; below 80%Rh |
Storage temperature and humidity |
-10C-60C; below 70%Rh |
Insulation rod dimension |

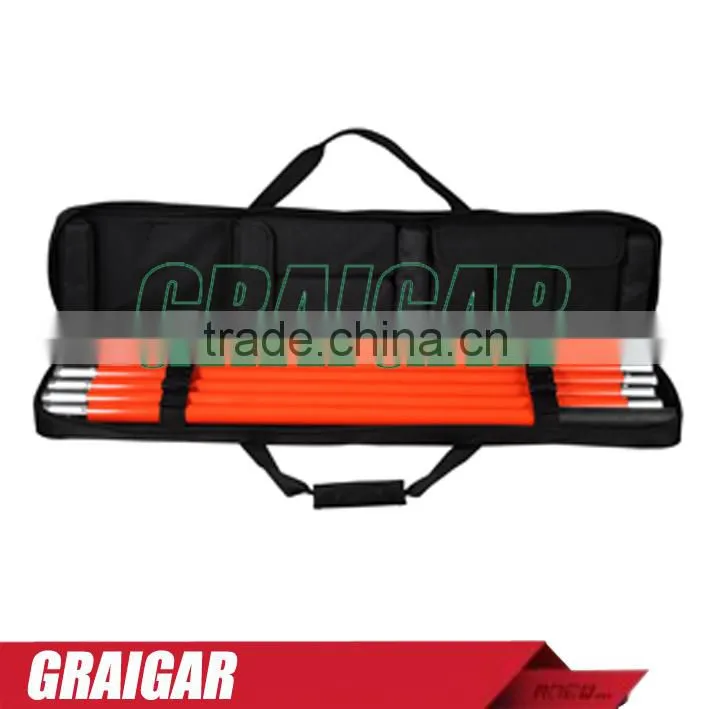

φ32mm, 1m/piece (5pieces,standard configuration) |
Low voltage current clamp lead |
Standard 2m |
Insulation strength |
High voltage clamp: AC100kV/rms (between the 5th insulation rod and high voltage current clamp core)
Host and low voltage clamp: AC1000V/rms
|
Structure |
Anti-drip type II (high voltage detector) |
Accessories |
Clamp: 1 piece; receiver: 1 piece; current clamp: 1 piece; disc: 1 piece; RS232 communication wire: 1 piece; meter box: 1 piece; insulation rod (1m): 5 pieces; battery (alkaline battery AAA): 8 pieces |

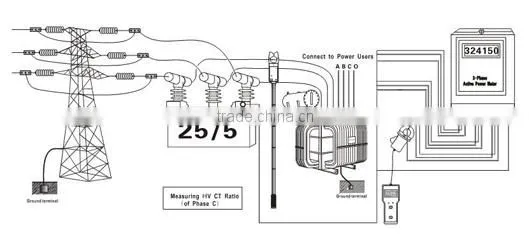

Field Application
