Grid Scan Concrete Reinforcement Detector /JY-8S Concrete Rebar Locator Scanner Covermeter/ Ferromagnetic Objects Finder
US$ 500 - 650
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
JIANGKANG
Model Number:
JY-8S
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WSB-1 Brand New Handheld Whiteness Meter Protable Leucometer Whiteness Degree Measuring InstrumentUS$ 230 - 300MOQ: 1 Piece -
ST805C Passive Optical Network PON Fiber Power MeterUS$ 180 - 240MOQ: 1 Piece
-
EM0328 Microwave Leak DetectorUS$ 15 - 30MOQ: 5 Pieces
-
High Quality Hand-held Electrostatic Field Meter FMX-003 Electrostatic TesterUS$ 280 - 350MOQ: 1 Piece
-
2014 NEW Dash Cam Novatek HDMI K6000 Car DVR 1080P With G-Sensor Night Vision Car Camera Recorder 2.7" HD LTPS LCD ScreenUS$ 17 - 30MOQ: 1 Piece
Place of Origin
Beijing, China
Brand Name
JIANGKANG
Model Number
JY-8S
Power
Electronic
Usage
Auto Testing Machine
Specifications
Grid Scan Concrete Reinforcement Detector /JY-8S Concrete Rebar Locator Scanner Covermeter/ Ferromagnetic Objects Finder
JY-8S
Compact, lightweight JY-8S rebar locator using nondestructive techniques of electromagnetic induction
Reinforced concrete in order to detect and analyze the position . Can accurately locate reinforcing bars and steel mesh ,
Can measure the thickness of the protective layer of concrete , and to determine the diameter of reinforcement bars ,The product is equipped with English instructions, simple operation
The main features
Detect and locate reinforcing bars and other metal construction equipment
Measuring the thickness of the protective layer and the diameter of the concrete reinforcing bars
Compact, easy to use indicator has a backlit display
Use voice alarm and signal to determine the reinforcement bar shows the location of the largest
By instrumental analysis software to transfer data to a PC .
Use
After the removal of the concrete cover template for acceptance
Positioning reinforced to avoid them when drilling
Provide the necessary data ( location , cover, reinforcement diameter )
Measure the depth of concrete cover
Quality assurance in mass production of precast concrete elements .
Display: LCD display with backlight display,
Interface : RS232 interface or a USB adapter
Battery: 6 1.5V battery , 30 hours of continuous operation ,

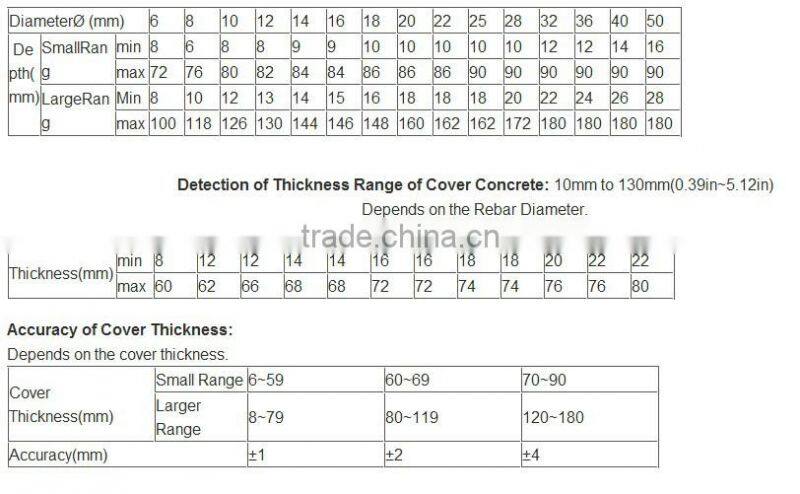

Protective layer thickness measurement ( nominal ) range:
The first range ( nominal ) range : 6mm ~ 90 mm;
The second range ( nominal ) range : 7mm ~ 180mm;
Power Source: 6pieces AA (R6P/LR6)1.5V dry batteries
Battery Life: 32 hours continuous operation
Memory Capacity: Can store data for 1000 objects, 256 measured values for one object max
Data Transfer: 1 USB port
Analysis software: Based on Microsoft Windows, can export Detect Report in Microsoft Office Word format automatically.
Operating Weight (including probe): 0.75kg(1.7lb)
Weight including Carrying Case: 4.5kg(10lb)
Operating Temperature Range: -10°C to 40°(14°F to 104°F)
Battery Life: 32 hours continuous operation
Memory Capacity: Can store data for 1000 objects, 256 measured values for one object max
Data Transfer: 1 USB port
Analysis software: Based on Microsoft Windows, can export Detect Report in Microsoft Office Word format automatically.
Operating Weight (including probe): 0.75kg(1.7lb)
Weight including Carrying Case: 4.5kg(10lb)
Operating Temperature Range: -10°C to 40°(14°F to 104°F)
