Help CenterOscilloscope DC AC Current Probe Range 50mA-100A Peak Bandwidth -3dB DC-100KHz BNC Connector CP8100L
Related Products
-
CP3000/CP4000 Series High Frequency Current ProbeUS$ 1,300 - 1,500MOQ: 1 Piece -
CP4040 High Frequency Current Probe (DC/AC) (500A/5MHz Double Range Selection)US$ 2,300 - 2,500MOQ: 1 Piece
-
CP3030 High Frequency Current Probe (DC/AC) (150A/15MHz Double Range Selection)US$ 1,150 - 1,500MOQ: 1 Piece
-
CP3120 AC/DC 30A/70MHz High Frequency Current Probe Compatible With Teck Series Current ProbeUS$ 1,150 - 1,500MOQ: 1 Piece
-
CP8300A Perfectly Compatible With the Current Probe Tektronix 300A OscilloscopeUS$ 2,800 - 3,200MOQ: 1 Piece
The CP8100L is a high performance current probe a capable of simultaneous measurement of DC and AC. Measurement of current is from 50mA to 100A peak, the bandwidth reaches 100KHz (-3dB). Two range switching (10A file and 100A file), convenient switching low current and high current measurement. With the power indicator light and overload indication lamp, and the use of battery power, makes the measurement more convenient. BNC output interface, convenient connection and oscilloscope and other equipment. Usually used for frequency measurement, motor drive, power supply, avionics etc..
Electrical specifications
Measuring conditions :23℃±5℃,20~75%RH, with conductor central in the loop.
|
Range |
50mA~10A Peak |
1A~100A Peak |
Current Transfer Ratio |
100mV/A |
10mV/A |
Amplitude accuracy |
3%±5mV |

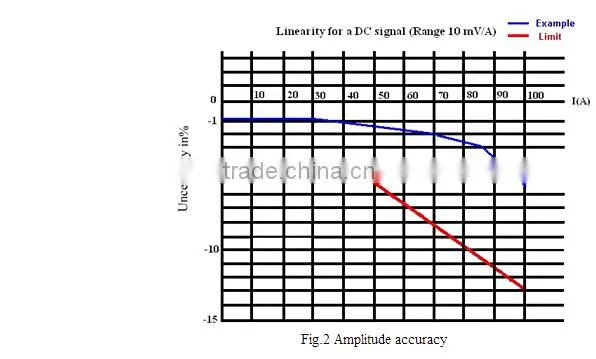

500m~40A Peak:4%±500uV;40~100A Peak:see Fig.2 |
BW(-3dB) |

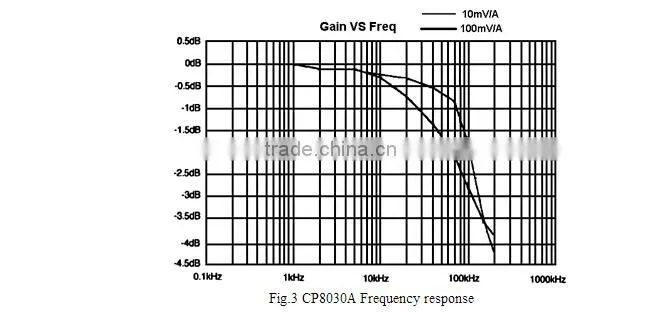

DC~100KHz (see Fig.3) |
|
Phase shift |
DC~65Hz:<1.5° |
DC~65Hz:<1° |
Phase shift characteristic |

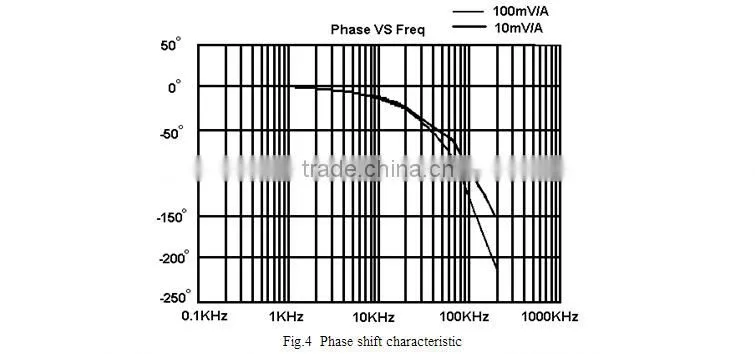

see Fig.4 |
|
Load impedance |
≥1MΩ ≤100pF |
|
Input impedance |
0.01Ω |
|
Noise |
6mV |
600μV |
Slew rate |
0.3V/μS |
20mV/μs |
Rise time |
<3.5μs |
<3.5μs |
Transient response |

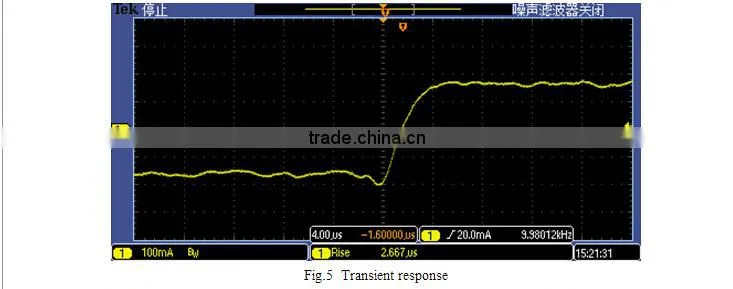

see Fig.5 |
|
square-wave response |

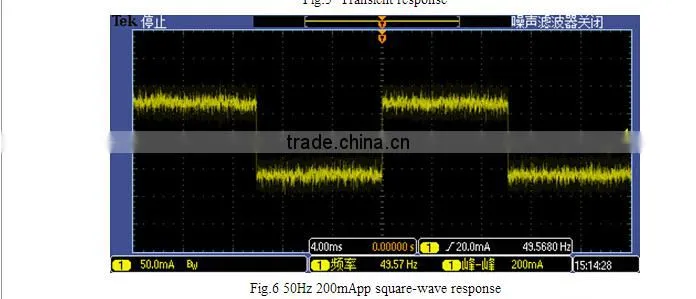

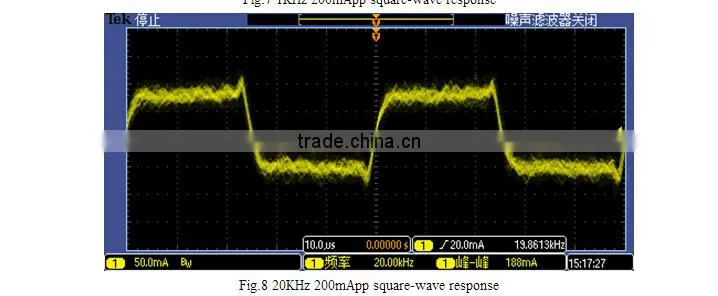

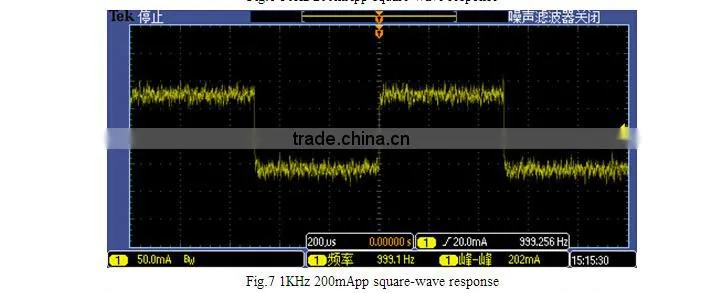

see Fig.6(50Hz/200mA);see Fig.7(1KHz/200mA);see Fig.8(10KHz/200mA) |
|
Continuous maximum input range |

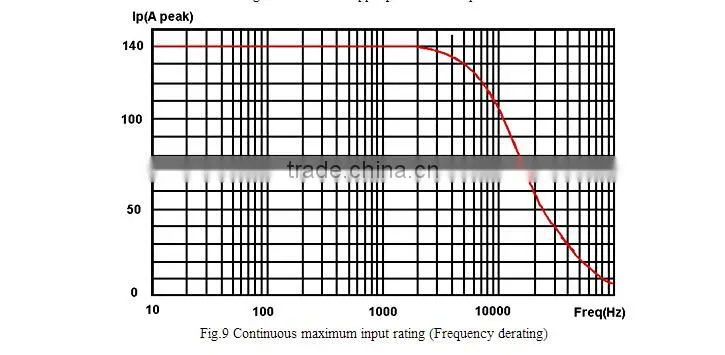

see Fig.9 |
|
Max. rated voltage |
600Vrms |
|
Battery |
9V(NEDA 1604A,IEC 6LR61)) |
|
Low battery indicator |
>6.5V ,LED Green |
|
Overload indicator |
Red LED indicator measuring the current is overload. Change the range. |
|
