Specifications
Mist eliminator:1.Certificate:IOS,CE.
2.Material:aluminum.
3.Fast delivery,Competitive price.
4.Service:one year warranty.
Mist eliminator:

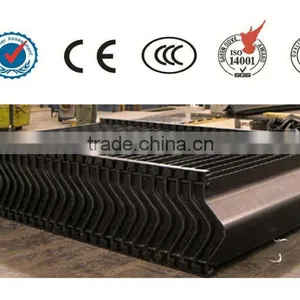

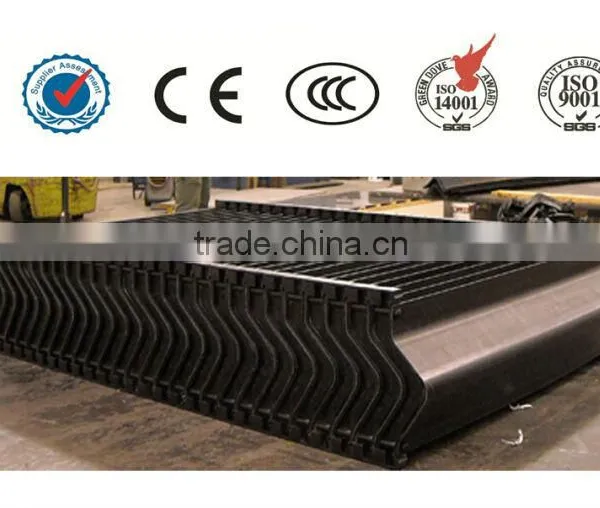

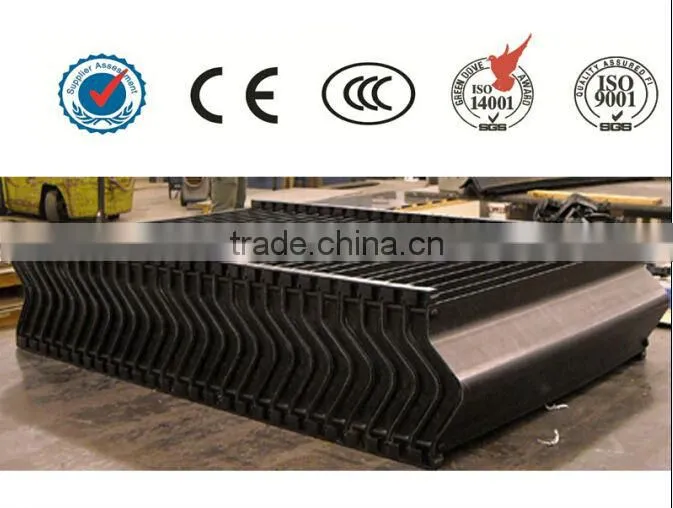

Aluminum marine mist eliminator
Application:
Marine mist eliminator essiencial to resist the waves,rain,water and salt spray in ventilation system of air-conditioning,It can be replaced with weatheright cover shutters, It design blinds in the smaller pressure drop operation,It can guarantee the airflow will not be unduly restircted,machines and equipment will not be lack of air. The elimination of water droplets helps reduce the load on the cooling system,improve cooling efficiency and extend equipment life.
Specifications:
Mode S:The unit is suitable for natural ventilation area where with low moisture,and it also can be installed on the back of funnel closed louver.It has advantage of low wind resistance and strong demisting feature.The waterproof closed type louver can be of manual,electric and pneumatic type.
Mode Y:The unit is suitable for air inet louver and cooling coil pipe which can demist well,and it also has advantage of low wind resistance.
2.Variety of materials: carbon steel, stainless steel, aluminum or plastic. Whether you need a marine grade aluminum mist eliminator for a salt water vessel, a stainless steel mist eliminator for highly toxic or corrosive environments, a food-grade plastic mist eliminator, or a custom mist eliminator made of specialty alloys like Hastelloy, Agilis Technologies can supply you with exactly what you need.
3. Technology data:
Four standard articles available from stock
Multiple color selection
Wide selection of profiles to assure minimal system pressure drop
Available in reinforced PP for thermal stability up to 266°F
Fully assembled
Easy Retrofit
Wide velocity range
Service time over ten years at sea
Advantages:
Energy efficient.
Cost less to install.
Requires less space.
Need less hangers.
Operation cost lower.
Installation simplified.
Cleaning less complicated.
Airflow measurement easier.
Light in weight.
Available size:
A=800MM B=900MM
Type VB:A800XB900-S
Process drawing:

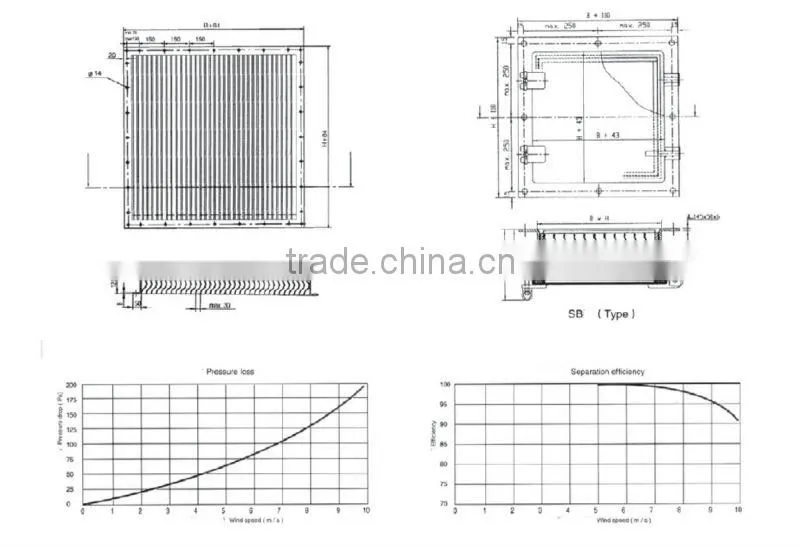

Mode S:

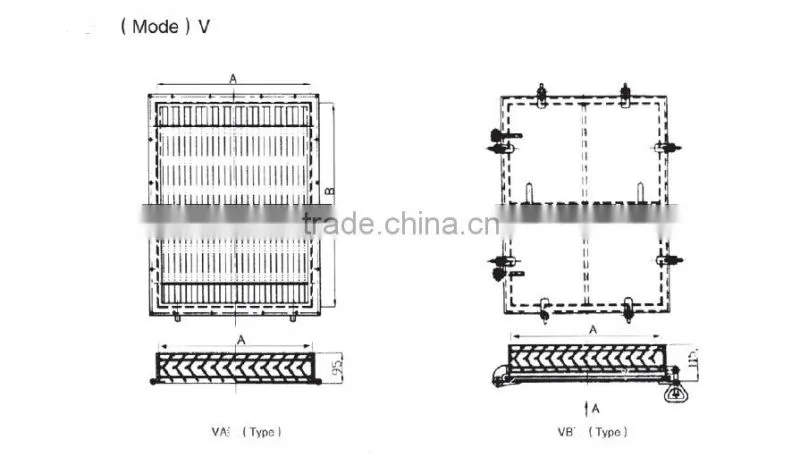

Mode V:

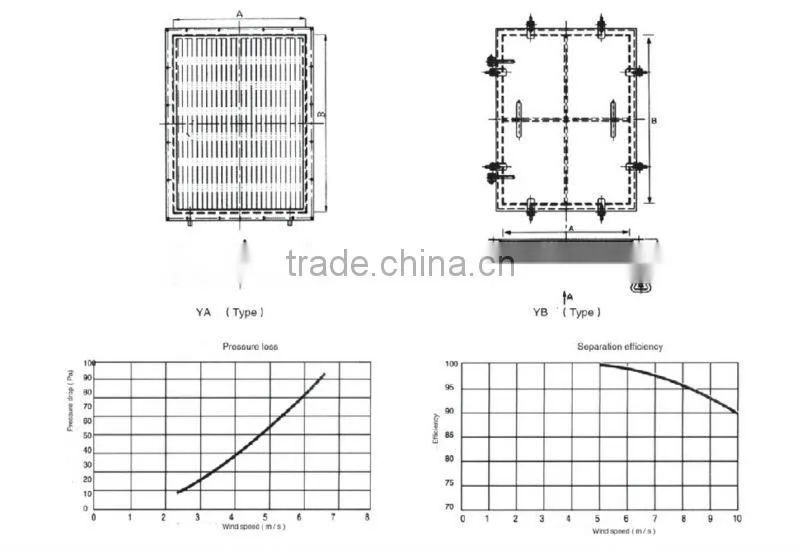

Mode Y:
More details:
