Specifications
Smoke damper:1.Certification:ISO,CE.
2.Material:Stainless steel.
3.Timely petitive price.
4.One year warranty.
Smoke damper:

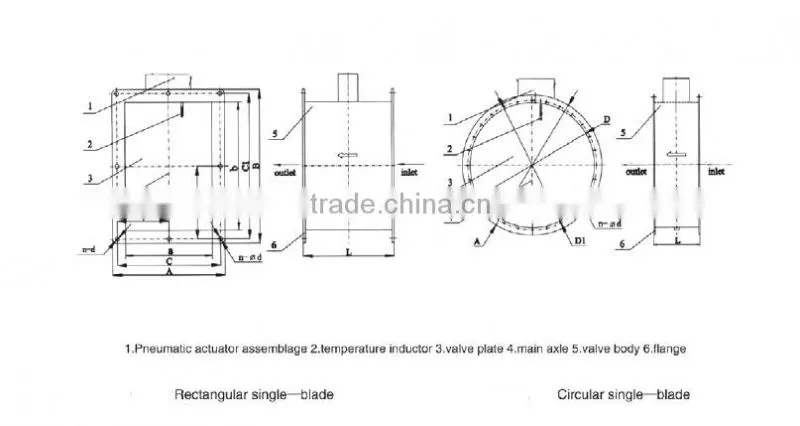

Rectangular pneumatic smoke control damper
Application:
CFH-Q type marine fire damper has been designed according the working environment at sea, and in accordance with fireproof requirements of marine struchture in the convention on the safety of life at the sea as well as it's amendment. It can be widely used every kind of ships ventilation and air-conditioning system such as offshore platform,etc.
Features:
1.Control voltage:DC24V/AC110V/AC220V.
2.Protection degree:IP44/IP56/IP65/IP67.
3.Explpsion-proof degree:Exd||BT4~BT6 Exd||CT4~CT6.
4.Close Time:<2S.
5.Air leakager ate: <5m³/ m² .h
6.The operating pressure is 0.5-0.8Mpa,The fire damper should normal open on getting. compressed air and electric power,and should be close on loss of compressed air or electric power.
7.Fusing temp is 70 ±3 °C,If the temperature of air within damper duct exceeds 70 ±3 °C ,The fusible llink of fire damper will be broken and the change valve will cut off the compressed air source to close the fire damper.
8.on/off status of control electric source for solenoid change valve could be controlled locally or remotely,thus open/close the fire damper.
9.Manual change valve can be controlled by handle dragline,and the fire damper can close locally or remotely.
10.On/off signal output when the fire damper is on/off.
Installation:
1.Shipyard should check the fire damper and ensure everything is OK before installation.
2.Fire damper should have a independent support to ensure the function of the fire damper.
3.A service space of at least 350mm should be reserved for maintenance.
4.Manhole of at least 450x450mm is required when the fire damper is installed above ceiling or on duct;
5.No fire or welding are permitted with a scope of 3m from fire dampers,in order to ensure the temperature of sensor less than 65 °C
6.Fire damper should be tested during installation,and be inspected regularly after installation.
Advantages:
Energy efficient.
Cost less to install.
Requires less space.
Need less hangers.
Operation cost lower.
Installation simplified.
Cleaning less complicated.

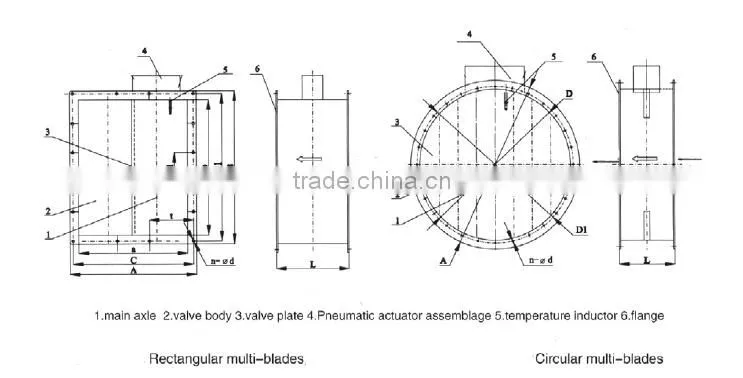

Available size:
More details:
