Specifications
Air damper:1.Certification:ISO,CE.
2.Material:aluminum.
3.Timely petitive price.
4.Service:One year warranty.
Air damper:

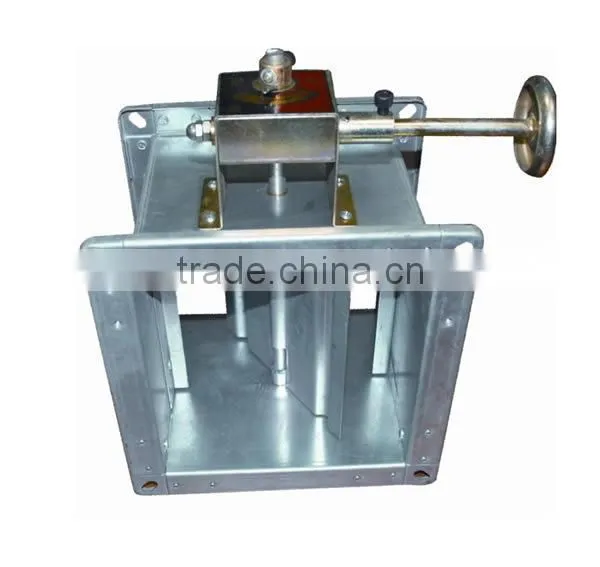

HVAC duct gas tight air damper
Application:
We have gained expertise in providing our clients with Gas Tight Control Dampers that are widely used in marine or several industries. All our products are available in various sizes, shapes and designs at market leading prices to fulfill the needs of customers. In addition to this, our dampers are thoroughly checked and tested by expert quality controllers to eliminate the chance of any kind of flaw.
Features:
The gas tight air damper are used in HVAC ducts that need gas tight.There are two control modes:electrical control and pneumatic control.The damper will open nomally,If the power or compressed air is interrupt,The damper will close in two seconds,If the damper is closed the maximum leakage to the damper is 5m³/m²min. with a diffrential pressure of 2000pa,The neoprene is made in corrosion resistant material,heat resistant to 80°C.
Flange size of all dampers could be fabricated according to user's requirement.The GD damper can be cranked out circular single blade or multi-blades,and the control type can be selected electrical or Pneumatic.
Advantages:
Energy efficient.
Cost less to install.
Requires less space.
Need less hangers.
Operation cost lower.
Installation simplified.
Cleaning less complicated.
Available size:

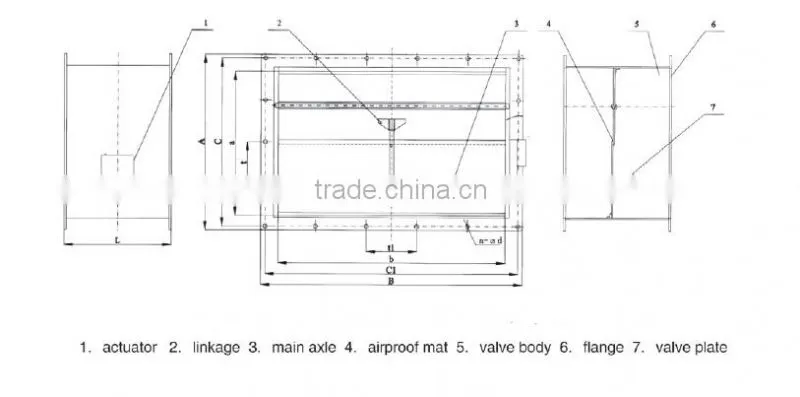

Process drawing:
More details:
