Specifications
Grille damper:1.Certificate:ISO,CE
2.Material:stainless steel
3.Timely ship,Competitive price
4.Service:one year warranty
Grille damper:

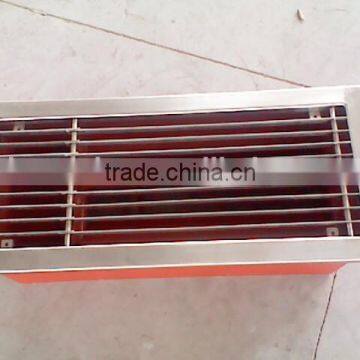

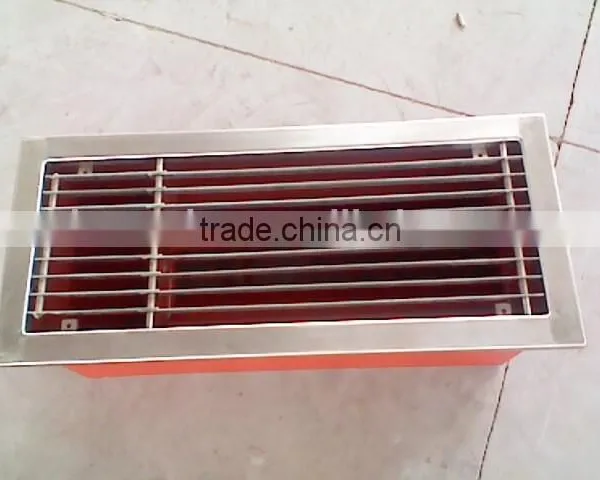

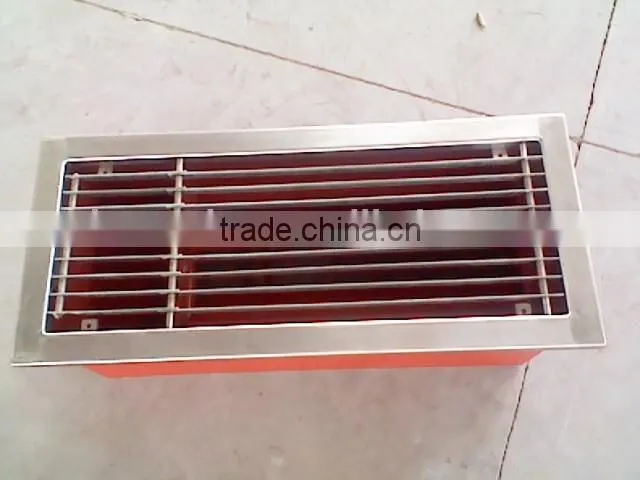

Stainless steel marine grille damper
Application:
The grille damper is widely used in the air conditioning system or ventilation system in the marine or another building to keep from the fire and smoke,The construction is made of body,shaft,valve disc.,The material is stainless steel and could be painted as your requirement.
The louver construction could be efficently use to prevent the fire or smoke in a fire situation,The damper is installed in the duct of ventilation system,At ordinary time,It is normal open,But In fire situation,Closed to prevent the fire and smoke.
Feature:
1.Electrical close the damper.
2.The damper will be closed automatically when the temperature of air duct is exceeds 70 °C.
3.The voltage is DC24V.
4.The control voltage is AV24V,DC24V,AC220V .
5.Penumatic operating pressure is 0.5-0.8Mpa.
Available size:
|
A |
|
L |
|
|
S,D |
E |
|||
300 |
240 |
220 |
340 |
460X250 |
400 |
240 |
220 |
340 |
560X250 |
400 |
300 |
220 |
340 |
560X310 |
400 |
400 |
250 |
340 |
560X410 |
500 |
300 |
220 |
340 |
660X310 |
500 |
350 |
220 |
340 |
660X360 |
500 |
400 |
250 |
340 |
660X410 |
600 |
300 |
220 |
340 |
760X310 |
600 |
400 |
250 |
340 |
760X410 |
600 |
500 |
290 |
220 |
760X510 |
700 |
500 |
290 |
220 |
860X510 |
800 |
500 |
290 |
220 |
960X510 |
900 |
500 |
290 |
220 |
1060X510 |

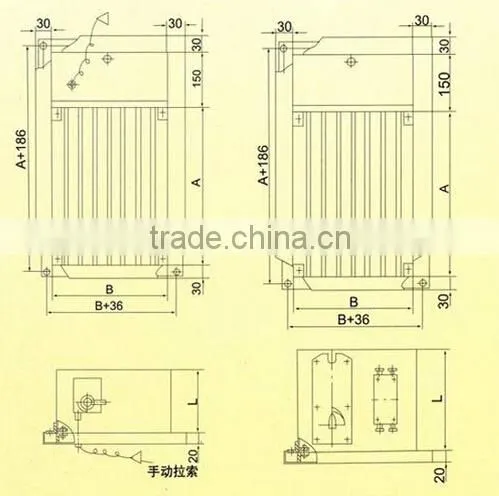

Drawing:
More details:
