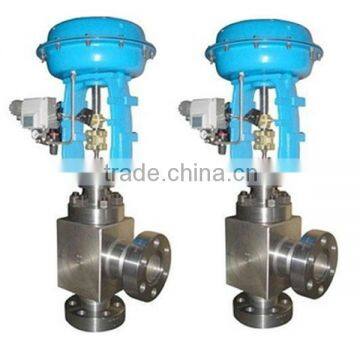

Pneumatic Diaphragm Angle Regulating Valve
US$ 80 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Diaphragm
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port Or Ningbo Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Three Piece Type Internal Thread Ball ValveUS$ 1 - 50MOQ: 10 Pieces -
Stainless Steel Butt Welded 3pc Ball ValveUS$ 1 - 200MOQ: 10 Pieces
-
2 PC Stainless Steel Ball ValveUS$ 1 - 50MOQ: 10 Pieces
-
1 pc Stainless Steel Ball ValveUS$ 1 - 50MOQ: 10 Pieces
-
Forged Industrial Mini Ball ValveUS$ 1 - 50MOQ: 1 Piece
Standard or Nonstandard
Standard
Structure
Diaphragm
Pressure
Medium Pressure
Power
Pneumatic
Material
Other, Carbon Steel
Temperature of Media
Normal Temperature
Media
Other, Water, Steam, Oil
Port Size
DN100 mm
Place of Origin
Chongqing, China
Model Number
N/A
Brand Name
HS
Specifications
Angle Regulating Valve:1. Pressure: PN22-32 Mpa
2. Diameter: DN6-100 mm
3. Media: Water, Steam, Oil
4. Cert. ISO9001
Angle Regulating Valve:
Pneumatic Diaphragm Angle Regulating Valve:
1. Product Brief Introduction:
(1). Model: ZMAS (ZMA/BS-220, 230)
(2). Nominal Diameter: 6-100 mm
(3). Nominal Pressure: PN22, 32Mpa
(4). Flange Standard: H12-67
(5). Fluid Way: One Way
(6). Shape: Angle Type
(7). Media: Water, Steam, Oil
(8). Working Temperature; Nomal Temperature
(9). Material: Carbon Steel
(10). Sealing: Soft Seal
(11). Actuator: HEP, YT1000 Type
(12). Working Temperature: -30 to 70 degree
2. Valve All Parts Materials:
| Name | Pneumatic Diaphragm High Pressure Angle Regulating Valve |
| Valve Body | 1Cr18Ni9Ti,1Cr18Ni12Mo2Ti, 316L, Forging Steel |
| Upper Valve Bonnet | Common Type: -40-+230 degree, Heat Dissipation: 230-450 degree |
| Gland | Bolt Press |
| Packing | V type Teflon, Graphite, Asbestos Fabric Packing |
3. Pneumatic Diaphragm Angle Regulating Valve In Factory Picture:
