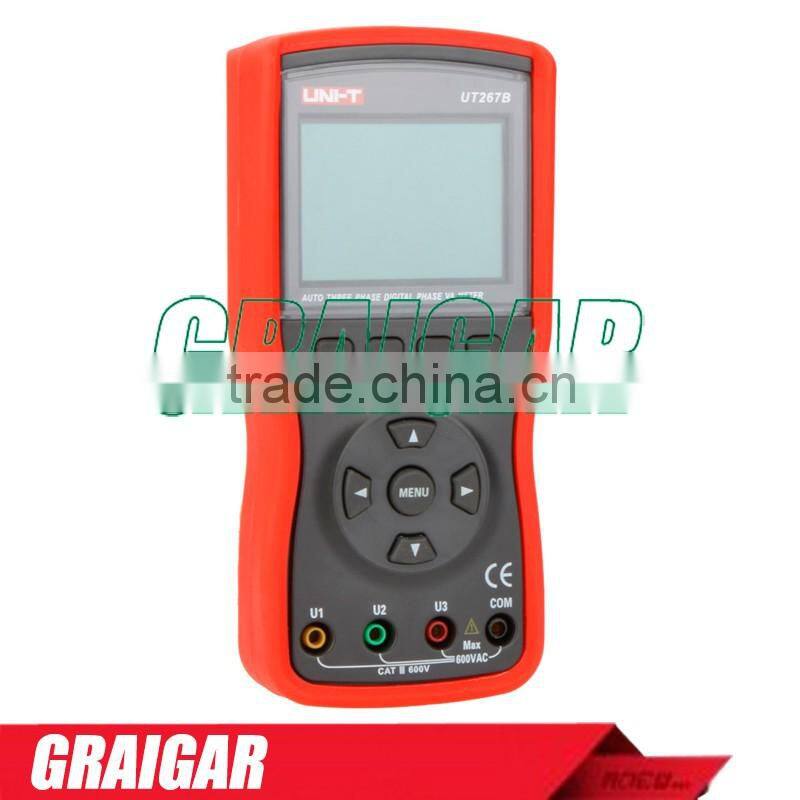

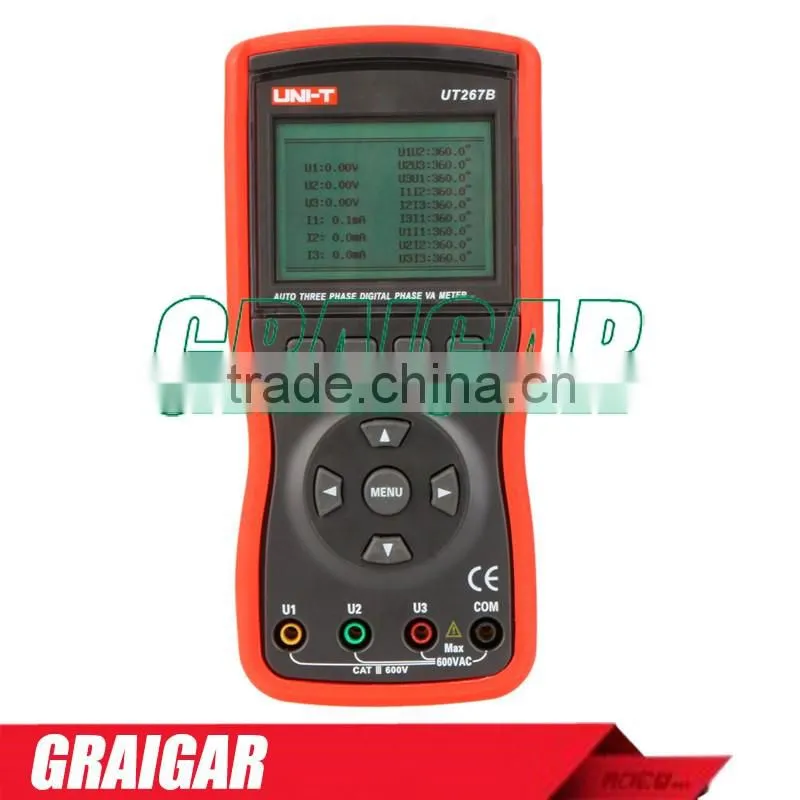

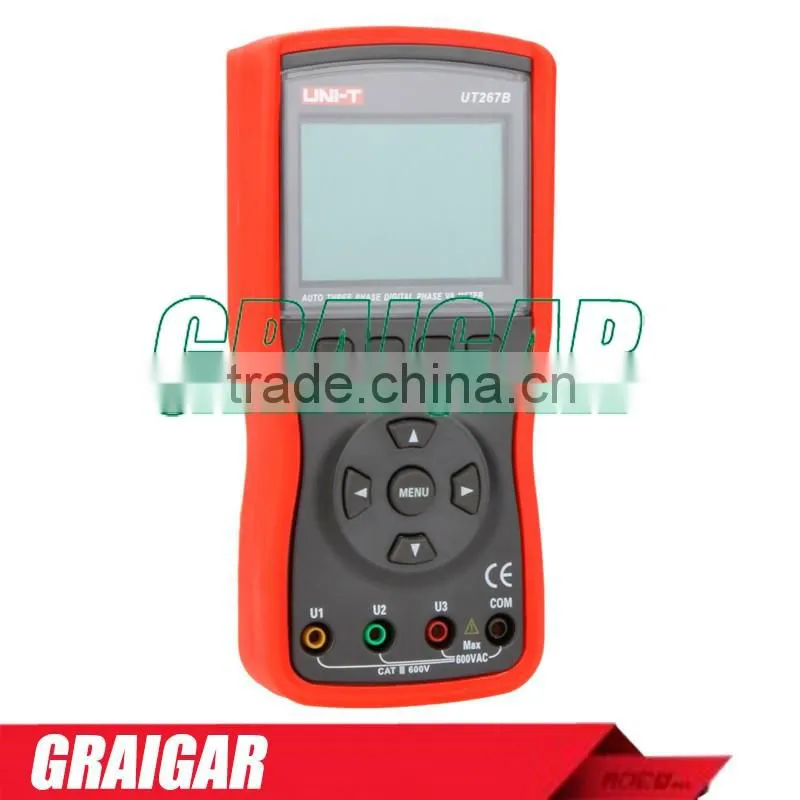

Uni-T Ut267b Auto 3 Three Clamp Digital Phase Meter Va Volt Ammeter Power Factor Tester Power Meter W Rs-232 & Lcd Backlight
US$ 300 - 500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
UNI-T
Model Number:
UT267B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Non-Contact Phase Detectors UT262C Sequence Measurement 3 Phase Detection Indicator Meter Tester LED Display BuzzerUS$ 50 - 90MOQ: 1 Piece -
High Precision Pocket Electronic Scale MH-500 500g/0.1g Mini Weighing Scale 50-500gNegotiableMOQ: 10 Pieces
-
Smart Sensor AR4105A Digital Earth Resistance Tester Meter 0-200 Ohm 2/3LinesUS$ 1 - 100MOQ: 1 Piece
-
Smart Sensor AR1392 Digital LCD Display Electromagnetic Field Radiation Detector EMF Tester Meter DosimeterUS$ 1 - 50MOQ: 1 Piece
-
Smart Sensor AR925 AR925 0.5~19999RPM Contact Digital Tachometer RPM Meter Digital Tach SpeedometerUS$ 1 - 25MOQ: 5 Pieces
Place of Origin
Guangdong, China
Brand Name
UNI-T
Model Number
UT267B
Display Type
Digital Only
Measuring Current Range
20A
Measuring Voltage Range
600V
Measuring Resistance Range
none
Measuring Capacitance Range
none
Measuring Inductance Range
none
Operating Temperature
-40 - 1000
Dimensions
196mm X 92mm X 54mm
Weight
550g
Intelligent Digital Double Clamp Phase Meter UNI-T UT265B Auto Range Multimeter AC Voltmeter Ammeter
Introduction
The meter is able to measure three phase AC voltage, current, phase angles between voltages, current or both, frequency, phase sequence, active, reactive and apparent powers, power factor, sum of current vector; differentiate wiring groups of transformers, inductive and capacitive circuits as well as secondery circuits and bus differential protection system measurement, read out differential protection phase between CT units; check and ensure correct wiring of kilowatt-hour meter and good conditions of wiring equipment, which all together turn the meter into a safe, accurate, convenient new model of instrument for electrical inspection.
Specifications
| Specifications | Range | Best Accuracy |
| Model | UT267B | |
| AC Current (A) | 0.0mA-20.0A | ±(1.5%+3) |
| AC Voltage (V) | 0.00V-600V | ±(1.5%+3) |
| Frequency (Hz) | 45Hz-65Hz | ±(2%+3) |
| Active Power (W) | 0.0W-12kW | ±(3%+3) |
| Apparent Power (VAr) | 0.0VA-12kVA | ±(3%+3) |
| Reactive Power (VA) | 0.0VAR-12kVAR | ±(3%+3) |
| Power Factor | -1~1 | ±0.03 |
| Phase Angle (°) | 0.0°-360° | ±1° |
| Current Vector Sum | 0mA-60.0A | √ |
| Phase Sequence Test | Order U1→ U2→ U3 or I1→ I2→ I3 Positive ChangeU1→ U3→ U2 or I1→ I3→ I2 To reverse | √ |
| Features | ||
| Display Mode | LCD: 240dots×160dots | √ |
| Jaw Capacity | Acuminate Current Clamp 7.5mm×13mm (Optional) Round Jaw Current Clamp 35mm×40mm (Optional) | √ |
| Auto Range | √ | |

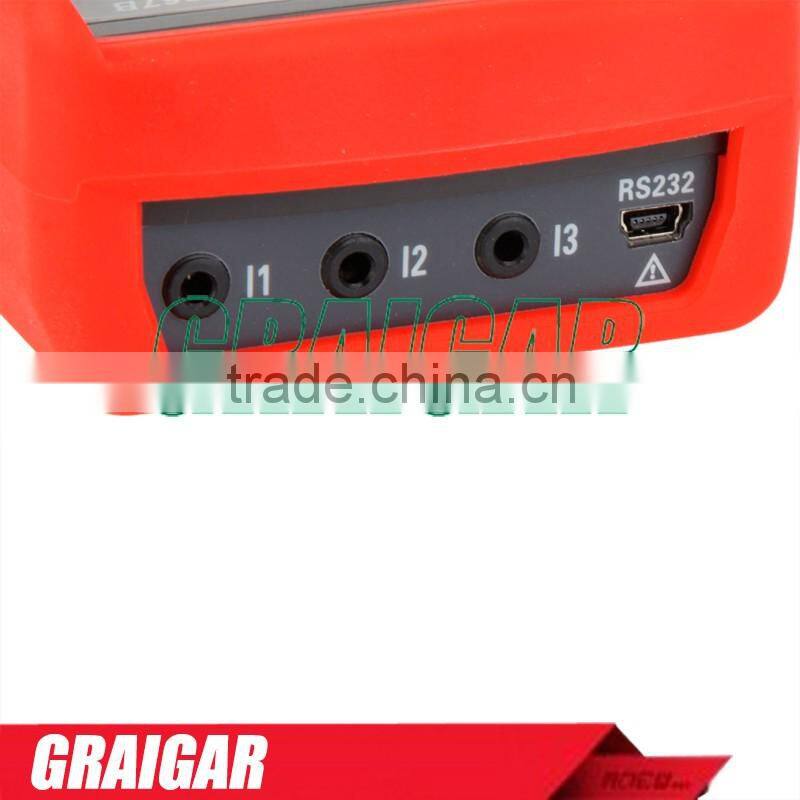

| RS-232 | √ | |
| Data Logging | 99 | |
| LCD Backlight | √ | |
| Data Hold | √ | |
| Input Impedance for DCV | Around 2MΩ | √ |
| Auto Power Off | Around 15 Minutes | √ |
| Low Battery Indication | √ | |
| Sample Rate | About 2 times/second | √ |
| General Characteristic | ||

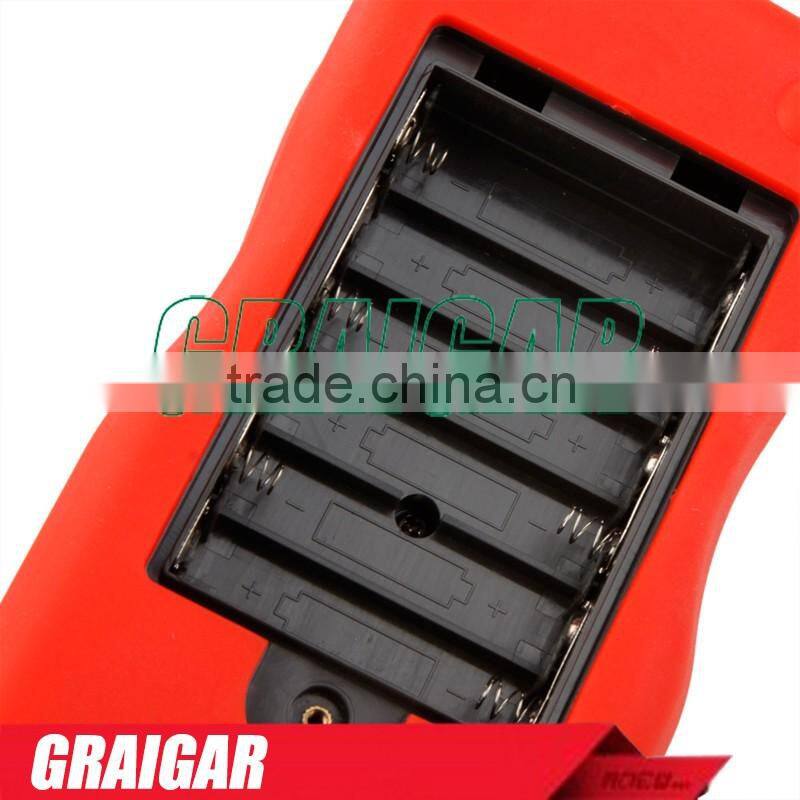

| Power | 1.5V Alkaline Batteries(LR6) X 6 | |
| Product Color | Red and Grey | |
| Product Net Weight | 550g | |
| Product Size | 196mm X 92mm X 54mm | |

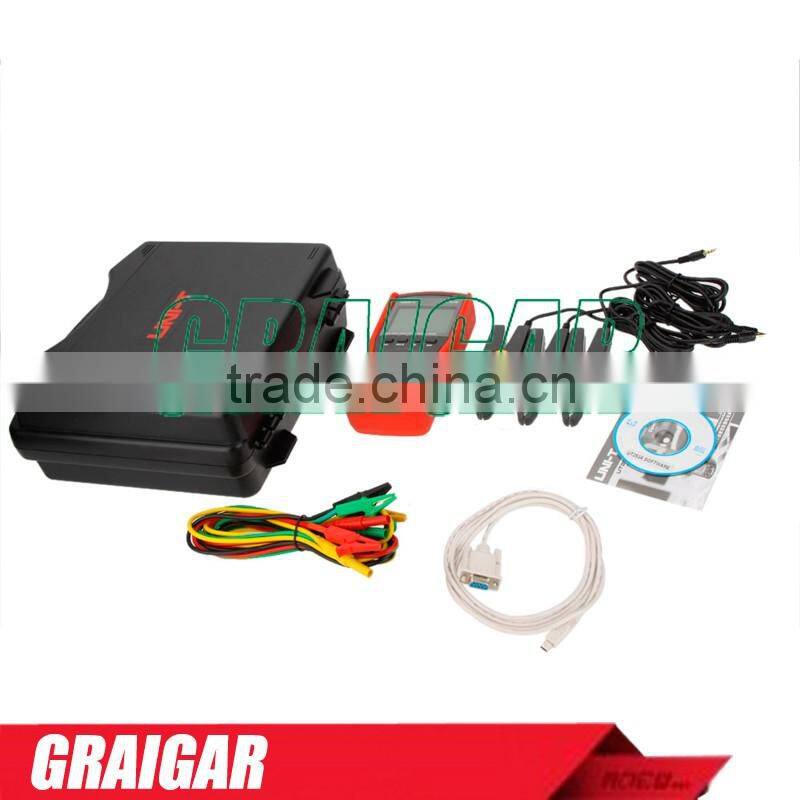

| Standard Accessories | Batteries,Current Clamp: 3 pcs;Test Line: 4 pcs( 1 yellow,1green,1 red, 1 black) | |
| Standard Individual Packing | Gift Box, English Manual,Tool Box | |
| Standard Quantity Per Carton | 6 PCs | |
| Standard Carton Measurement | 530mm X 380mm X 395mm (0.075CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 18Kg | |

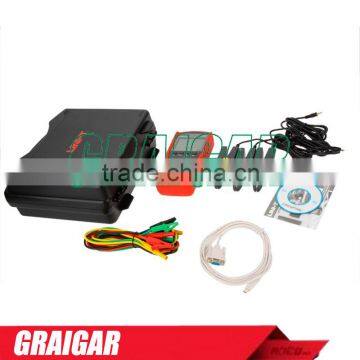

Accessories
Batteries, (not included)

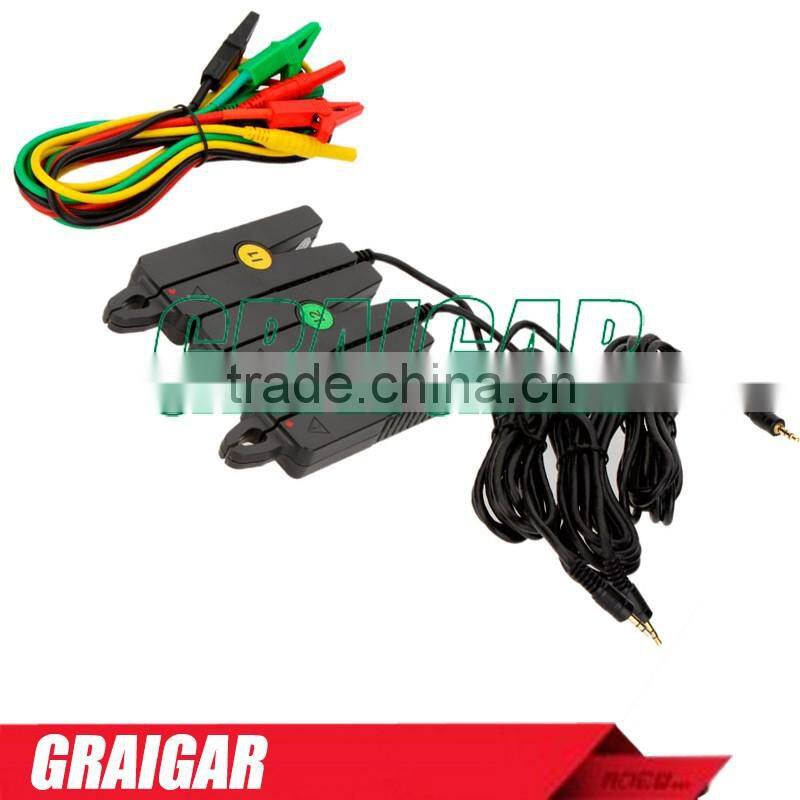

Current Clamp: 3 pcs,

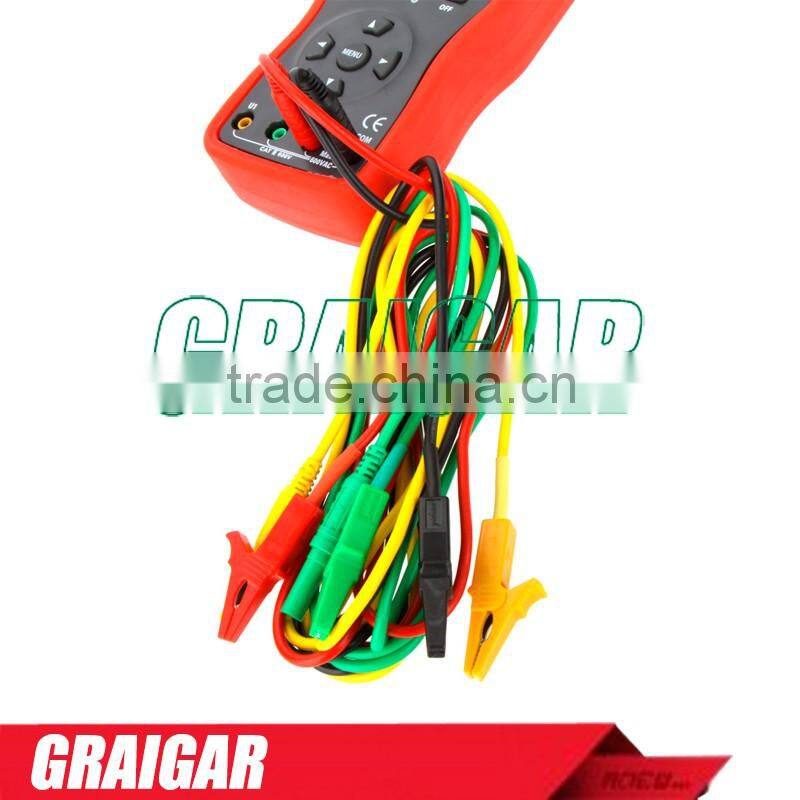

Test Line: 4 pcs( 1 yellow,1green,1 red, 1 black)
