Home > Industrial Equipment & Components > Valve > Ball Valve > JIS Standard Good Sealing Steel Gate Valve

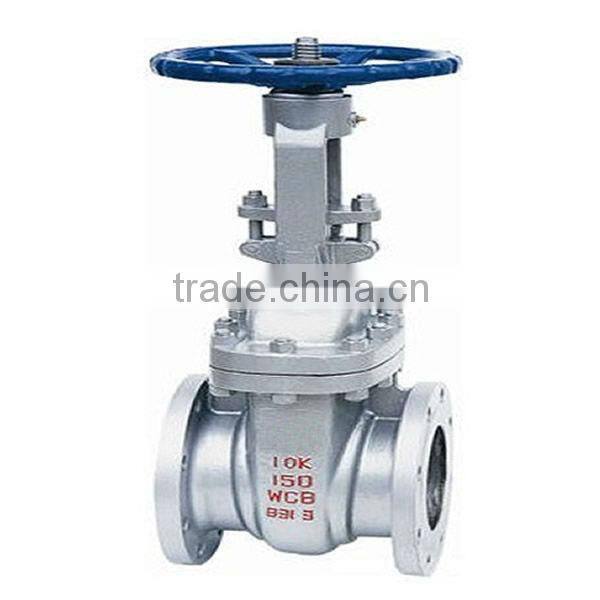

JIS Standard Good Sealing Steel Gate Valve

US$ 30 - 80 MOQ: 1 Set

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Gate

Pressure:

Medium Pressure

Contact Supplier Request Quote Chat Now

Chongqing Hi-Sea Marine Equipment Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port or Ningbo Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Gate

Pressure Medium Pressure

Power Manual

Material Other, Stainless Steel or Carbon Steel

Temperature of Media Normal Temperature

Media Water

Port Size DN50

Place of Origin Chongqing, China

Model Number N/A

Brand Name HS

Specifications

Steel Gate Valve:
1. Sealing: 100%
2. Standard: JIS
3. Pressure: 10 K, 20K
4. Nominal Diameter: 50 mm to 500 mm

Steel Gate Valve:

JIS Standard Good Sealing Steel Gate Valve:

1. Brief Introduction:

(1). Model: 240H

(2). Material: Carbon Steel, Stainless Steel

(3). Working Temperature: Carbon Steel: -29~425°C, Stainless Steel: -40~500°C

(4). Medium: Water, Steam, Oil, Nitric Acid, Acetic Acid, Urea, Strong Oxidizing Medium.

(5). Drive Way: Hand Drive, Bevel Gear Drive, Electric Drive

2. Steel Gate Valve Standard:

(1). Design and Manufacture: JIS B2073 B2083

(2). Structure Length: JIS B2002

(3). Flange Size: JIS B2212 B2214

(4). Pressure -Temperature: JIS B2073 B2083

3. JIS Standard Steel Gate Valve Specification: 10 K

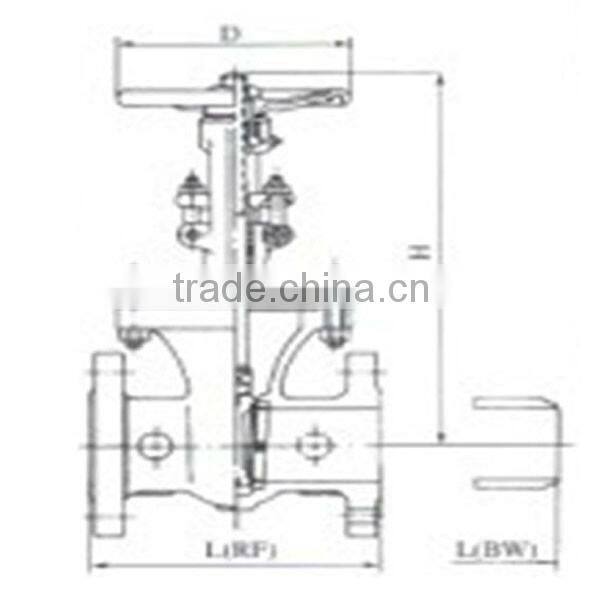

DN mm	in	L	D	D1	D2	b	n-φd	H	D0	W(kg)
50	2	178	155	120	100	16	4-19	409	200	24
65	21/2	190	175	140	120	18	4-19	535	250	31
80	3	203	185	150	130	18	8-19	570	250	40
100	4	229	210	175	155	18	8-19	590	250	55
150	6	267	280	240	215	22	8-23	630	300	90
200	8	292	330	290	265	22	12-23	960	350	145
250	10	330	400	355	325	24	15-25	1158	400	230
300	12	356	450	400	370	24	16-25	1378	450	330
350	14	381	490	445	415	26	16-25	1543	500	460
400	16	406	560	510	475	28	16-27	1738	600	600
450	18	432	620	565	530	30	20-27	1959	600	980
500	20	457	675	620	585	30	20-27	2214	680	960
20K
50	2	216	155	120	100	18	8-19	480	200	32
65	21/2	241	175	140	120	20	8-19	510	250	39
80	3	283	200	160	135	22	8-23	580	280	55
100	4	305	225	185	160	24	8-23	700	350	80
150	6	403	305	260	230	28	12-25	940	400	160
200	8	419	350	305	275	30	12-25	1190	450	250
250	10	457	430	380	345	34	12-27	1390	500	370
300	12	502	480	430	395	35	16-27	1600	500	560
350	14	762	540	480	440	40	16-33	1750	600	870
400	16	838	605	540	495	46	16-33	1900	600	1150
450	18	914	675	605	560	48	20-33	2320	650	1270
