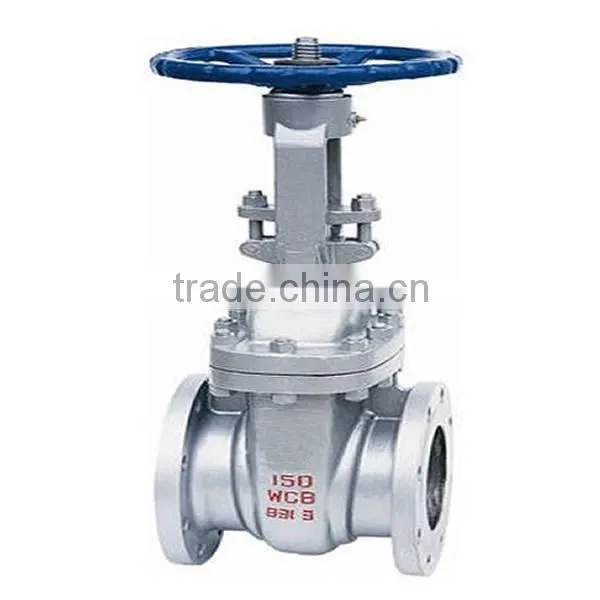

API 600 Industrial WCB Gate Valve

US$ 30 - 800 MOQ: 1 Set

Key Specifications

Standard or Nonstandard:

Standard

Structure:

Gate

Pressure:

Medium Pressure

Chongqing Hi-Sea Marine Equipment Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Standard

Structure Gate

Pressure Medium Pressure

Power Other, Manual Operation

Material Other, WCB

Temperature of Media Normal Temperature

Media Other, Water, Gas, Oil

Port Size Class150-900

Place of Origin Chongqing, China

Model Number N/A

Brand Name HS

Specifications

WCB Gate Valve :
1. Nominal Diameter: 2-20 inch
2. Standard: API
3. Certificate: ISO, API
4. Valve Body: WCB

WCB Gate Valve:

API 600 Industrial WCB Gate Valve:

1. Standard:

Face to Face Dimensions: ANSI B16.10

End Flange Dimensions: ANSI B16.5

Basic Design: API 600

Test Standard: API 598

2. Detailed Information:

Nominal Pressure: 2 inch-20 inch (51 mm to 464 mm)

Nominal Diameter: Class150, Class300, Class600, Class900, Class1500

Connection: RF, BW

Weight: 35-2540 kg

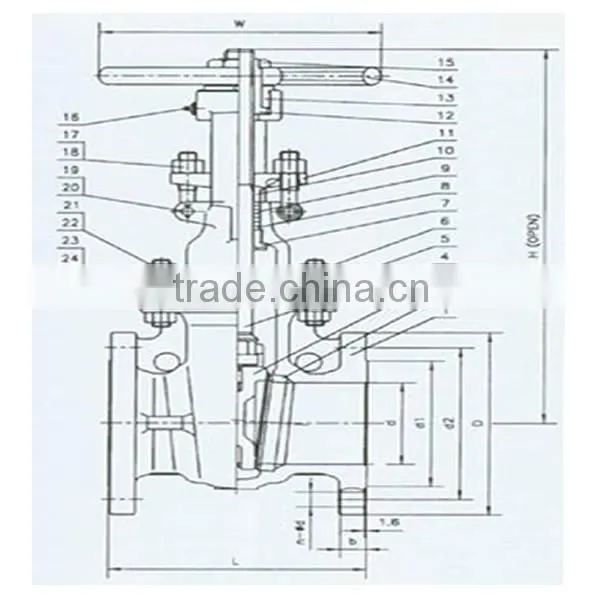

3. Size and Dimension:

No.	Part Name	Qty.	Material
1	Body	1	WCB
2	Seat	2	A105+HF
3	Wedge	1	WCB+F6
4	Stem	1	A182 F6
5	Gasket	1	304 Wound Gra.
6	Bonnet	1	WCB
7	Back Seat	1	A276 410
8	Packing	2	Stainless Steel Wire With Flexible Graphite
9	Packing	4	Stainless Steel Wire With Flexible Graphite
10	Distance Ring	1	A276 410
11	Gland	1	A276 410
12	Gland Flange	1	WCB
13	Stem Nut	1	D-2
14	G1and Nut	1	A29 1035
15	Lock Nut	1	A29 1035
16	Hand Wheel	1	60-40-18
17	Oil Filler	1	A570 Gr.A
18	Eye Bolt	2	A193 B7
19	Eye Nut	2	A194 2H
20	Pin	2	A29 1035
21	Split Pin	2	A570 Gr.A
22	Bolt		A193 B7
23	Nut		A194 2H
24	Rivet	2	304
