Class 300 One Way Floating A216 WCB Ball Valve
US$ 30 - 800
/ Set
1 Set(Min. Order)
- Shanghai Port
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Ball | |
| Pressure | Medium Pressure | Power | Other, Manual Operation | |
| Material | Other, Steel | Temperature of Media | Normal Temperature | |
| Media | Other, Water, Gas, Oil | Port Size | Class300 | |
| Place of Origin | Chongqing, China | Model Number | N/A | |
| Brand Name | HS |
Product Description
Specifications
A216 WCB Ball Valve :1. Certificate: ISO9001
2. Valve Body: A216 WCB
3. Diameter: DN 2"-10"
4. Pressure: PN Class300
A216 WCB Ball Valve:
Class 300 One Way Floating A216 WCB Ball Valve:
1. Valve Material:
Body: ASTM A216 WCB
Seal Ring: Graphite
Ball: ASTM A105 ENP
Pin: ASTM A276 F6
Spring: ASTM A276 304
Stem: PTFE
Trust Collar: PTFE
Gland: ASTM A576-1045
Gland Flange: ASTM A576-1045
Holding Plate: ASTM A576-1045
Handle: ASTM A216 WCB
Seat Bear: ASTM A216 WCB
Retaining Ring: Carbon Steel
Screw: ASTM A193 B7
Packing: Graphite
2. Valve Standard:
Face to Face Dimension: ANSI B16.10
End Flange Dimension: ANSI B16.5
Design Standard: API 6D & BS5351
Test Standard: API 598
3. Valve Size and Dimension:
| NPS d inch/mm | 2/51 | 3/76 | 4/102 | 6/152 | 8/203 | 10/254 |
| L (RF) inch/mm | 8.5/216 | 11.12/283 | 12/305 | 15.88/403 | 19.75/502 | 22.38/568 |
| L(RTJ) inch/mm | 9.12/232 | 11.74/298 | 12.62/321 | 16.5/419 | 20.37/517 | 23/584 |
| H inch/mm | 4.33/110 | 5.71/145 | 6.69/170 | 9.65/245 | 12.6/230 | 13.39/340 |
| D inch/mm | 6.5/165 | 8.25/210 | 10/254 | 12.5/318 | 15/381 | 17.5/445 |
| Width inch/mm | 8.66/220 | 14.96/380 | 18.9/480 | 25.59/650 | 31.5/800 | 39.37/1000 |
| Weight KG | 12 | 30 | 48 | 85 | 160 | 300 |

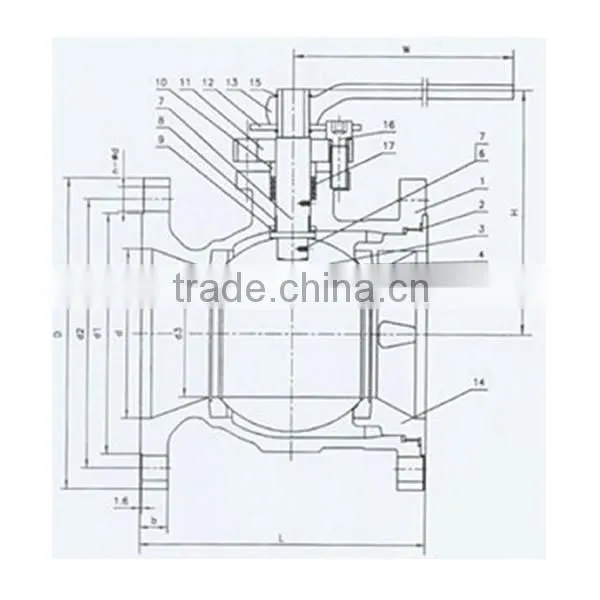

4. A216 WCB Ball Valve Drawing:

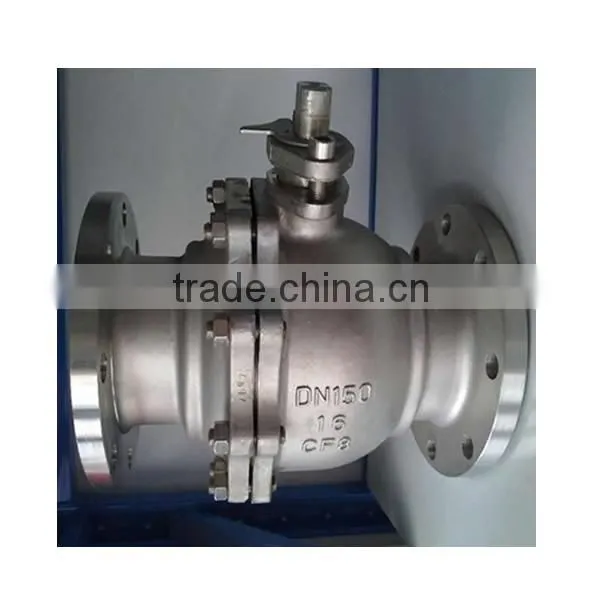

5. A216 WCB Ball Valve Sample:

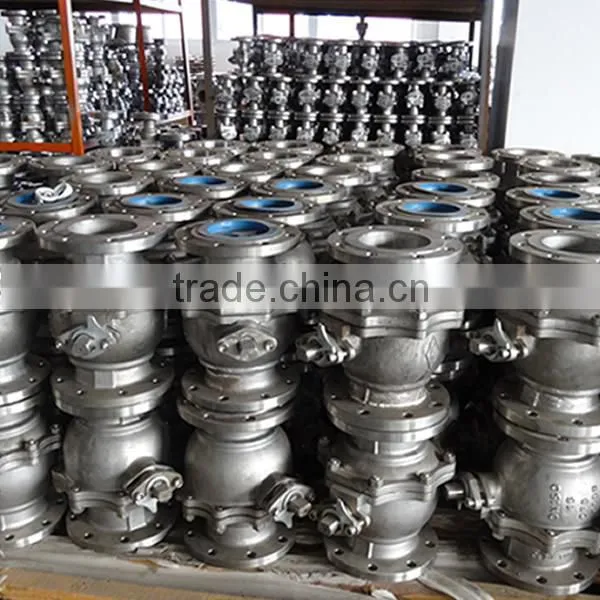

6. A216 WCB Ball Valve Factory:
