Home > Industrial Equipment & Components > Valve > Ball Valve > API 6D Reduced Bore Floating Ball Valve

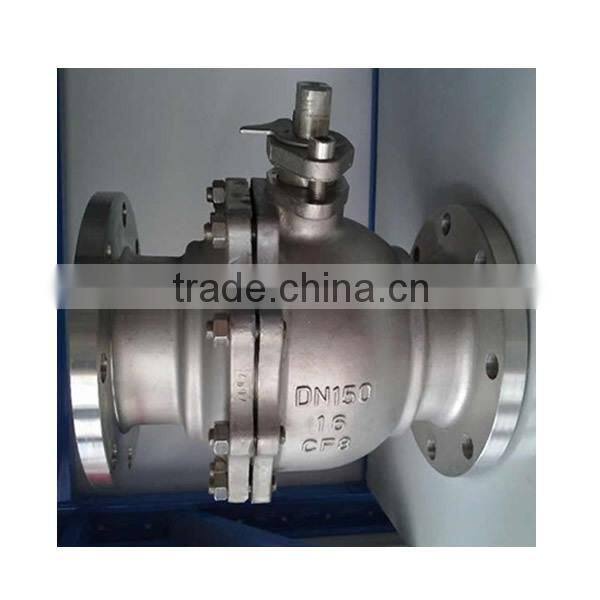

API 6D Reduced Bore Floating Ball Valve

US$ 30 - 800 MOQ: 1 Set

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Ball

Pressure:

Medium Pressure

Contact Supplier Request Quote Chat Now

Chongqing Hi-Sea Marine Equipment Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Ball

Pressure Medium Pressure

Power Other, Manual Operation

Material Other, Steel

Temperature of Media Normal Temperature

Media Other, Water, Gas, Oil

Port Size Class150

Place of Origin Chongqing, China

Model Number N/A

Brand Name HS

Specifications

Floating Ball Valve :
1. Nominal Pressure: Class 150
2. Nominal Diameter: DN 2"-10"
3. Certificate: ISO9001
4. Flanged

Floating Ball Valve :

API 6D Reduced Bore Floating Ball Valve :

1. Standard:

Face to Face Standard: ANSI B16.10

End Flange Standard: ANSI B16.5

Design Standard: API 6D & BS5351

Test Standard: API 598

2. Material:

Body: ASTM A216 WCB

Seal Ring: Graphite

Ball: ASTM A105 ENP

Pin: ASTM A276 F6

Spring: ASTM A276 304

Stem: PTFE

Trust Collar: PTFE

Gland: ASTM A576-1045

Gland Flange: ASTM A576-1045

Holding Plate: ASTM A576-1045

Handle: ASTM A216 WCB

Seat Bear: ASTM A216 WCB

Retaining Ring: Carbon Steel

Screw: ASTM A193 B7

Packing: Graphite

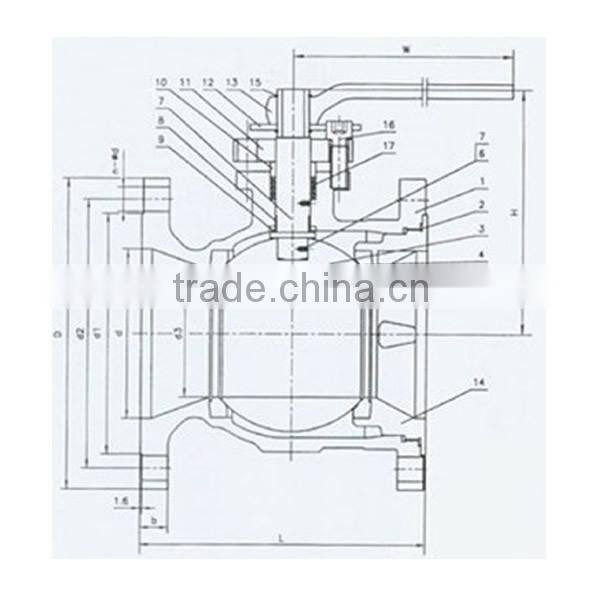

3. Size and Dimension:

NPS d inch/mm	2/51	3/76	4/102	6/152	8/203	10/254
L (RF) inch/mm	7/178	8/203	9/229	15.5/394	18/457	21/533
L(RTJ) inch/mm	7.5/190.5	8.5/216	9.5/241	16/406	18.5/470	21.5/546
H inch/mm	4.33/110	5.71/145	6.69/170	9.65/245	12.6/230	13.39/340
D inch/mm	6/152	7.5/190	9/229	11/279	13.5/343	16/406
Width inch/mm	8.66/220	14.96/380	18.9/480	25.59/650	31.5/800	39.37/1000
Weight KG	7.5	17	25	56	104	145
