Three Piece Ball Valve:
Trunnion Type Forged Steel Three Piece Ball Valve:
1. Advantages:
(1). Reasonable structure and excellent performance
Adopt advanced product design, procurement SDRC's I-Deas computer software, the valve structure modeling three-dimensional design and finite
element analysis.
(2). Quality assurance
Use high precision CNC machine tools and machining centers for machining
(3). No leaking
Strictly in accordance with the API, ASME standard design, manufacture, inspection and testing
(4). Saving time.
Let ball rotated 90 ° to complete the requirements of the fully open or fully closed.
(5). Good in sealing
By the initial pretension than pressure to ensure the sealing of the low-pressure, internal pressure to achieve high pressure sealing.
2. Standard:
Design standard: API 6D
Length of structure: API 6D/ASME B16.10.
Flange connecting end: ASME B16.5/ASME B16.47
Butt welding connecting end: ASME B16.25/ ASME B31.8
Wall thickness: ASME B16.34
Fireproof test: API 607/API 6FA
3. Specification:
Nominal Diameter |
1/2-60 Inch |
Nominal Pressure |
150LB - 2500LB |
Material |
A105, LF2, F304, F316, F304L, F316L, F51,WCB, LCB, WCC, CF8, CF8M, CF3, CF3M, A890 4A etc. |
Valve Seat |
PTFE, RPTFE, NYLON, DEVLON, Derlin, PEEK, PPL, HNBR, FKM or metal hard seal etc. |
Driven Device |
handle, worm wheel, electric, pneumatic, pneumatic- hydraulic, electro-hydraulic, etc. |

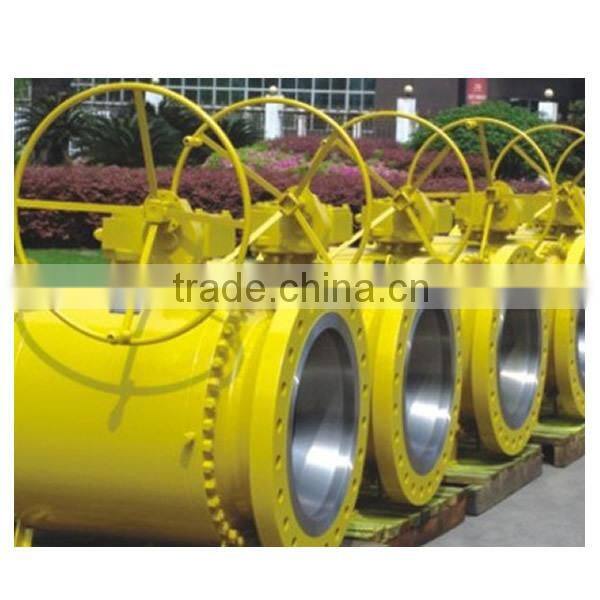

4. Trunnion Type Forged Steel Three Piece Ball Valve Sample:

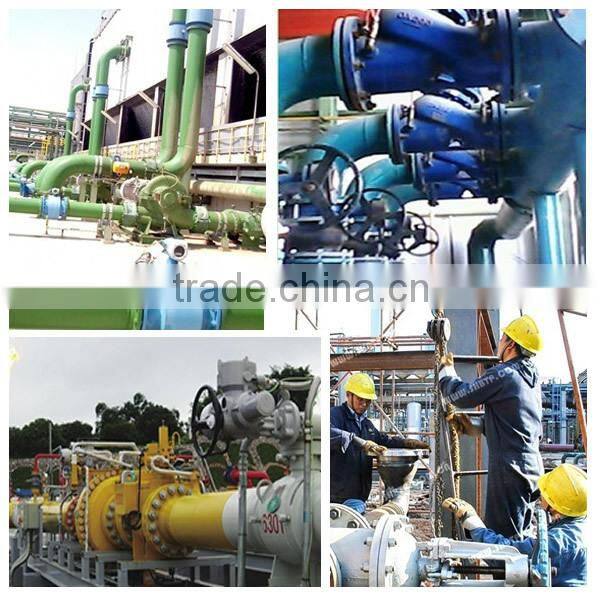

5. Trunnion Type Forged Steel Three Piece Ball Valve Working Picture:
Factory Certificate:
