Help CenterBV Certified EPR Insulated Marine Flexible Cable
Related Products
-
NSSHOU VDE LV Power Mining CableUS$ 1 - 50MOQ: 500 Meters -
Fire Resistant Shipboard Power Rubber CableUS$ 0.5 - 100MOQ: 100 Meters
-
0.6/1KV EPR XLPE Marine CableUS$ 0.1 - 20MOQ: 1 Meter
-
XLPE Flame Retardant Marine CableUS$ 0.1 - 20MOQ: 200 Meters
-
XLPE Insulated LR Certified Shipboard Power CableUS$ 0.5 - 100MOQ: 200 Meters
Specifications
Marine Flexible Cable1.EPR insulated
2.Flame retardant and Fire resistant
3.BV Certified
4.As fast as 7 days production

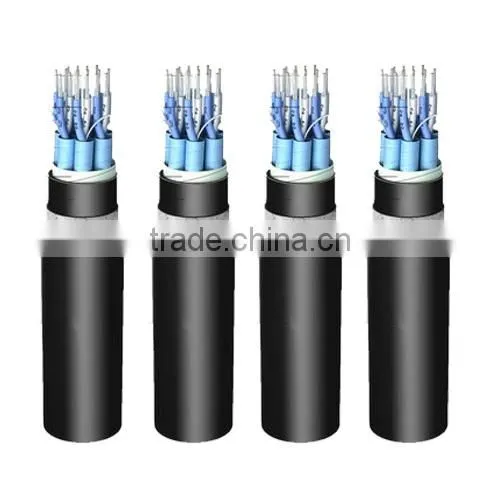

Marine Flexible Cable
EPR Insulated Shipboard Power cable 0.6/1 kV
SPECIFICATION & STANDARDS
IEC 60288 IEC60092-350 IEC60092-353 IEC60092-359
IEC60092 351 IEC60332-1 IEC60332-3Cat.A
IEC61034-2 IEC 60754-2 3A
Construction:
Conductor: tinned copper
Insulation: EPR
Filler
Tape
Inner sheath: PCP/CSP/PVC/PO (SHF1, SHF2)
Armored: tinned copper wire braid
(Galvanized steel wire braid)
Outer sheath: PVC/PO (SHF1, SHF2)
Flammability Features:
DA: Single cable flame retardant
SA: Bunched cable flame retardant
SC: Bunched cable flame retardant,halogen-free, low-smoke, low-toxicity.
Specifications:
Cores: 1, 2, 3, 4, 5, 7, 10, 12, 14, 16,19, 24, 27, 30, 33, 37.
Nominal Cross-section Areas: 1 mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2,
35mm2, 50mm2, 70mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2.
Application:
The cable is intended for power, lighting and control system of shipboard and off-shore building, and it is also available to metallurgical industry chemical works, power planted and mines etc.
Certificates:
CCS,LR,ABS,DNV,BV,GL,NK,RINA; 90
The radius of bend for the installation of cables
Cable structure features |
Over diameter of cable(D) |
Minimum internal bending radius |
Metal braided armored |
Any value |
6D |
Non-armored |
D≤25 |
4D |
D25 |
6D |
Drum Sample
Finished Cable in Drum
Packed Drum
1)Offer our customers with the most competitive price best quality.
2)Delivery goods all over the planet with speed and precision
3)Reply you concern within 24 working hours
4)As low as 200 meter MOQ,T/T,L/C accepted
Panaroma Of Workshop
One Corner of Workshop
Testing Equipment
Our business license and marine certifications
if you want to learn more and get latest price pls add my trademanager or send inquiry to me i will be happy to serve you !
Ordering process
Any problems welcome to contact us any time, hope we could satisfy you!
