Specifications
Marine Power Cable1.XLPE insulation
2.LSHF&FR
3.IEC Standards LR Certified
4.High quality,Competitive price

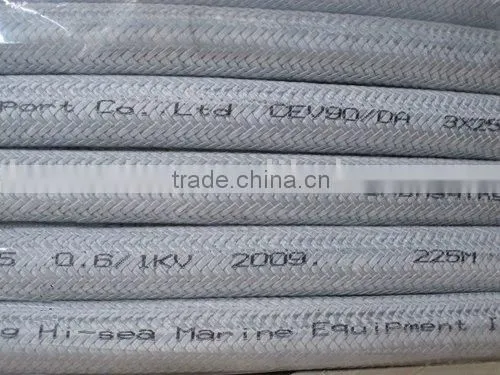

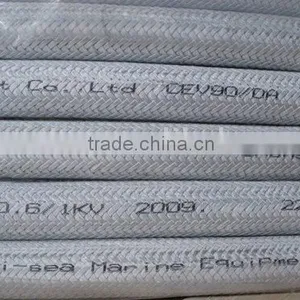

Marine Power Cable
XLPE Insulated Fire-resisitng LR Certified Shipboard Power Cable 0.6/1 kV
SPECIFICATION & STANDARDS
IEC 60288 IEC60092-350 IEC60092-353 IEC60092-359
IEC60092 351 IEC60332-1,IEC60754-2 3Cat,A
IEC60754, IEC60134
Construction:
1. Conductor: tinned copper
2. Mica tape
3. Insulation: XLPE
4. Filler
5. Tape
6. Inner sheath: PVC/PO9SHF1, SHF2)
7. Armored: tinned copper wire braid
(Galvanized steel wire braid)
8. Outer sheath: PVC/PO9SHF1, SHF2)
Flammability Features:
NA: Fire-resisting cable
NC/NSC: Fire-resisting cable halogen-free, low-smoke, low-toxicity.
Specifications:
Cores: 1, 2, 3, 4, 5, 7, 10, 12, 14, 16,19, 24, 27, 30, 33, 37.
Nominal Cross-section Areas: 1 mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2,
35mm2, 50mm2, 70mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2.
Application:
The cable is intended for power, lighting and control system of shipboard and off-shore building, and it is also available to metallurgical industry chemical works, power planted and mines etc.
Certificates:
CCS,LR,ABS,DNV,BV,GL,NK,RINA;
The radius of bend for the installation of cables
Cable structure features |
Over diameter of cable(D) |
Minimum internal bending radius |
Metal braided armored |
Any value |
6D |
Non-armored |
D≤25 |
4D |
D25 |
6D |
