Home > Products > Electric Cable > Rubber insulated Marine Flame Retardant Cable

Rubber insulated Marine Flame Retardant Cable

FOB Price

USD $0.5 - $100 / Meter

200 Meters(Min.Order)

Supply Ability 50 Kilometer / Kilometers per Month
Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China	Brand Name	Hi-Sea
Model Number	CEPF/SC	Insulation Material	Rubber
Type	Low Voltage	Application	Marine
Conductor Material	Copper	Jacket	Other, PO Sheath

Product Description

Marine Cable

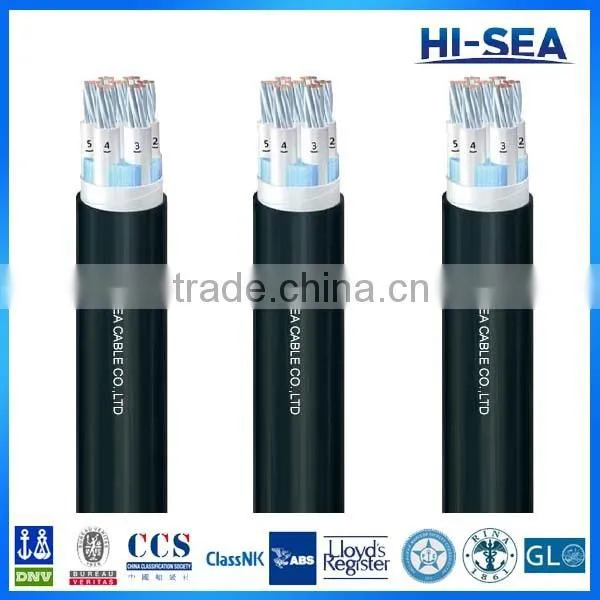

Rubber insulated Flame Retardant Marine Cable

EPR Insulated Fire-resisting Shipboard Cable 0.6/1kv

SPECIFICATION & STANDARDS

IEC 60288 IEC60092-351 IEC60092-376 IEC60092-359

IEC60332-1 IEC 60331

Construction:

1. Conductor: tinned copper

2. Insulation: EPR

3. Tape

4. Individual screen: tinned copper wire braided

5. Tape

6. Inner sheath: PCP/PO (SHF1, SHF2)

7. Screen/Armored: tinned copper wire braid

(Galvanized steel wire braided)

8. Outer sheath: PVC/PO (SHF1, SHF2)

Flammability Features:

NA: Fire-resisting cable

NC/NSC: Fire-resisting cable halogen-free, low-smoke, low-toxicity.

Specifications:

Cores: 1, 2, 3, 4, 5, 7, 10, 12, 14, 16,19, 24, 27, 30, 33, 37.

Nominal Cross-section Areas: 1 mm², 1.5mm², 2.5mm²

Application:

The cable is intended for communication, computer and information proceeding unit of shipboard and naval ship, and it is also available to metallurgical industry chemical works, power planted and mines etc.

Certificates:

CCS,LR,ABS,DNV,BV,GL,NK,RINA; 70

The radius of bend for the installation of cables

Cable structure features	Over diameter of cable(D)	Minimum internal bending radius
Metal braided armored	Any value	6D
Non-armored	D≤25	4D
Non-armored	D25	6D
