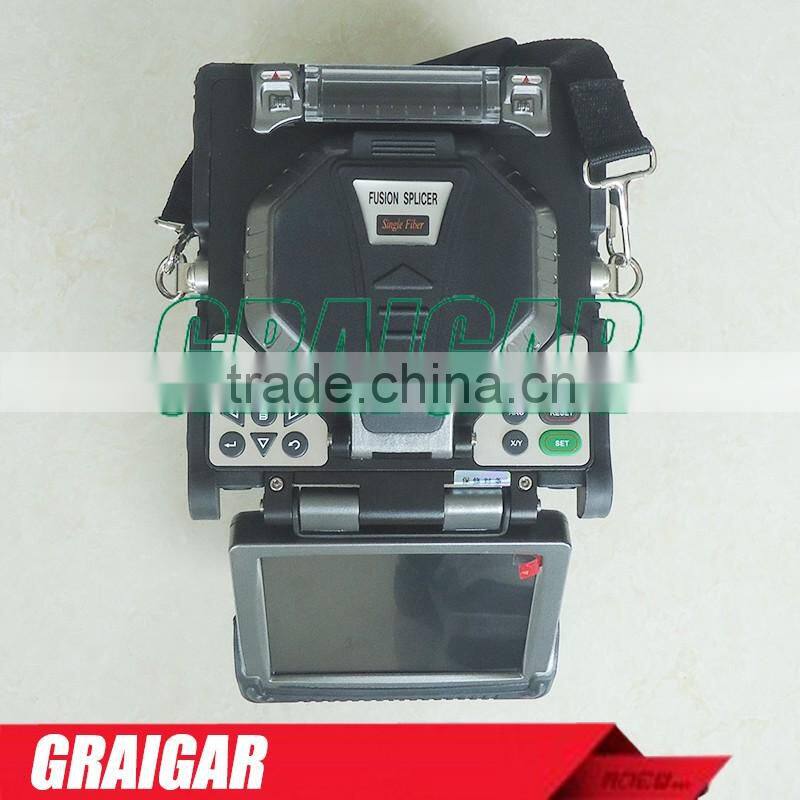

NEW Ruiyan RY-F600P FTTH Fiber Optic Splicing Machine Fusion Splicer
optic fiber welding machine RY-F600P with fiber cutting machine
whatsapp:+8615919764496
RY - F600 FTTH fiber welding machine is a new design of optical fiber devices. Specifically for the environment of FTTH fiber connection application; Lightweight airframe and shockproof, prevent fall protection coat to bring greater convenience engineering personnel daily work; New imaging system as well as pure digital processing technology, make the image more delicate, clear; Friendly operation interface, clear, rich internal functions, engineering skill with people; Built-in high capacity lithium battery for long time field work improved the more reliable guarantee.
Main features:
1. FTTH environmental adaptation, can also be used in ordinary optical fiber engineering

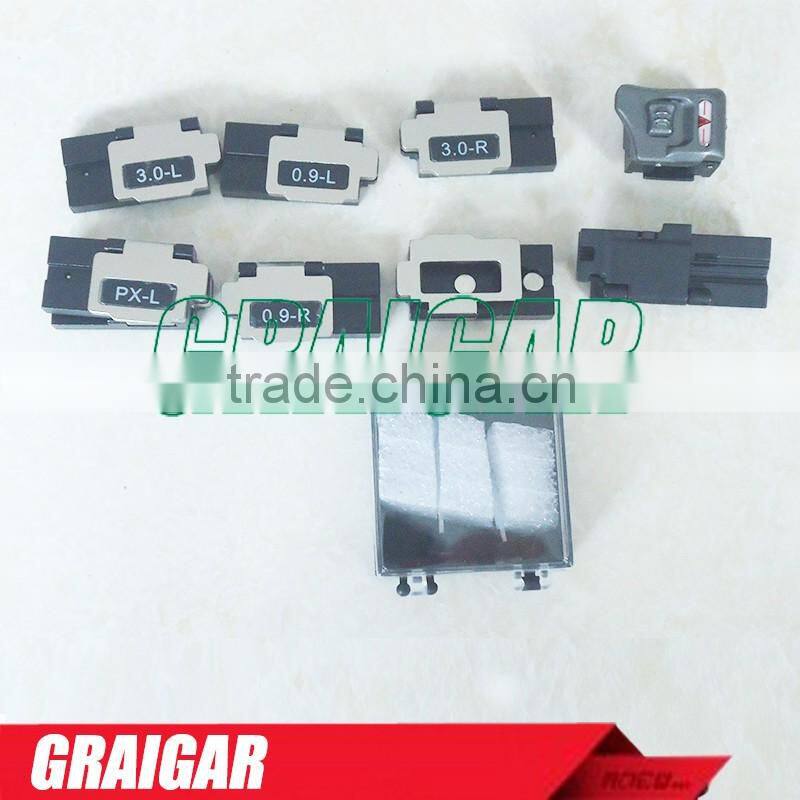

2. A new optical fiber fixture design, make the fiber positioning more accurate and more convenient
3. High performance 5.1 -inch color LCD display, provide high-definition digital image display
4. Adopting full digital processing technology, the function of automatic focus
5. Strong optical magnification of 310 times, fiber core can be clearly seen
6. The X axis and Y axis, according to independent or X/Y axis shows at the same time.
7. Variety of core fiber core alignment, cladding alignment
8.8 secondsWelding time, 32 seconds heating time
9. The large capacity of 9000 mah lithium batteries, can complete 220 times in the welding and thermal shrinkage.
10. The real-time accurate display battery allowance
Specification:
Model |
RY-F600P |
Applicable fibers |
SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655) |
Fiber cleaved length |
10 ~16mm (Coating diameter<250µm);16mm(Coating diameter250~1000µm) |
Fiber diameter |
Cladding diameter:80 ~150µm , Coating diameter:100 ~1000µm |
Auto focusing |
Available |
Fiber aligning method |
Core aligning, clad aligning, manual aligning |
Average splice loss |
0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB( NZDS) |
Splicing time |
Typical 9 sec,with standard SM fiber |
Heating time |
Typical 35 sec |
Applicable sleeves |
60mm, 40mm and a series of micro sleeves |
Tension test |
2N(option) |
Electrode lifetime |
5000 times, replaceable |
Battery capacity |
Typical 400 cycles (splice and heat) |
BatteryLifetime |
Cycle life up to 300~500 times |
Monitor |
5.1 inch TFT color monitor |
Terminal |
USB 1.1 and VGA , software upgrade via USB interface |
Operating condition |
0 ~ 5000m above sea level, 0 ~ 95%RH and -10~50oCC, respectively, Max. wind velocity of 15m/s |
Splicing mode |
Auto , half-auto, manual |
Fiber cleaved angle threshold set |
0.1 ~ 10.0 oC , 0.1oCstep |
Power supply |
Li-battery 11.8V , AC100-240V DC13.4V/5.0A |
Dimension |
L169*W152*H155mm |
weight |
2.4kg (not battery) 2.9kg(battery) |

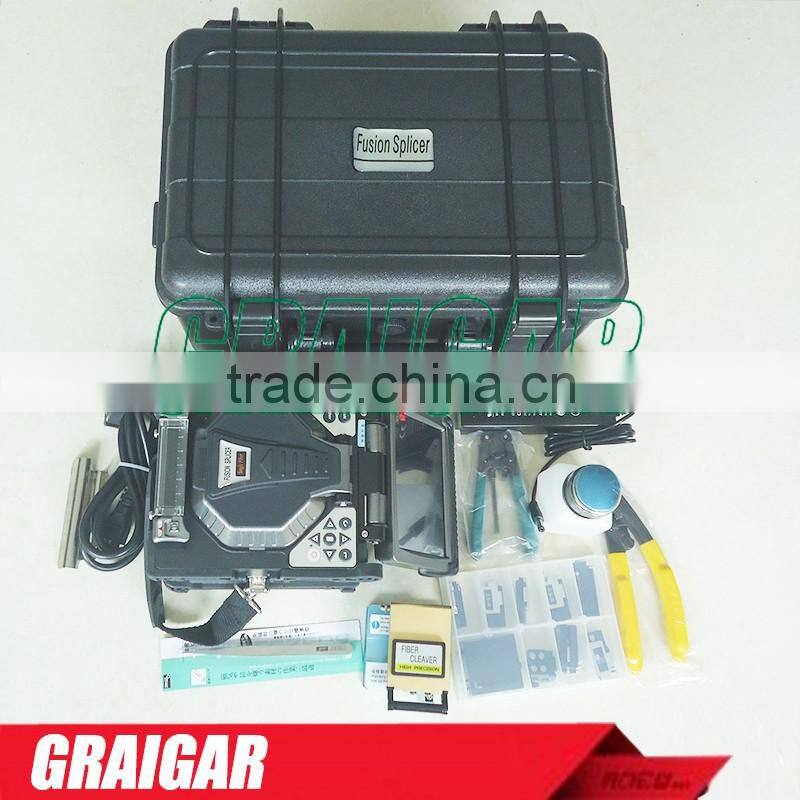

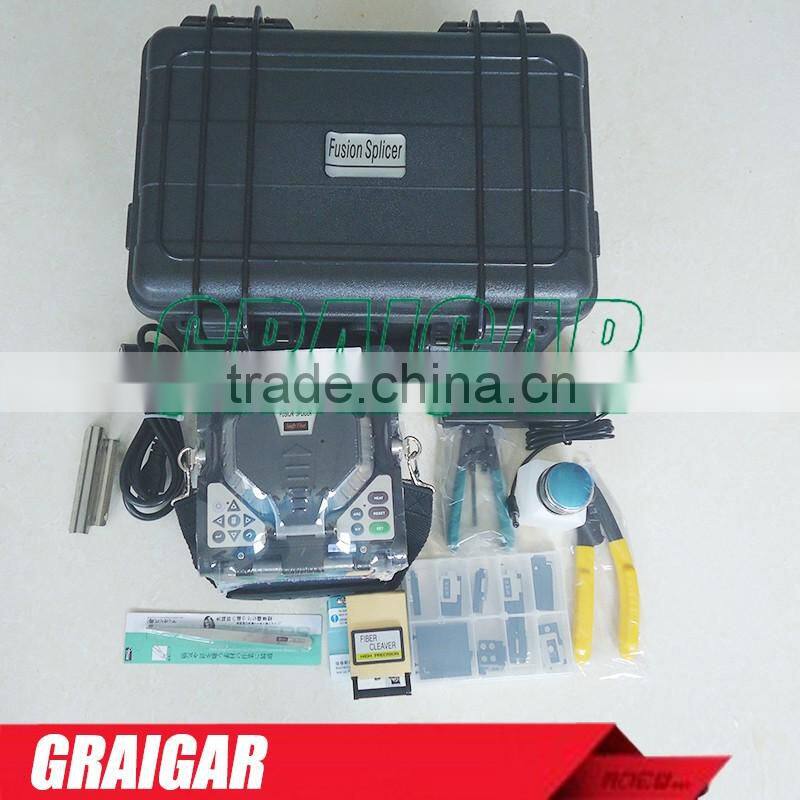

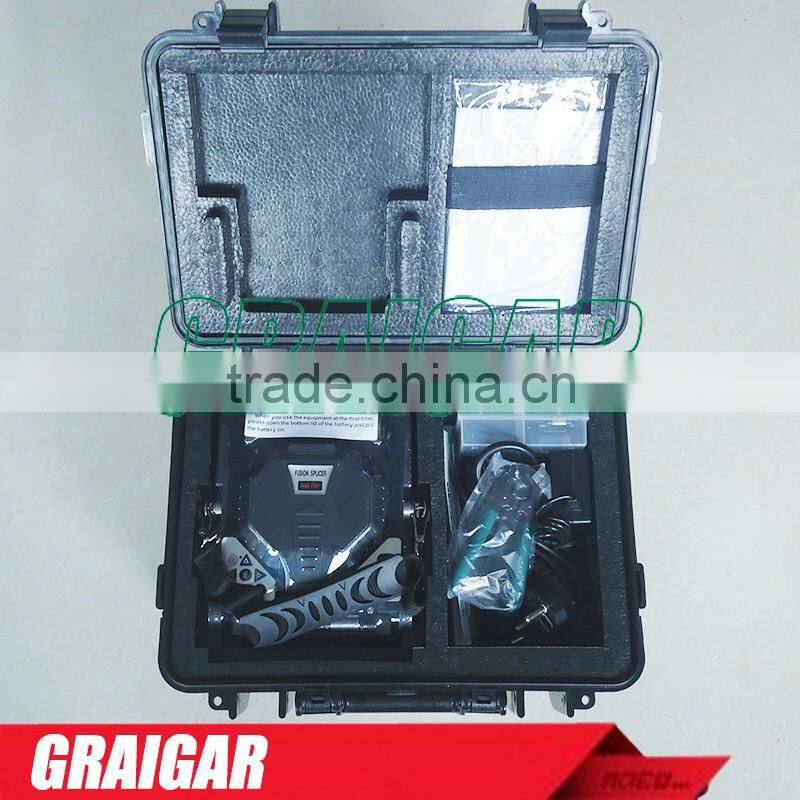

Package List
1 x RY-F600 Host machine
1 x charger
1 x Built-in lithium battery
1 pair x Standby electrode
1 x Cooling rack
1 x user's manual

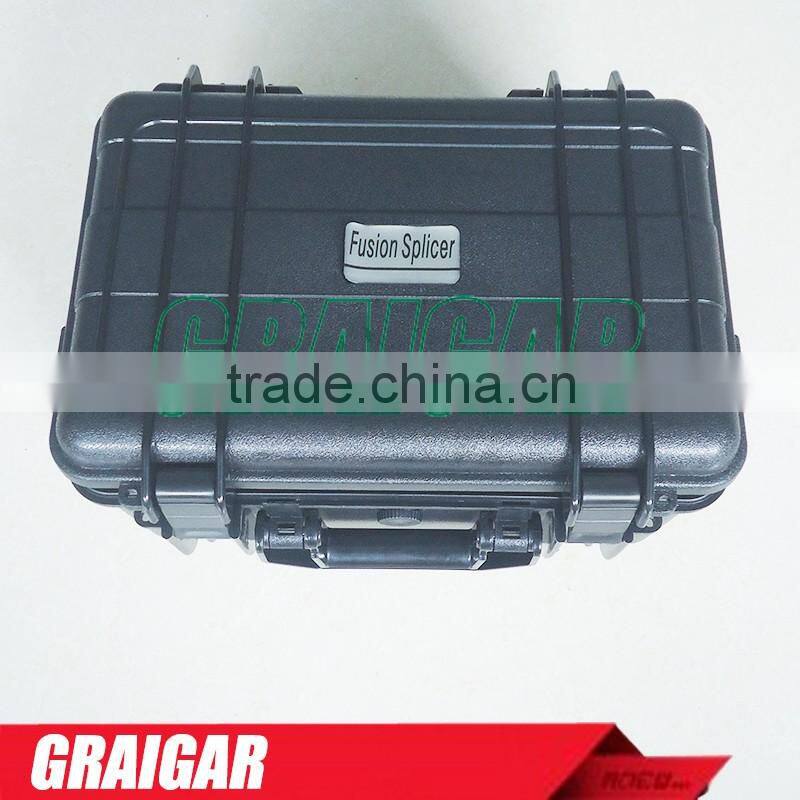

1 x Carrying Case

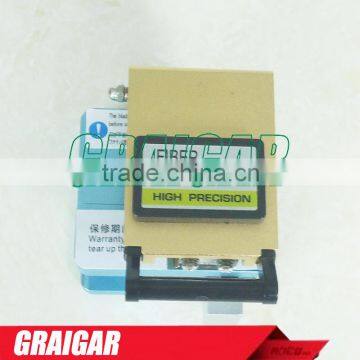

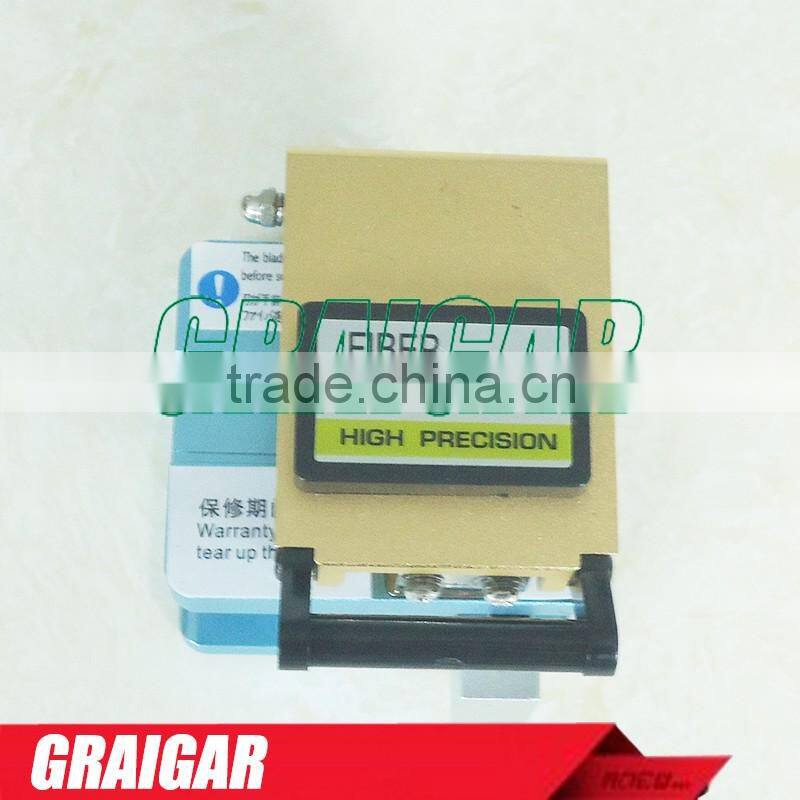

1 x RY-6S fiber cleaver
1 x Alcohol Bottle
1 x Optical tweezers
1 x Miller clamp
