Dredging Cutting Wheel
High-efficiency High production Dredging Cutting Wheel Features :
The standard range of Dredging Cutting Wheels is divided into a hydraulic line and an electric line. The selection of the right cutting wheel for the required dredging task is dependent on various factors, such as:
1. Mechanical and chemical properties of the soil to be dredged
2. Available torque and speed of the cutting wheel
3. Kinematics and shape of the cutting tool
4. Kinematics of the dredger (side winch force and speed, spud position, spud feed, dredging depth, etc.)
Please contact us if you require support with the selection of the Dredging Cutting Wheels.

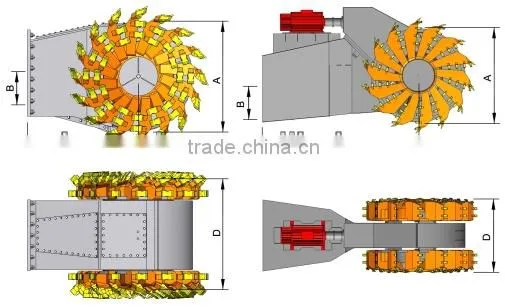

dimensions of dredging cutting wheel
Technical specifications
Hydraulic line:
A [mm] |
B [mm] |
C [mm] |
D [mm] |
Nominal power at wheel [kW] |
Maximum revolution [rpm] |
Effective soil output [m3/h] |
Weight [kg] |
Ø 800 |
150-250 |
850 |
1000 |
30-50 |
30 |
180 |
2.700 |
Ø 1250 |
250-300 |
1050 |
1130 |
65-110 |
26 |
220 |
3.500 |
Ø 1800 |
300-450 |
1620 |
1590 |
120-150 |
22 |
440 |
7.000 |
Ø 2500 |
400-650 |
2045 |
2300 |
230-350 |
20 |
1000 |
20.000 |
Ø 3350 |
600-850 |
2800 |
3000 |
400-500 |
16 |
2100 |
40.000 |
All sizes are approximate. Other types available on request. | |||||||
Electric line:
Type |
A [mm] |
B [mm] |
C [mm] |
D [mm] |
Nominal power at wheel [kW] |
Maximum revolution [rpm] |
Effective soil output [m3/h] |
Weight [kg] |
UCW 400 |
Ø 4000 |
600-850 |
4900 |
2800 |
500-750 |
13,5 |
2400 |
80.000 |
UCW 450 |
Ø 4500 |
800-1000 |
5800 |
3200 |
750-1000 |
13,0 |
3000 |
98.000 |
UCW 520 |
Ø 5200 |
850-1000 |
6000 |
4000 |
1000-1500 |
10,0 |
3900 |
186.000 |
UCW 600 |
Ø 6000 |
900-1200 |
6500 |
4500 |
1500-2000 |
7,0 |
5200 |
198.000 |
All sizes are approximate. Other types available on request. | ||||||||

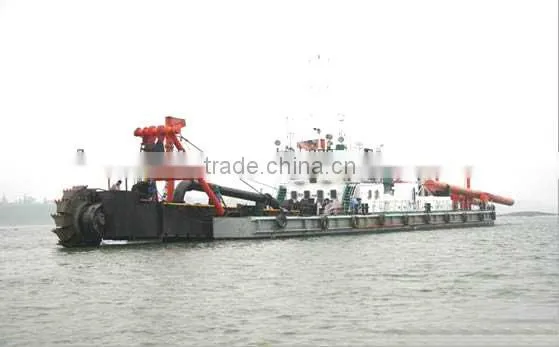

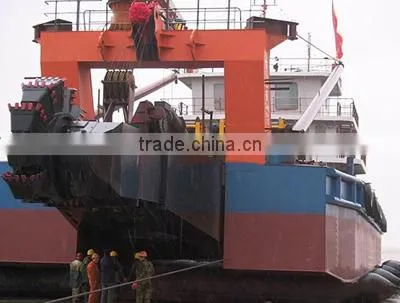

dredging cutting wheels on dredger
bucket-wheelsuctiondredger
