Active Drag Head
Universal TSHD Active Drag Head Features and Performance:
Active drag head is connected by hydraulic device between adjust cover and main part on drag head, when dredging in control cabinet adjust interval between adjust cover and seabed through hydraulic cevice to get the most suitable sucking pressure and play the most efficient dredging efficiency.
Hydraulic power components on active drag head can be installed directly on drag head, just need to connect control line and power line, then can easily adjust in control cabinet; Hydraulicpower components can also be installed in the cabin deck, need connect hydromantic oil pipe to hydraulic cylinder on drag head.
Optional monitoring measuring system the hydraulic cylinder on the hydraulic cylinder, quipped signal cable, can be accurate settings according to the circumstance in control cabinet when in work.

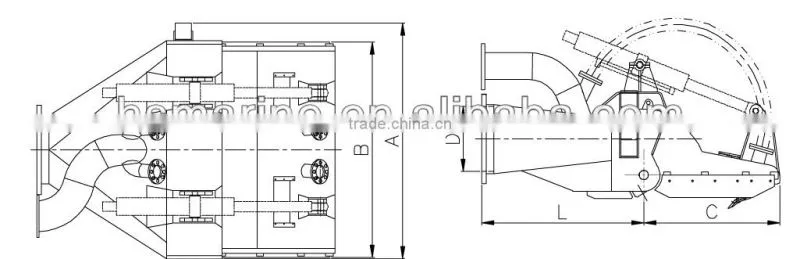

structural drawing
Technical Specifications
Pipe Dia.(mm) |
L(mm) |
C(mm) |
A(mm) |
B(mm) |
550 |
1525 |
1100 |
1800 |
1560 |
650 |
1900 |
1240 |
2650 |
2550 |
750 |
1950 |
1300 |
2810 |
2700 |
800 |
2000 |
1550 |
2940 |
2750 |
900 |
2350 |
1650 |
3200 |
2850 |
1000 |
2850 |
1760 |
3700 |
3520 |
1200 |
3300 |
1850 |
4240 |
3700 |
NOTE:Providing rake head series of all specifications and dimensions, customization is available.

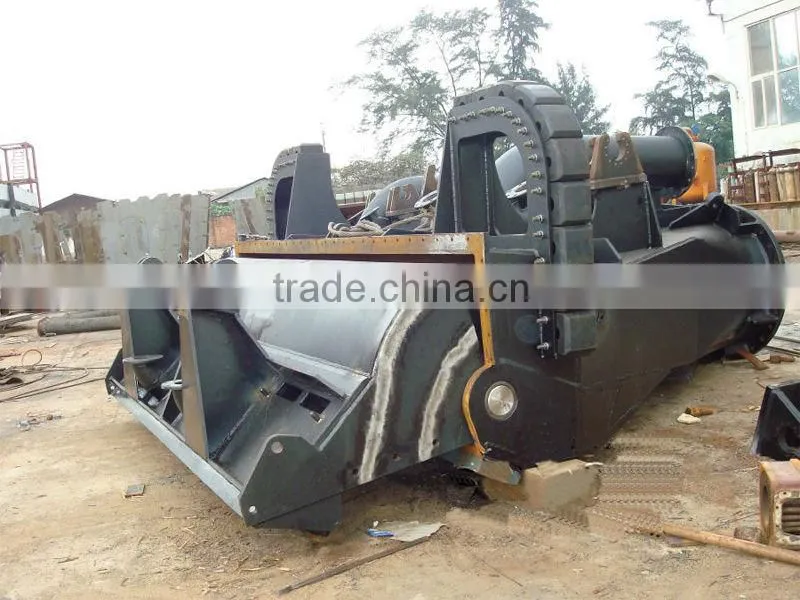

Active Drag Head in factory

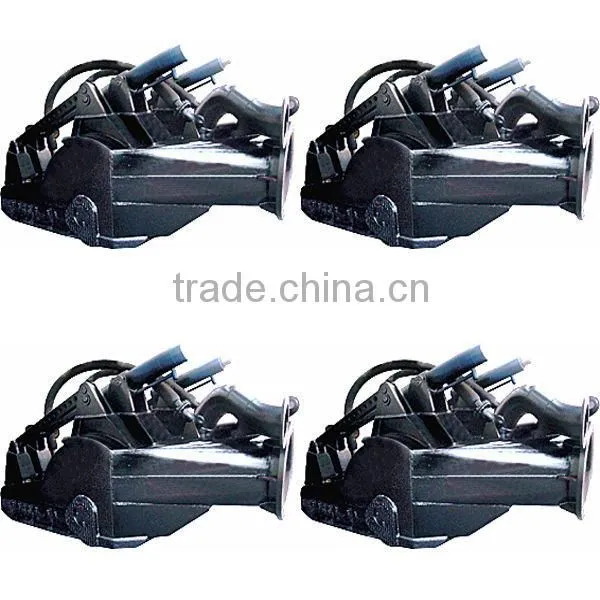

Active Drag Head in storehouse
