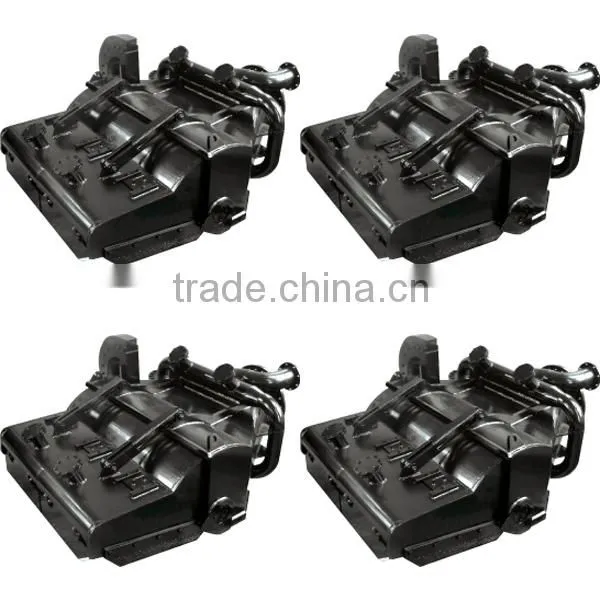

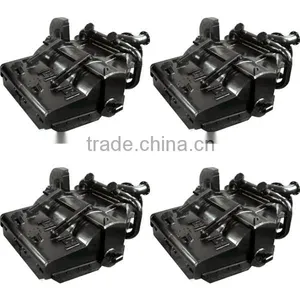

Fixed Turbulence Type Drag Head
High-efficiency Soft Soil Fixed Turbulence Type Drag Head Features and Performance :
Adjustable fixed feet slip of fixed tyrbulence type drag head at the end of agjust cover is used to set the interval between adjust cover and seabed or between adjust cover and support frame, there is fixed adjustable device used to set the interval between adjust cover and seabed, convenient for the support of dredge water when harrow head working, there is adjustable water inlet on adjust cover, in order to provide more dredge water when dredging soft soil.
Drag head of this type can dredg high concentrations of mud of various soil types, its characteristic is main body weight relatively light and drag force is small.
structural drawing
Technical Specifications
Pipe Dia.(mm) |
L(mm) |
C(mm) |
A(mm) |
B(mm) |
420 |
1300 |
1000 |
1600 |
1340 |
600 |
1560 |
1190 |
1850 |
1560 |
700 |
1935 |
1255 |
2700 |
2600 |
800 |
2000 |
1550 |
2940 |
2750 |
900 |
2350 |
1650 |
3200 |
2850 |
1200 |
3300 |
1850 |
4240 |
3700 |
NOTE: We can provide other siaze and type harrow head caaording to requirements of user.
Fixed Turbulence Type Drag Head on TSHD
