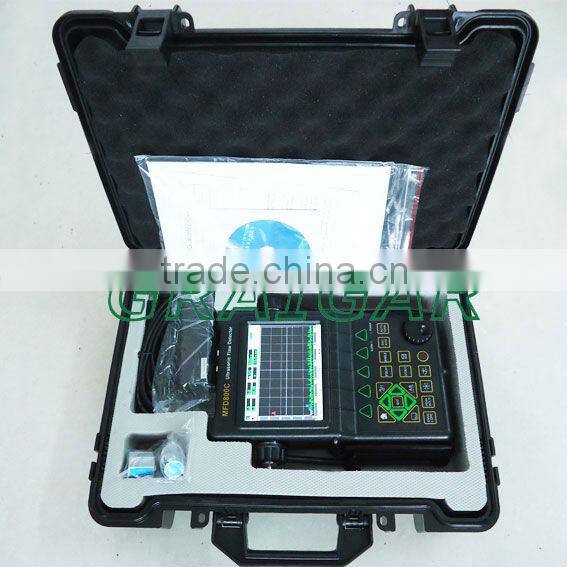

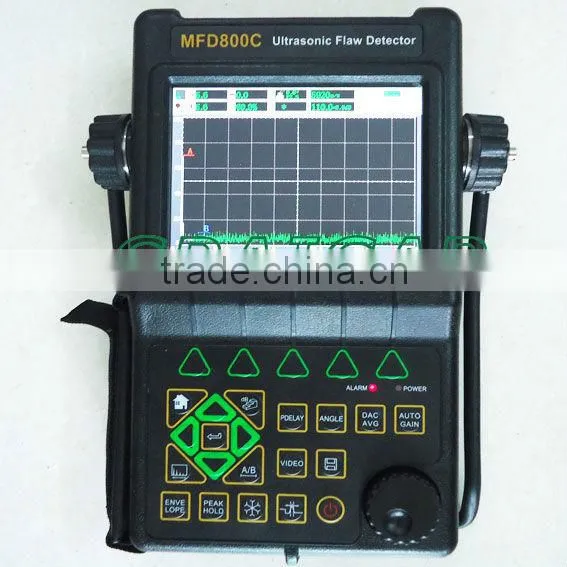

MFD800C Ultrasonic Flaw Detector
KEY FEATURES
The MFD800C is an advanced digital ultrasonic flaw detector featuring a multi-color TFT LCD and a host of new features to meet challenging inspection requirements. It combines powerful flaw detection and measurement capabilities, extensive data storage, and the ability to transfer detailed inspection data to the PC via its high-speed USB port.
The instrument incorporates many advanced signal processing features including a 15MHz RF bandwidth to permit testing of thin materials, narrowband filters to improve signal to noise in high gain applications, a spike pulser for applications requiring higher frequencies, and a tunable square wave pulser to optimize penetration on thick or highly attenuating materials.
The instrument can be widely used in locating and sizing hidden cracks, voids, disbands, and similar discontinuities in welds, forgings, billets, axles, shafts, tanks and pressure vessels, turbines, and structural components.
RANGE
Up to 9999 mm in steel; range selectable in fixed steps or continuously variable.
Pulser
Pulse Energy selectable among 200V, 300V, 400V, 500V and 600V..
Pulse Width tunable from 0.1µs to 0.5 µs to match the probes with different frequency.
Pulse Repetition Frequency adjustable from 10 Hz to 1 KHz in 1 Hz increments.
Damping selectable among 68Ω,100Ω,150Ω and 500Ω for optimum probe performance
Test Modes include Pulse echo, dual and thru-transmission
Memory
Memory of 1000 channel files to store calibration set-ups
Memory of 10000 wave files to store A-Scan patterns and instrument settings.
Video Recorder
Screen scenes can be captured as movie files. More than 10 hours movie can be saved to the inside memory. They can be re-played using the instrument or the PC software delivered with the instrument.
Video Recorder is useful in many situations, it is very convenient for those who want to analyze the probing activities later.
FUNCTIONS
Semiautomatic two point calibration: Automated calibration of transducer zero offset and/or material velocity
Flaw Locating:Live display Sound-path, Projection (surface distance), Depth, Amplitude,
Flaw sizing: Automatic flaw sizing using AVG/AVG or DAC, speeds reporting of defect acceptance or rejection.
Digital Readout and Trig. Function: Thickness/Depth can be displayed in digital readout when using a normal probe and Peam path, Surface Distance and Depth are directly displayed when angle probe is in use.
Both the DAC and the AVG method of amplitude evaluation are available.
AWS D1.1.
Curved Surface Correction feature
Crack Height Measure function
Weld figure feature
Magnify gate:spreading of the gate range over the entire screen width
Video Recording and play
Auto-gain function
Envelope: Simultaneous display of live A-scan at 60 Hz update rate and envelope of A-scan display
Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.
A Scan Freeze:Display freeze holds waveform and sound path data
B Scan display feature
COMMUNICATION
High speed USB2.0 port. Two USB modes can be selected: U-DISK and U-BRIDGE. In U-DISK mode, the instrument acts as a usb flash disk when connected to pc. Configuration files, saved pictures and recorded movies can be copied to pc when possible. In U-BRIDGE mode, the instrument exchanges data with DataPro Software. The optional DataPro software helps manage and format stored inspection data for high-speed transfer to the PC. Data can be printed or easily copied and pasted into word processing files and spreadsheets for further reporting needs. New features include live screen capture mode and database tracking.
SPECIFICATIONS
l Range: 0 to 9999 mm, at steel velocity
l Material Velocity: 1000 to 9999m/s
l Display Delay: -20 to 3400 µs
l Probe Delay/Zero Offset : 0 to 99.99µs
l Sensitivity: 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB and locked.
l Test Modes: Pulse echo, dual element and thru-transmission
l Pulser: Tunable Square Wave Pulser
l Pulse Repetition Frequency ranges from 10 Hz to 1000 Hz
l Pulse Energy: 200V, 300V, 400V, 500V, 600V selectable
l Bandwidth (amplifier bandpass ): 0.5 to 15 MHz
l Gate Monitors: Two independent gates controllable over entire sweep range
l Rectification: Positive half wave, negative half wave, full wave, RF
l System Linearity: Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB.
l Reject (suppression): 0 to 80% full screen height
l Units: Inch or millimeter
l Transducer Connections: BNC or LEMO
l Power Requirements: AC Mains 100-240 VAC, 50-60 Hz
l Operating Temperature: -10°C to 50°C
l Storage Temperature: -30°C to 50°C
Standard Configuration
No. |
Item |
Qty. |
1 |
Portable Ultrasonic Flaw Detector with multi-color TFT LCD Display |
1 |
2 |
Straight Beam Transducer (4 MHz, Φ10) |
1 |
3 |
Angle Beam Transducer (4 MHz, 8 mm×9 mm, 60°) |
1 |
4 |
Interconnect Cable for the transducer (Q9-C5,or optional C9- C5) |
1 |
5 |
Rechargeable Li-Ion Battery Package, 8.8 amp hour |
1 |
6 |
Power supply/charger unit |
1 |
7 |
Handle |
1 |
8 |
Operating Manual in English |
1 |
9 |
Datapro Software |
1 |
10 |
USB Cable (Model: MUSB01) |
1 |
