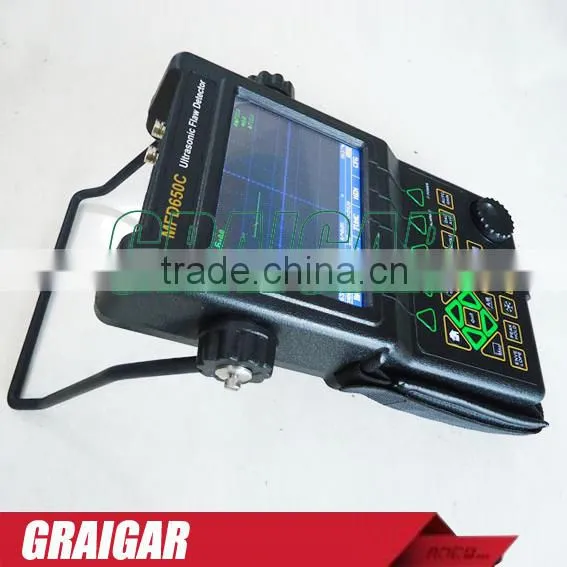

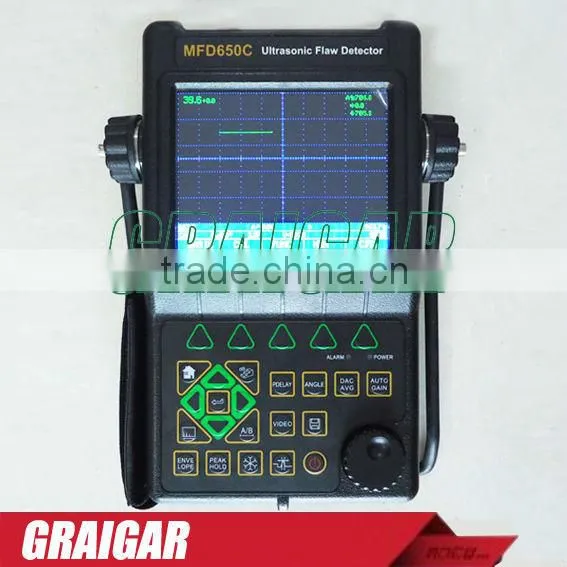

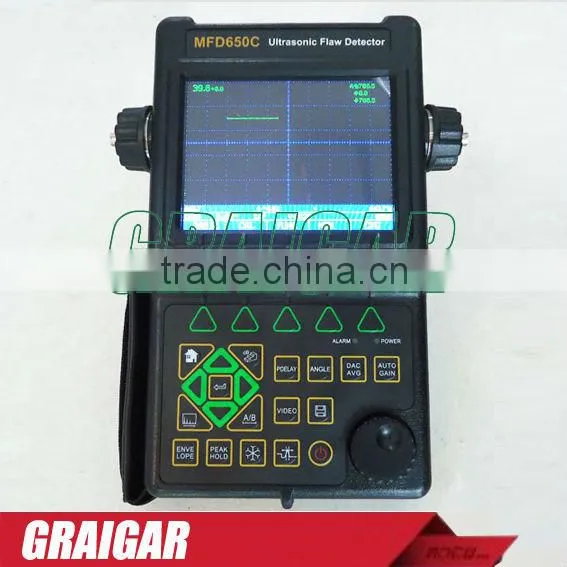

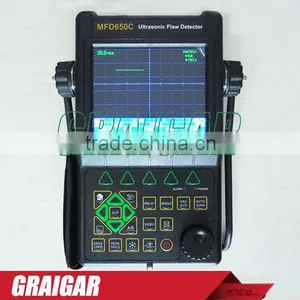

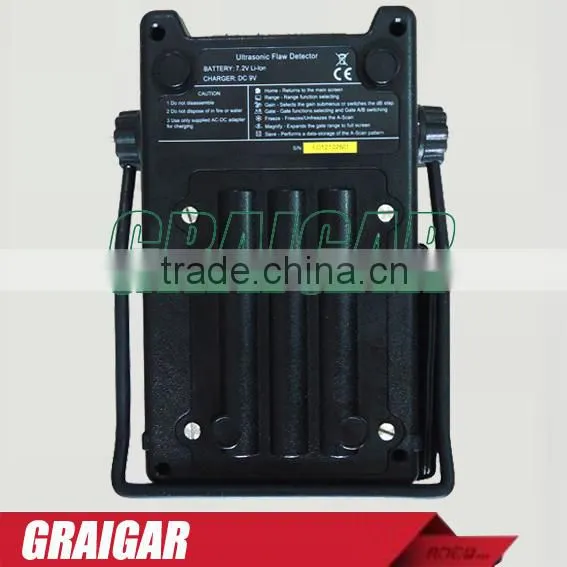

MFD650C Portable Ultrasonic Flaw Detector with hi-resolution color TFT LCD display.
The background color and the wave color can be selectable according to the environment. LCD brightness can be manually set. Continue working over 8 hours with high performance lithium-ion battery module (with large capacity lithium-ion battery option), easy to be dismantled and the battery module can be charged independently offline. It is light and portable, easily to be taken by one hand; easy operation; superior reliability makes it long life.



RANGE



0~ 9999mm (at steel velocity); range selectable in fixed steps or continuously variable.



PULSER



Spike excitation with low, middle and high choices of the pulse energy.



Pulse Repetition Rate: manually adjustable from 10 to 1000 Hz.



Pulse width: Adjustable in a certain range to match different probes.
Damping: 200Ω, 300Ω, 400Ω, 500Ω, 600Ωselectable to meet different resolution and sensitivity need.
Probe work mode: Single element, dual element and through transmission;



RECEIVER



Real-time sampling at 160MHz high speed enough to record the defect information.
Rectification: Positive half wave, negative halfwave, full wave, and RF



DB Step: 0dB, 0.1 dB, 2dB, 6dB step value as well as auto-gain mode



ALARM
Alarm with sound and light,.



Memory



Total 100 configuration channels store all instrument operating parameters plus DAC/AVG curve; stored configuration data can be easily previewed and recalled for quick, repeatable instrument setup. Total 1000 datasets store all instrument operating parameters plus A-scan. All the configuration channels and datasets can be transferred to PC via USB port.
FUNCTIONS



Peak Hold:



Automatically searching the peak wave inside the gate and hold it on the display.



Equivalent diameter calculation: find out the peak echo and calculate its equivalent diameter.



Continuous Record: Record the display continuously and save it to the memory inside the instrument.



Defect Localization: Localize the defect position, including the distance, the depth and its plane projection distance.



Defect Sizing: calculate the defect size



Defect Evaluation: Evaluate the defect by echo envelope.



DAC: Distance Amplitude Correction



AVG: Distance Gain Size curve function



Crack measure: Measure and calculate the crack depth



B-SCAN: Display the cross-section of the test block.



REAL-TIME CLOCK
Real time clock for tracking the time.



COMMUNICATION
USB2.0 high-speed communication port



SPECIFICATIONS



Channels: 100 channels
Range: (0 ~ 9999) mm
Bandwidth: (0.5 ~ 15) MHz
Material Velocity: (300 ~ 15000) m / s
Dynamic Range: ≥ 36dB
Vertical linear error: ≤ 2.5%
Horizontal linear error: ≤ 0.1%
Resolution:> 40dB (5P14)
Sensitivity Leavings: 65dB (flat-bottomed deep hole 200mmΦ2)
Rejection: (0 to 80)% Linear
Noise level: ≤ 8%
Power supply: DC 9V; lithium batteries work for 8 hours or more
Ambient temperature: (-20 ~ 50) °C
Relative Humidity: (20 ~ 95)% RH
Overall dimensions: 263 × 170 × 61 (mm)

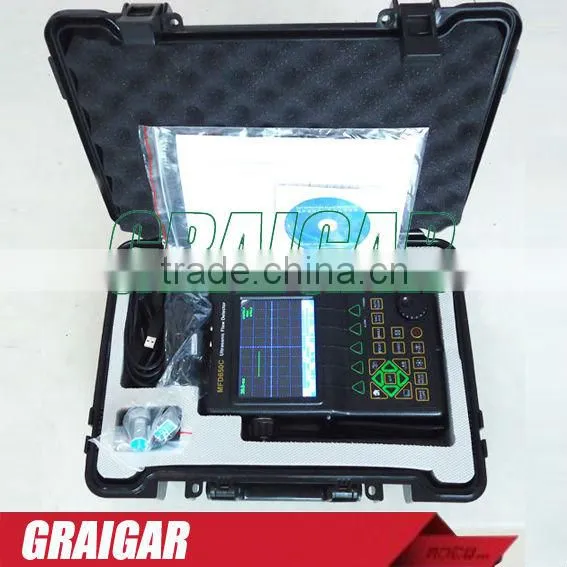

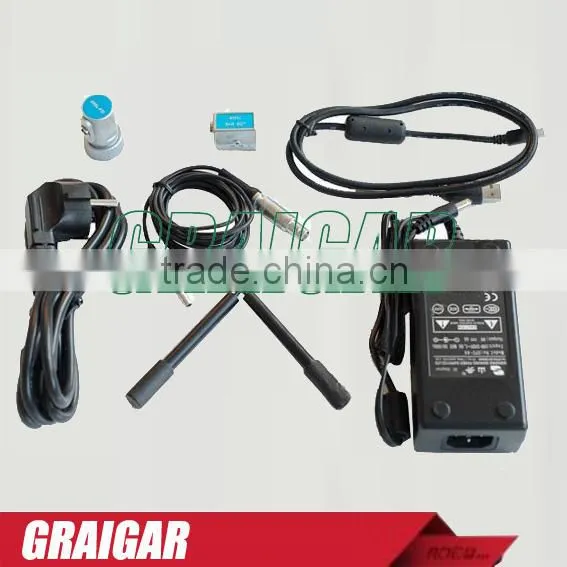

Standard Configuration



No.	Item	Quantity
1	Main Body	1
2	Straight Beam Probe 4P,10mm	1
3	Angle Probe 4P 8*9 60°	1
4	Machine-probe Cable	1
5	Battery Module	1
6	Power Adapter (Charger)	1
7	Manual	1

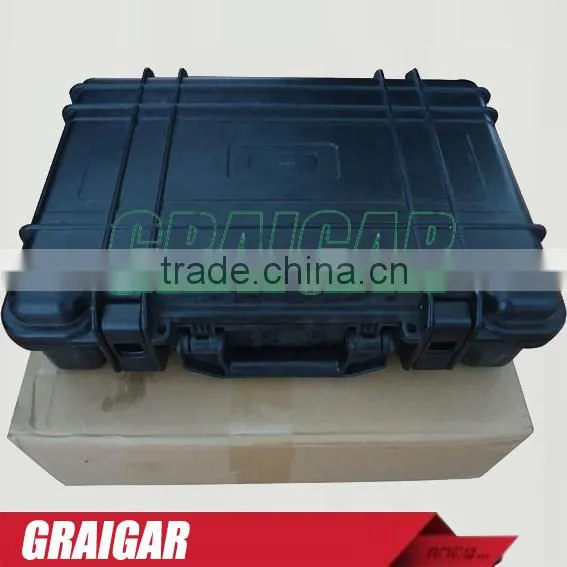

8	Instrument Case	1
9	Datapro Software	1
10	USB communication Cable	1
