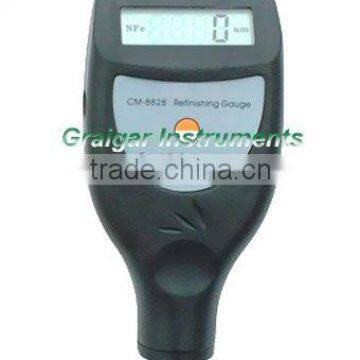

Help CenterCoating Thickness Meter CM-8828 (F&NF Type) Auto Car Coating Thickness Meter
Related Products
-
Coating Thickness Meter CM-8829 (F/NF/FN Type)NegotiableMOQ: 1 Set -
Digital Thickness Meter CM10FHNegotiableMOQ: 1 Piece
-
Digital Thickness Meter CM10FNegotiableMOQ: 1 Piece
-
Coating Thickness Meter Tester Gauge CM10FNegotiableMOQ: 1 Piece
-
TASI-675 Digital Coating Thickness Gauge Painting Width Detectable Substrate Material Ferrous Metal as Iron, SteelUS$ 180 - 260MOQ: 1 Piece
Specifications
thickness meter, thickness tester, ultrasonic thickness gauge,coating thickness gauge, coating thickness testerCoating Thickness Meter CM-8829 (F/NF/FN type)
Coating thickness meter is widely used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.In industries of petroleum,shipbuilding,power station,and machine manufacturing.
With separate probe (please specify probe type, in built or separate while ordering)
Operating principle:
CM-8829F: F type(magnetic induction), measure the thickness of non-magnetic coating layers such as (aluminum,chrome,copper,ename1,rubber,paint) on magnetic substrate (steel, iron, alloy and magnetic steel)
CM-8829NF: NF type (eddy current), measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)
CM-8829FN: F type & NF typeSpecifications:
In built probes
Measuring range: 0-1250um/0-50mil
Resolution: 0.1/1
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AAA(UM-4)battery
Auto power off
Operating conditions: 0-+45C(32F-104F), ≤90%RH
Dimensions: 126x65x27mm (5x2.6x1.07 inch)
Weight: 115g / 0.25lb (not including battery)
Optional accessories: other range 0-200um to 15000um
