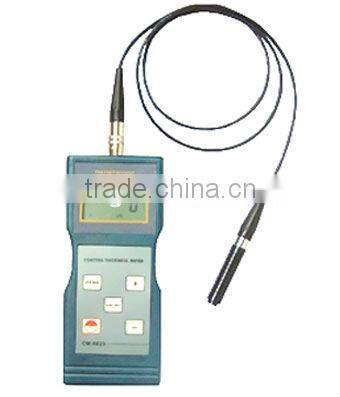

thickness meter, thickness tester, ultrasonic thickness gauge,coating thickness gauge, coating thickness tester CM-8823Coating Thickness Meter CM-8823 (only NF)
Coating thickness meter is widely used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.In industries of petroleum,shipbuilding,power station,and machine manufacturing.
Operating principle: NF type
NF type(eddy current), measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)
Specifications:
Measuring range: 0-1000um
Resolution: 0.1/1
Accuracy: +/-1-3%n or +/-2.5um
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AA (UM-3)battery
Auto power off
Operating conditions: 0-+45C(32F-104F), ≤90%RH
Dimensions: 160x68x32mm (6.3x2.7x1.3 inch)
Weight: 250g / 0.55lb (not including battery)
Optional accessories: other range 0-200um to 15000um.
