Specifications

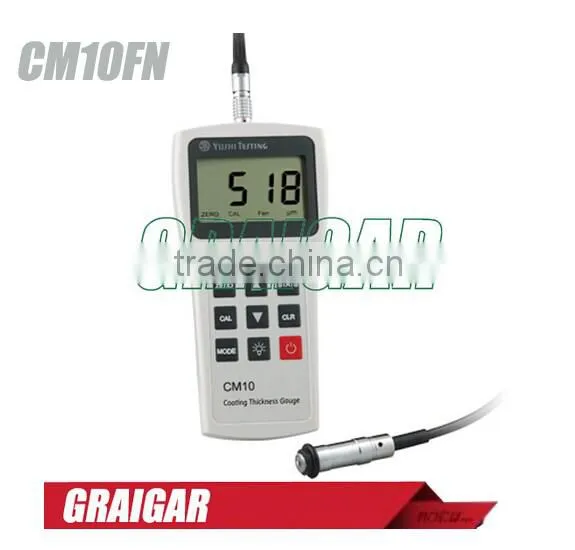

CM10FN Coating Thickness Gauge Meter Tester CM-10FNMeasuring Range(um) P1(0-3000), P2(0-2000)
CM10FN Coating Thickness Gauge Meter Tester CM-10FNMeasuring Range(um) P1(0-3000), P2(0-2000)
Magnetic Method (Fe): Measuring the thickness of non- magnetic coatings on steel, iron and other ferromagnetic metal substrates, e.g. painting, varieties of anti-corrosion coatingpowder spraying, plastic, rubber, syntheticmaterial, phosphate coating, chromium, zinc,Aluminum, tin and cadmium, etc.
Eddy Current Method (NFe):
measuring the thickness of non-conductive
coatings on copper, aluminum, stainless steel
and other non-ferromagnetic substrates, e.g.
painting, varieties of anti-corrosion coating
,powder spraying, plastic, rubber, synthetic
material, oxide film and phosphate film, etc.
Probe Type:P1,P2,
Working principle:P1 Magnetic Method ,P2 Eddy Current Method,
Measuring Range(um) :P1(0~3000), P2(0~2000), )
Low range sensitivity (um) :0.1( P1), 0.1(P2),
Tolerance:
One-point Calibration(um) :±(2%H+2) P1, ±(2%H+2)P2,
Two-point Calibration(um) :±((1~3)%H+1) P1, ±((1~3)%H+1.5)P2,
Testing Condition:
Min.Curvature Radius(mm):1.5 ( P1), 3(P2), 10(P3), 1(P4)
Min.Measuring Surface(mm): 7( P1), 5(P2), 40(P3), 3(P4)
Min.Substrate Thickness(mm): 0.5( P1), 0.3(P2), 2(P3), 0.2(P4)
Display: High Contrast Segment Liquid Crystal Display (LED Backlight)
Statistics: N, MAX, MIN, MEAN and STD.DEV
Calibration: One-point Calibration,Two-point Calibration
Auto Power-off: Auto off after 3 minutes of inactivity;
Power: 2AA 1.5V batteries,low-voltage indication function
Weight: 200g
Size: 149mm×73mm×32mm (H×W×D)
