Specifications
plastic film blowing machine1. HDPE/LDPE/LLDPE
2. Quality guarantee
3. Easy operation
4. welcome to purchase

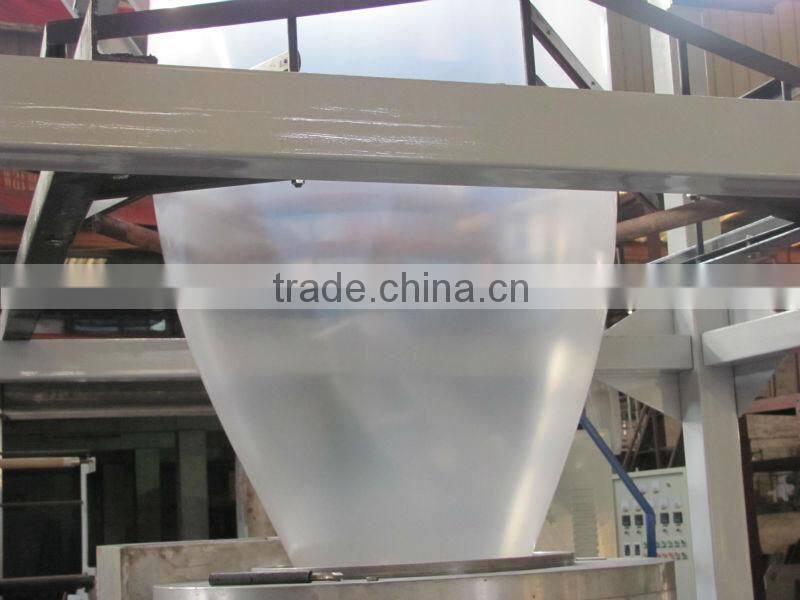

1. HDPE / LDPE Plastic film blowing machine
Features:
1) It is used for blowing high-low pressure polyethylene, which has been widely
used for producing laminating films, packing films, agricultural covering films,
bags or films for textile and clothing and other packing materials

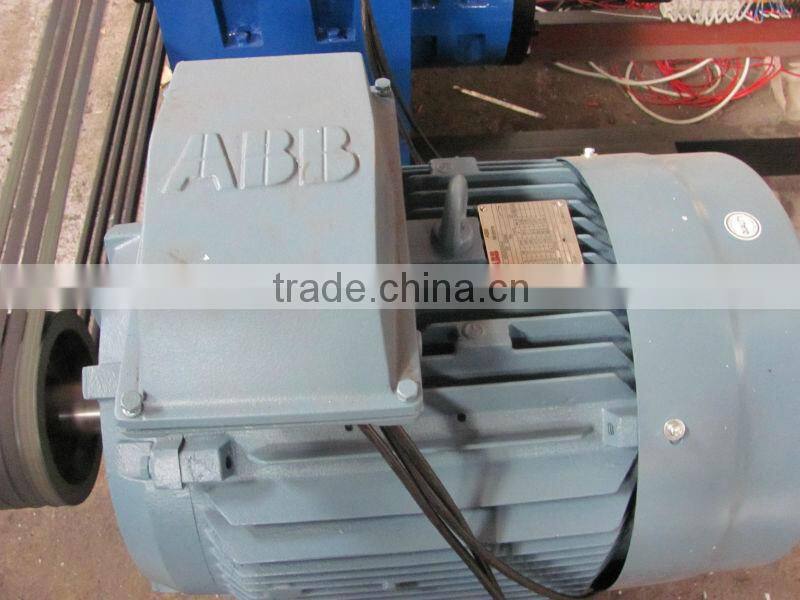

2) The main motor adopts frequency control of motor speed to improve the speed
regulating stability of main motor and save electricity by 30%
3) The screw and material barrel adopt 38 chrome-molybdenum aluminum which has
been nitrogen treated and the traction frame adopts lifting type
4) No matter what size the film is, big or small, it can achieve the best effect
of cooling

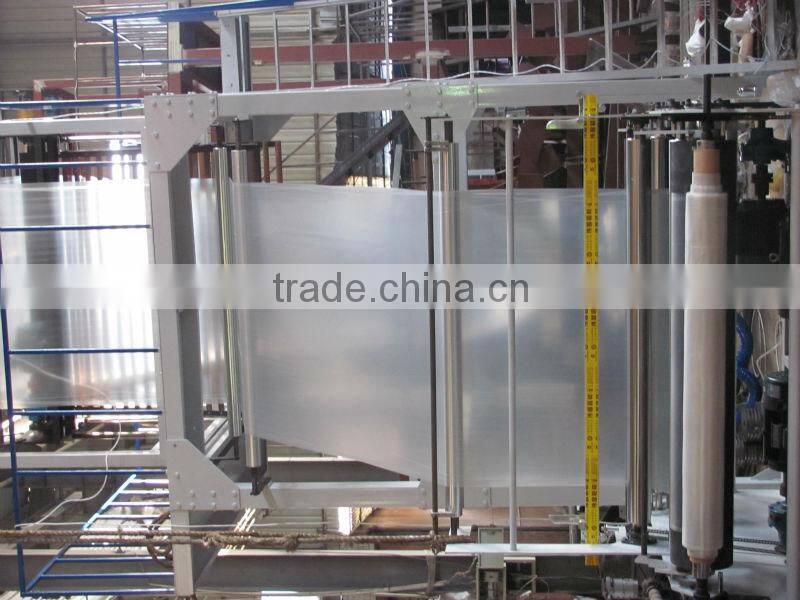

5) Double-cutting and double-rolling: it adopts three torque motors, which can
keep appropriate tension to make rolling even and coil changing easy

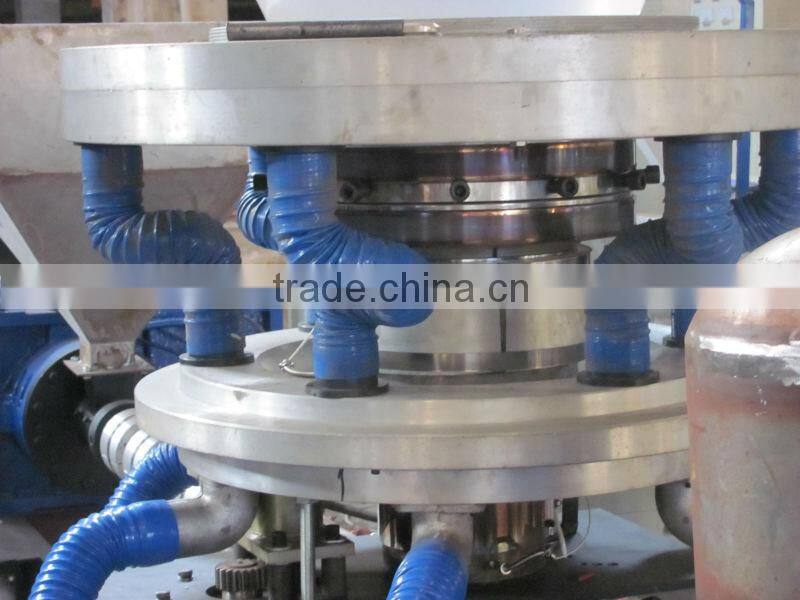

6) Rotary machine head: it can make the thickness of film even and the rolling surface
smoother and more even, and it is specially suitable for producing laminating
films and printing films
2. Main technical Data
Model |
SJ A-1800 |
Screw Diameter |
90 mm |
Screw Ratio(L/D) |
28:1 |
Screw Speed |
10-100r/min |
|
Power of Main Motor Max Output |
45Kw 160kg/h |
Max.Folding Width of Film |
2000mm |
Single-sided Thickness of Film |
0.01-0.10mm |
Total Power |
60 Kw |
Weight of Machine |
8000KGS |
Overall Dimensions |
6200 x 3400 x 8000mm |

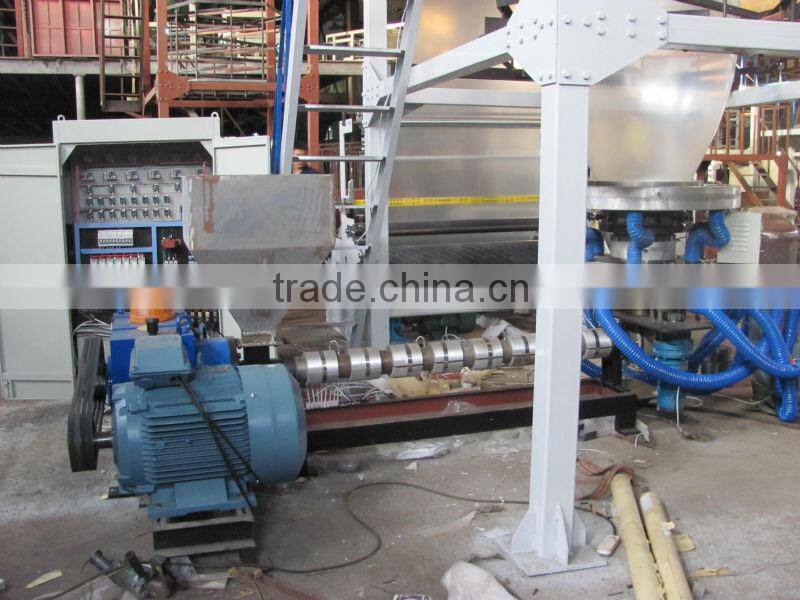

3. WORKSHOP
4. PRODUCTS
