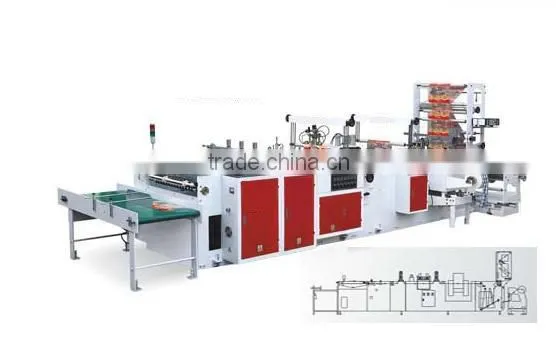

Help CenterFT-800SP Rope-Threading,Patching Bag Manufacturing Machine
Related Products
-
Three-Side Sealing Multi-Function Bag-Making MachineNegotiableMOQ: 1 Set -
FTQB Series Bubble Film Bag Making MachineNegotiableMOQ: 1 Set
-
GFQ500-1200 Computer Heating-sealing & Cold-cutting Bag-making MachineNegotiableMOQ: 1 Set
-
Model RLD-800,1300 Series Ribbon-through Contiguous-rolled Bag Making Machine Continuous RollingNegotiableMOQ: 1 Set
-
TPM- 600/800 Zipper Bag Machine With Attachment MachineNegotiableMOQ: 1 Set
Specifications
a masterpiece of plastic bag machines and equipment of choice for manufacturing shopping bags and household refuse bags.Application:
Manufacturing machine for rope-threading Boli bags and Paiqihuan patching bags with full automatic and operator-friendly design.a masterpiece of plastic bag machines and equipment of choice for manufacturing shopping bags and household refuse bags.
Performance and Characteristics:
1,auxiliary materials conveyance system for Paiqi bags with thin auxliary materials.materials.(Patented).
2,auxiliary materials is pneumatic-pressure driven,which can be conveyed accurately,cut off and sealed.
3,Special servo motor control without shaking even when producing thin films at high speed.
4,Uniqely designed LCD,staged PLC staged PLC central control plus multi alarming and stoppage functions.
5,Specialized new-model blow feeing and cooling devices(patented).
6,Electro-thermal portable boring equipment.The scrap materials will drop off automatically with easy maintenance.(Patented)
7,A special motif preheat knife enables the seal when side sealing to be rather secure.
Technical Variables:
| Model | FT-800SP | |
| Length of bag-making | 250-750mm | |
| Width of bag-making | 250-600mm | |
| Pre-folded edge | 50-75mm | |
| Bottom-inserted edge | 20-70mm | |
| Thickness of film | 0.04-0.1mm | |
| Speed of bag-making | Patch bag | 80bags/min |
| Rope bag | 80bags/min | |
| Pre-folded punching bag | 90bags/min | |
| Total power | 9KW | |
| Machine dimension | 6700*2000*1850mm | |
| Machine dimension | 3000kg | |
| Air compressor not included | 7HP | |
