Specifications

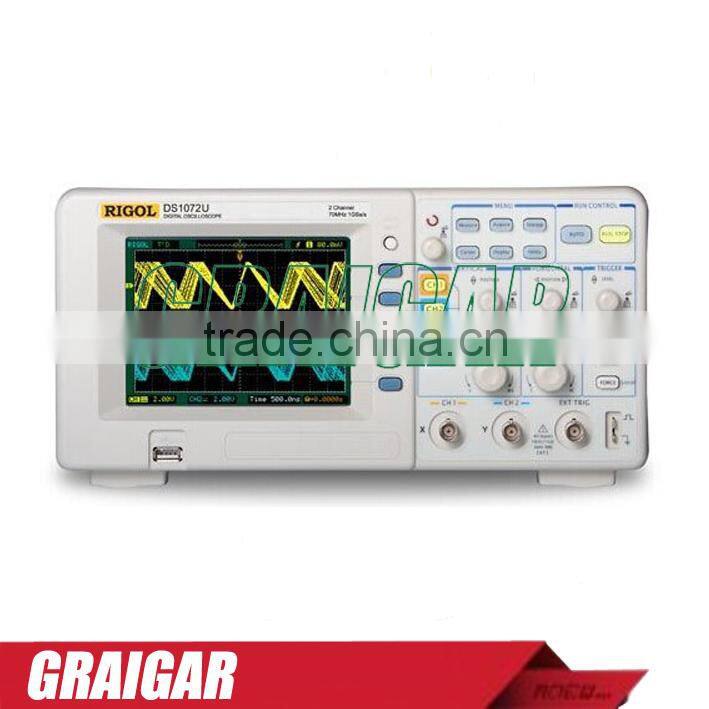

DS1072U Portable Digital Storage oscilloscope 70MHz 2 Channels
DS1072U Portable Digital Storage oscilloscope 70MHz 2 Channels
Item specifics
- Brand Name:
- RIGOL
- Model Number:
- DS1052E
- color:
- white
- Place of Origin:
- Guangdong, China (Mainland)
Product Description
DS1072U 70MHz Digital Storage Oscilloscope
Firm ware version for the DS1072U is DS1000U, Version: 00.04.00
Product overview
DS1000U series is a kind of economical digital oscilloscope with high-performance.
The front panel of DS1000U series comes with clear visual design, conforming to the usage of
traditional instruments, which is convenient for the users.
Application
1. Electronic circuit test 2. Circuit function test 3. Logical relation between signals verification 4. Circuit of mixed signal test 5. Education and training
Easy to use design
Built-in help menu enables information getting more convenient
Multiple Language User Interface, support English and Chinese input
Support U disk and local files storage
Waveform intensity of analog channel can be adjusted
To display a waveform automatically by (AUTO)
Pop-up menu makes it easy to operate
Main Features
1. 500MSa/s real-time sample rate and 10GSa/s equivalent sample rate
2. 5.6 inch and 64k TFT LCD make waveform display more clear and vivid
3. Abundant trigger types: Edge, Pulse Width, Video, Slope and Alternate
4. Unique adjustable trigger sensitivity enables to meet different demands
5. Enable to measure 22 types of waveform parameters and track measurements via cursor automatically
6. Unique waveform record and replay
7. Fined delayed scan function
8. Built-in FFT function, hold practical digital filters
9. Pass/Fail detection function enables to output testing results
10. Math operation available to multiple waveforms
11. Powerful PC application software UltraScope
12. Standard configuration interface: USB device, USB Host, R232 and support U disk storage and PictBridge print standards
13. Unique "Key Lock” function meets the needs of industrial production
14. Support remote command control
Edited By Evan
