Model	MSO5022S	MSO7062TD	MSO7102TD	MSO8102T	MSO8202T
Sample Rate (real time)	20S/s - 200MS/s	20S/s - 2GS/s
Bandwidth	40MHz	100MHz			200MHz
Channel	16
Record Length	Max 4M each channel
Input Impedance	660KΩ ± 5%, in parallel with 15 ± 5pF
Trigger Mode	Edge, Bus, State, Data Alignment, Data Width, Distributed Queue
Trigger Position Setting	Pre-trigger, Mid-trigger, and Re-trigger
Threshold Voltage	±6V (4 settings)
Input Signal Range	±30V
Data Search	available
Data System	binary, decimal, hex
Digital Filter	0, 1, 2 optional
Setting Storage	10 settings
USB Flash Disk Storage	available

Model	MSO5022S	MSO7062TD	MSO7102TD	MSO8102T	MSO8202T
Bandwidth	25MHz	60MHz	100MHz	100MHz	200MHz
Sample Rate (real time)	100MS/s	1GS/s	1GS/s	2GS/s

Lissajou’s Figure	Bandwidth	25MHz	60MHz	100MHz	200MHz
	Phase Difference	±3 degrees
Communication Interface		USB1.1, and RS232	USB2.0, USB host, and RS232 / VGA (optional)
Fuse		1A, T class, 250V
Dimensions (W × H × D)		370 × 180 × 120 (mm)
Weight (without package)		2.20 kg

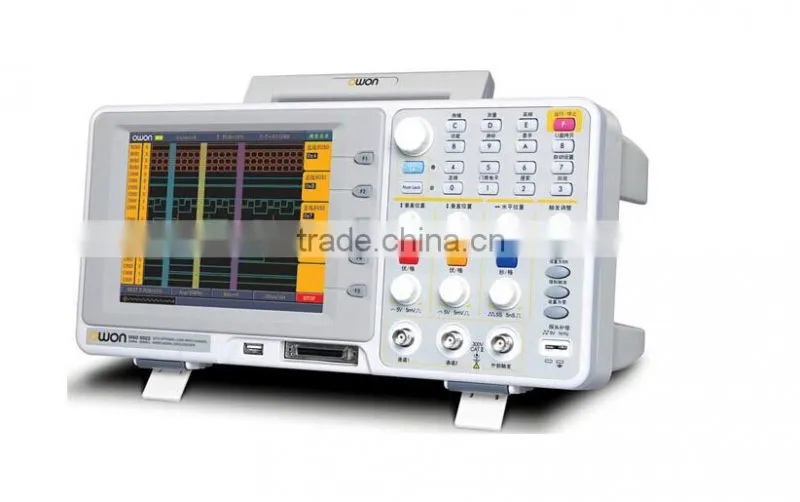

OWON MSO7102TD Digital Oscilloscope 2+1 | LA - 16 100MHz 1GS/s | LA - 2GS/s
