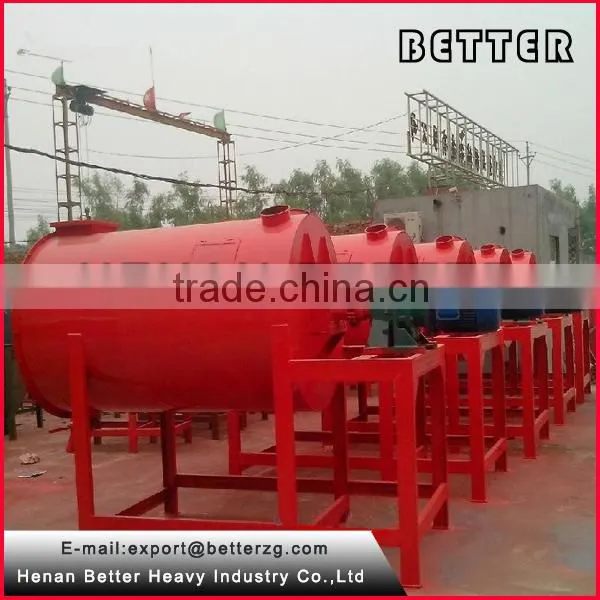

Help CenterHenan Better Simple Dry Mortar Production Machinery
Related Products

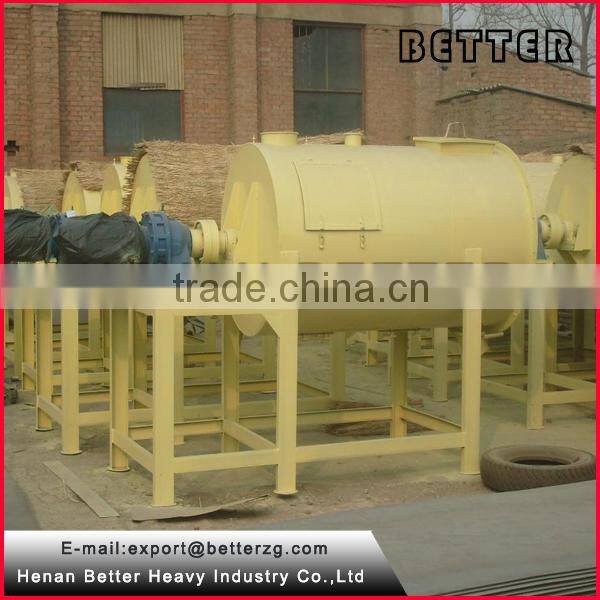

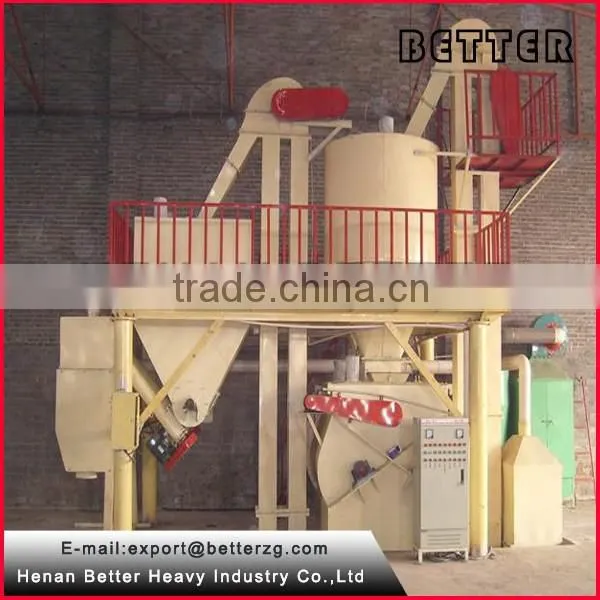

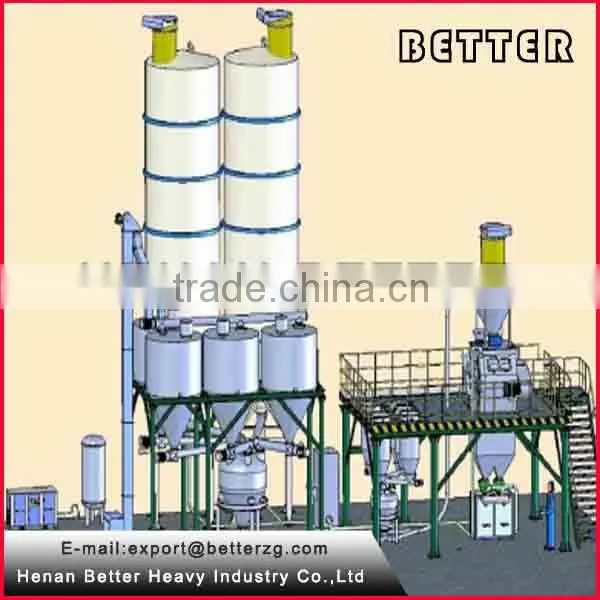

Dry mortar production machinery is our company customed for our clients.
Have convenient flow operation system, and efficient, reasonable, easy control.
1.Smooth operation,2-3 people can make it
2.Convenient transport, little machine compose.
3.Simple maintenance.
4.High output and low noise, the output can reach 10-20t/day.
5.Small footprint,the height less than 3m, ordinary houses can build the factories.
6.Small investment, best for individuals.

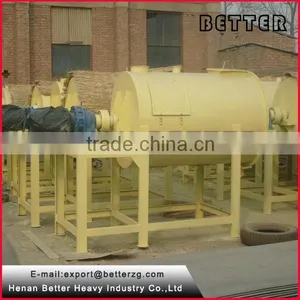

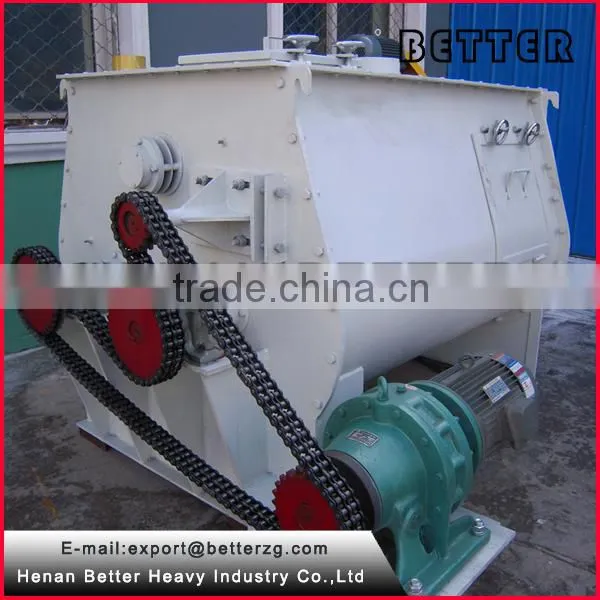

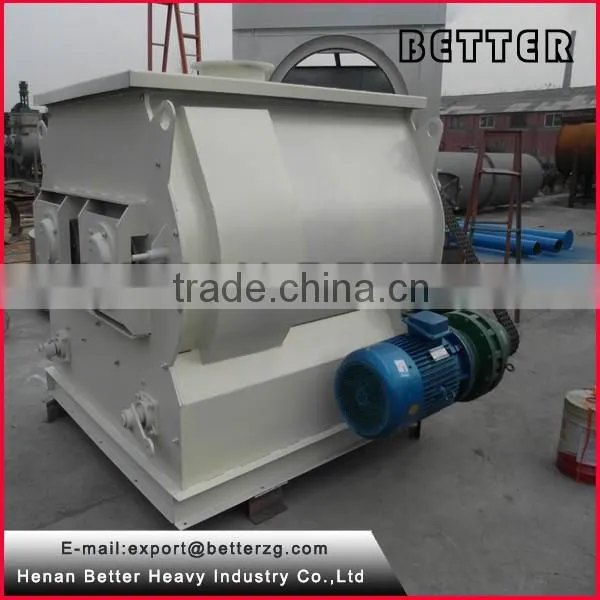

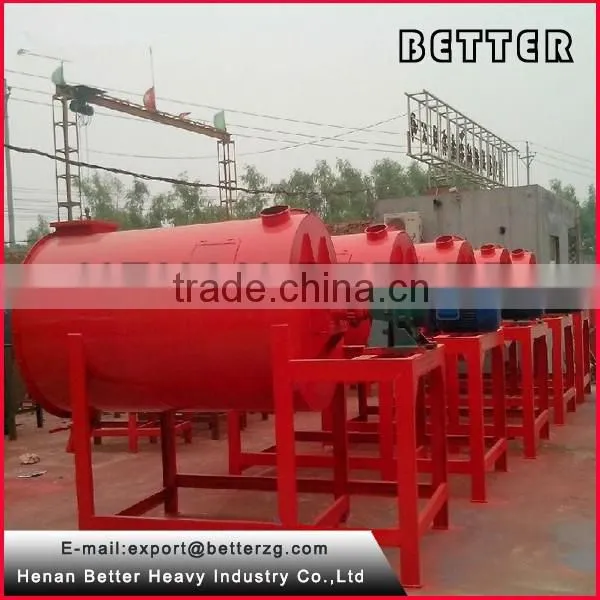

7.after mixing evenly, through a feeding tube into the material storage bin, dry powder mixing machine can be continuous feeding, continue to stir, thus improves the production efficiency.

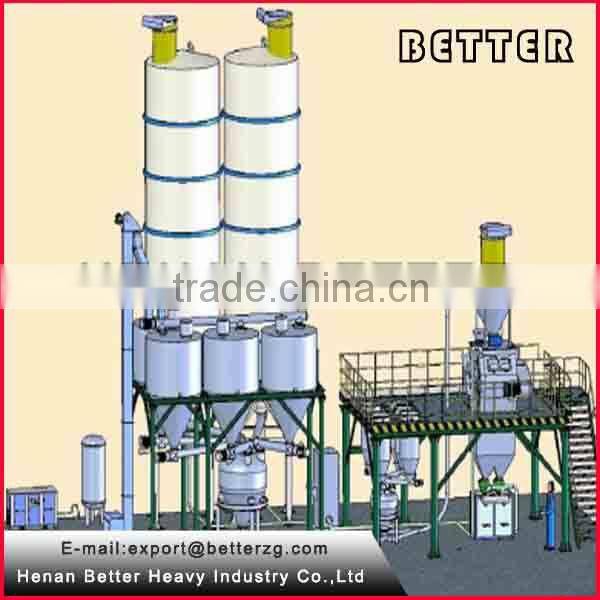

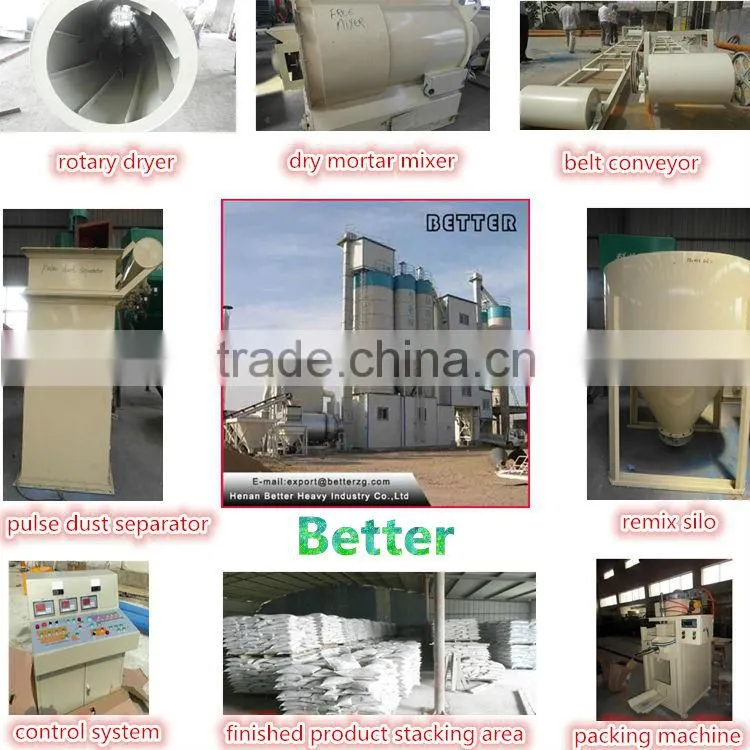

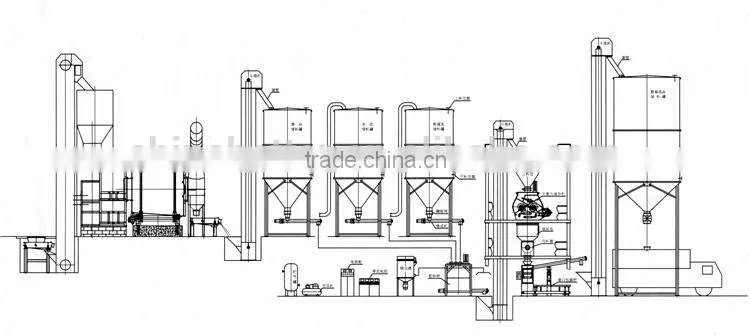

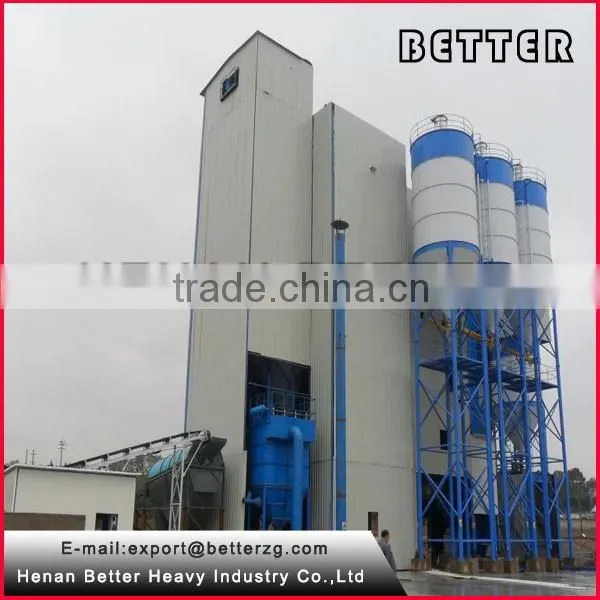

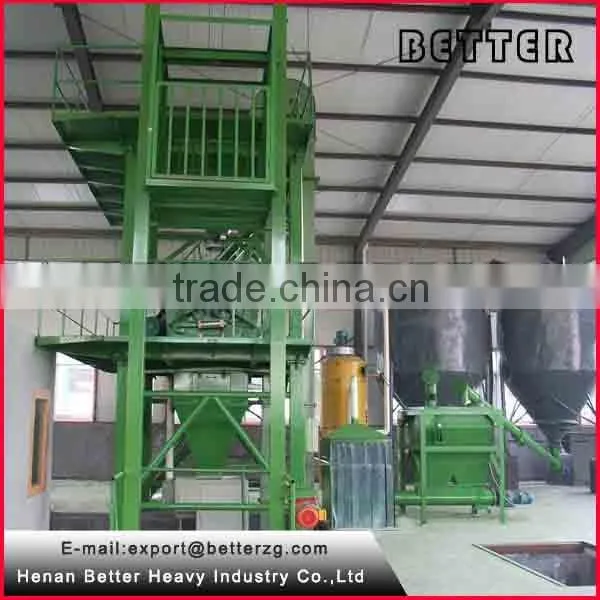

Dry mortar (also known as dry mortar) is a kind of advanced production equipment - computer-controlled automatic dry mortar production line through the sand pretreatment (including drying, sieving), dosing, mixing, packaging or bulk storage factory production of "dry mix" type of ready-mixed mortar. Since the production process strictly weighing ratio, and depending on the functional requirements of the corresponding mortar chemical additives added, greatly improves the quality of the mortar.

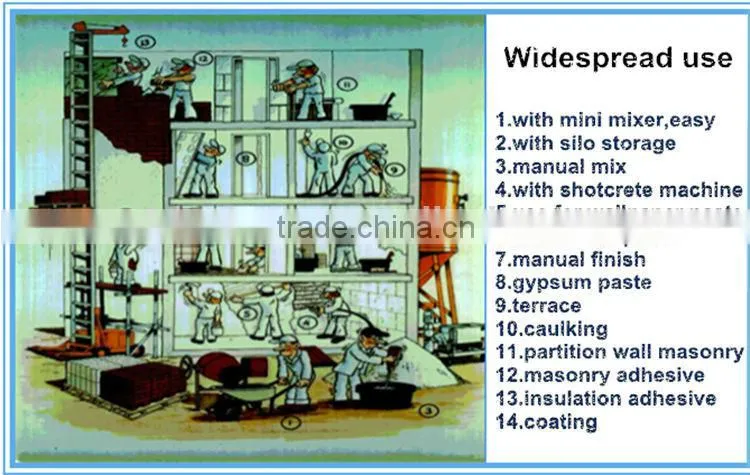

Dry mortar applications to avoid the artificial quality defects site preparation, to ensure the construction quality, while reducing urban waste and environmental pollution, improve the level of civilization construction, and has broad market prospect is a green building with new materials .
Henan Better simple dry mortar production line parameter
JYGF Production line |
Output |
Occupied area |
Equipment height |
Remark of batching and packing |
Simple |
1-15t/h |
40m2 |
5-10m |
Manual batching and packing |
Basic |
5-15t/h |
40-60m2 |
6-10m |
Manual batching, automatic packing |
Semiautomatic of serial mode |
5-15t/h |
40-80m2 |
8-12m |
Automatic batching of coarse material, manual batching of additive, automatic packing |
Semiautomatic of tower mode |
5-50t/h |
40-100m2 |
10-25m |
the same to serial semiautomatic mode |
Fully automatic of tower mode |
5-50t/h |
60-500m2 |
10-25m |
Automatic batching of all raw material and packing |
Sealed storage system
1) sealed silo
Silo device configuration can be set according to the same specifications or more different sizes, usually by silo welded steel.
Feeding into the silo, you can use the pipe pneumatic conveying or bucket elevator conveyor, screw conveyor can also be used. From the silo feed conveyor to the mixer commonly used pneumatic conveying pipe and screw conveyor transport.
In order to prevent the material inside the silo, arch plug silo usually has different forms of broken arch device to ensure continuous feed; in order to detect within a variety of settings in the warehouse material level indicator ; In order to eliminate dust pollution, use of warehouse roof precipitator for dust removal.
2) flotation-type discharge system
Nesting material type flotation system installed by a uniform floating silo cone at the bottom of the sheet constituted by compressed air so that the floating of the sheet material layer is formed on the surface of the suspension, the free falling in gravity flow smoothly, this effective warehouse nesting methods suitable for almost all the fine powder materials.
3) discharge screw conveyor system
Spiral discharging system is controlled by rotating helical screw conveyor blades, stop, to control cement (fly ash) material. Screw conveyor is characterized by a large transmission angle, and strong delivery capabilities, dust-proof, moisture-proof performance. To increase transmission capacity, the use of variable vanes in the form of a screw conveyor, filling amount in the feed section, the pitch becomes larger as the filling amount is reduced, which can effectively prevent backflow of high fluidity at the time of transporting the powder material.
ANY QUESTIONS,BETTER CALL BETTER!!!

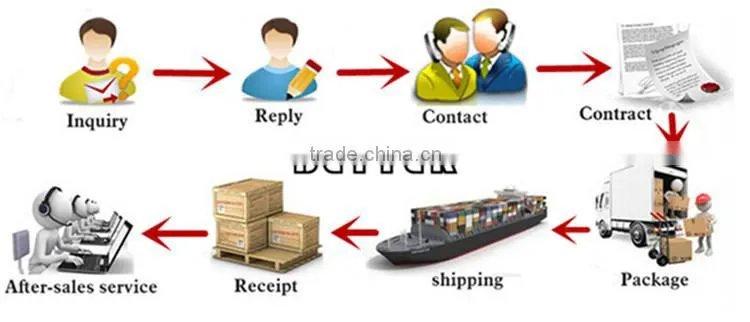

1.Pre-sale service:
We will give you suggestive productive technical processing in the prophase plan and manufacturer equipment based on your special demand.
2.Sale service:
If needed, our advanced technicians will be sent your jobsite to guild operation and installation. finish your job together.
3.After-sale service:
In order to keep our cooperating relationship on, we will send technicians to visit to you, making sure the products works normally.
4.We provide one-year warranty to make products works normally. we also offer lifelong service and wearable parts for you.(In addition to artificial damage)
1.Where do your customers come from?
Our clients includes those Fortune 500 companies like China Water Agency, China Sinohydro Corporation, Henan Construction Engineering Co, China South-to-north Water Project and lots of cities and towns housing construction companies.
2.What about your International Market?
We have established overseas project in more than 19 countries and regions, just like Outer Mongolia, Russian, Philippine,Macedonia,Tanzania, Cyprus etc and won overseas customer’s trust and good reputation.
3.What is the payment term?
T/T, L/C, Western Union, Paypal, cash
4.How to transport and install this production line equipment?
Containers or as your order.Use crane to load into the container,wire cable fastened inside the container,cork wood to forbid collision.
5.What are your main products?
(1)Concrete mixer plant,concrete mixer machine,JZC/JDC/JZM portable concrete mixer.
(2)Dry mortar mixer plant,dry mortar mixer machine,dry mortar mixer auxiliary equipment.
(3)Conrete batch plant,cement silo,sand dryer,sieving machine,bar straighting machine,control computer etc.
Containers or as your order
1.Use crane to load into the container
2.Wire cable fastened inside the container
3.Cork wood to forbid collision
