Home > Products > Foldable filter > Excellent Efficiency Polypropylene inkjet filter mineral water filter cartridge

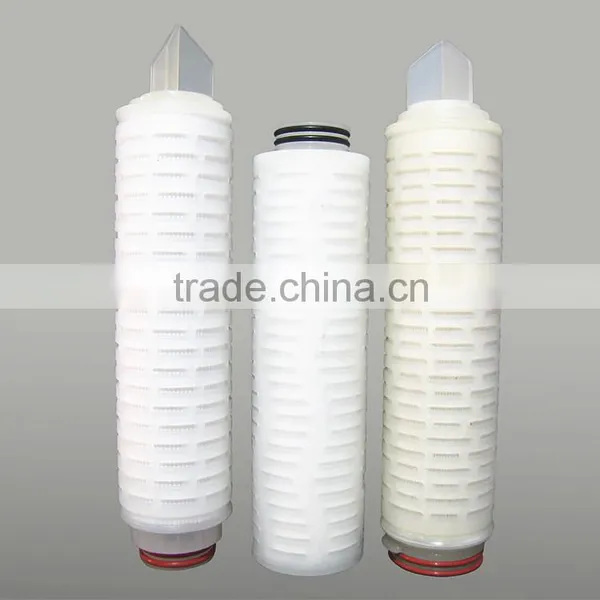

Excellent Efficiency Polypropylene inkjet filter mineral water filter cartridge
- 5000 Piece / Pieces per Month
- Shanghai/Ningbo
- T/T Credit Card PayPal
- excavator diesel engine Oil filter element 9N-3367
- 10g 7g ozone generator for lab waste water treatment
- Tetradecyl Dimethyl Amine Oxide (OA-14)
- Dodecyl Dimethyl Amine Oxide (OA-12)
- Didecyl Dimethyl Ammonium Chloride(D1021)
- TCCA90 POWDER GRANULAR 200G TABLET MIX INTO CONTAINER WITH IN 25KG OR 50KG/PLASITC DRUMS OF TRICHLOROISOCYANURIC ACID 200G TABLET IN TUBE for Swimming Pool
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | TANGVI | Model Number: | PP filter cartridge |
Product Description
Membrane Pleated Filter Cartridges of fluid filtration
1, For water treatment / Food & Beverage / electro-optical / biopharmaceutical industry
2, High-precision, high standards ,customized
3, Low price high quality, strict test, excellent filtering effect
Materials of Construction | Filter membrane | PP membrane |
Diversion layer | pp non-woven | |
External support cage | pp material | |
Internal support | pp material or pp stainless liner | |
Specification | OD | Φ68mm Φ69mm |
ID | Φ32mm | |
length | 2.5~40" | |
Seal ring | Silicone,EPDM ,Nitrile ,Fluorous ,Fluorous and PTFE | |
Precision | 0.10,0.20,0.45,1.00,3.00,5.00,10.0,20.0,40.0 ,50.0µm | |
Effective filtering | Dimension≥0.60m² | |
Operation condition | PH value | 1~14 |
Normal working temperature | ≤55℃ | |
Max. working temperature | 80℃, pressure differential ≤0.10Mpa | |
Max. differential pressure | 25℃,forward direction 0.42Mpa,reverse direction 0.21MPa | |
Educt | Esotoxin | <0.25EU/ml |
Extractive | <0.03g/10"filter cartridge |
Integrity Test
TEDA membrane:(Min. bubble point 25℃,95%IPA or ethanol)
Bore diameter(μm) | 0.10 | 0.20 | 0.45 | 1.00 |
Minimum bubble point( MPa) | ≥0.012 | ≥0.010 | ≥0.008 | ≥0.002 |
Imported membrane:(Min. bubble point 25℃,95% IPA or ethanol)
Bore diameter(μm) | 0.10 | 0.20 | 0.45 | 1.00 |
Minimum bubble point (MPa) | ≥0.015 | ≥0.011 | ≥0.009 | ≥0.003 |
Imported hydrophilic membrane:(min. bubble point 25℃,95% IPA or ethanol)
Bore diameter(μm) | 0.10 | 0.20 | 0.45 |
Min. bubble point MPa | ≥0.016 | ≥0.012 | ≥0.009 |
Characteristics
Low differential pressure.
Low-cost.
High flow rates.
Long service life.
Ultrasonic welding and without adhesive.
100% integrity test for filter cartridge.
Widely filter precision and selectivity, available for various situations.
Broad chemical compatibility, and good chemical stability, acid-proof, alkali-proof, ethanol-proof, ketone-proof, DMF-proof, phenol-proof and other chemicals.
Typical Applications
Unclear power plant and heat-engine plant and natural gas plant process water filtration and gas filtration. Filter the waste water treatment chemicals and Emulsion waste water filtration.Front protection of UF membrane and RO membrane to impede floccules and jelly, impeding ion exchange resin, pre-filtration of liquid membrane purification.
End Cap Configuration
-226 O-ring -222 O-ring Flat Gasket Alignment Fin
