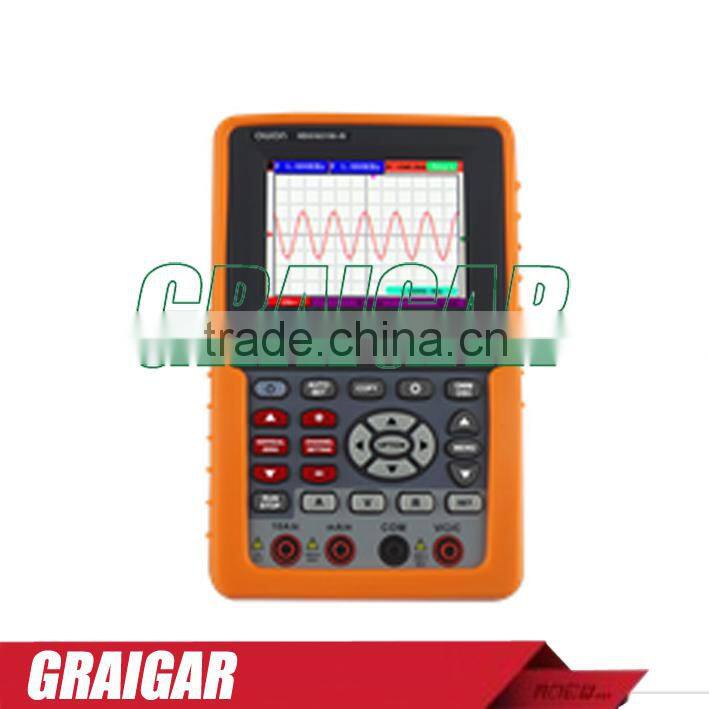

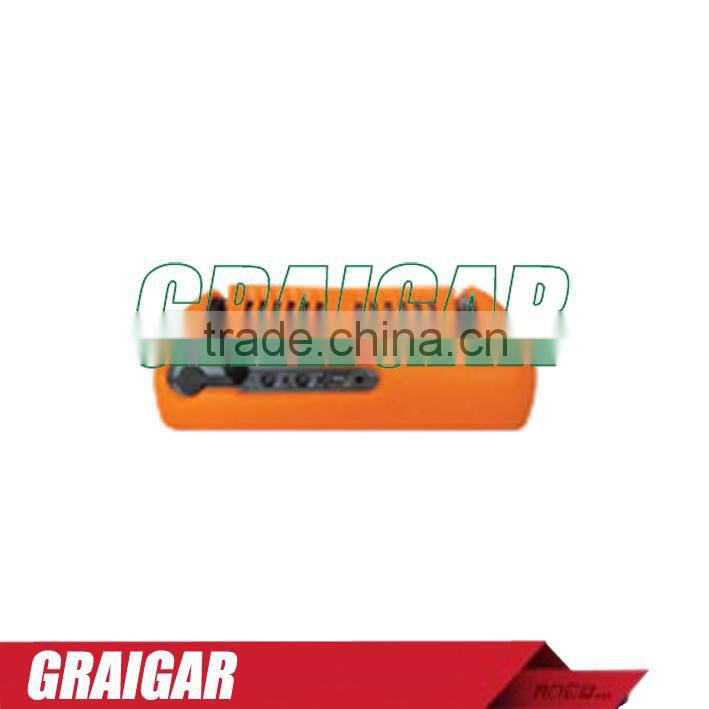

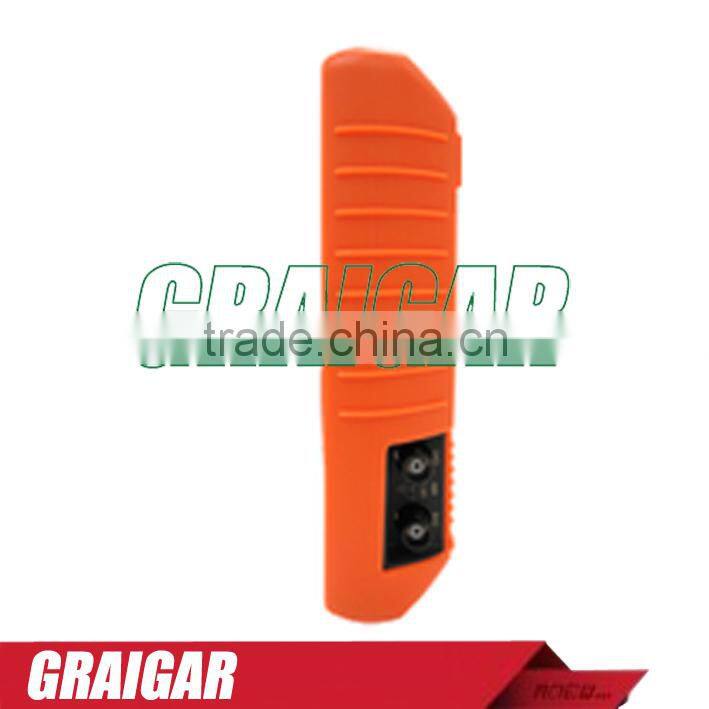

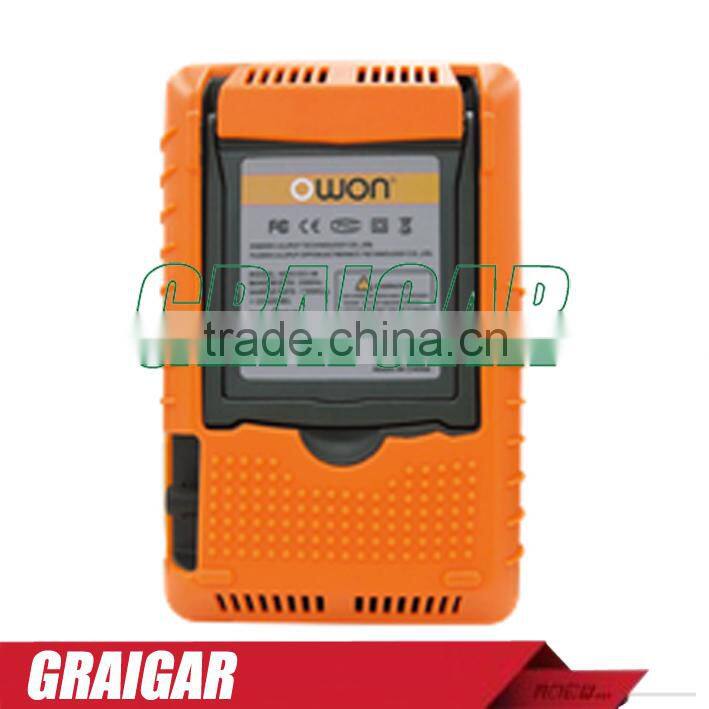

OWON HDS1021M-N 1-ch display Single Channel /Digital Storage Handheld Oscilloscope,3.5 inch LCD, 20MHz 500MS/s

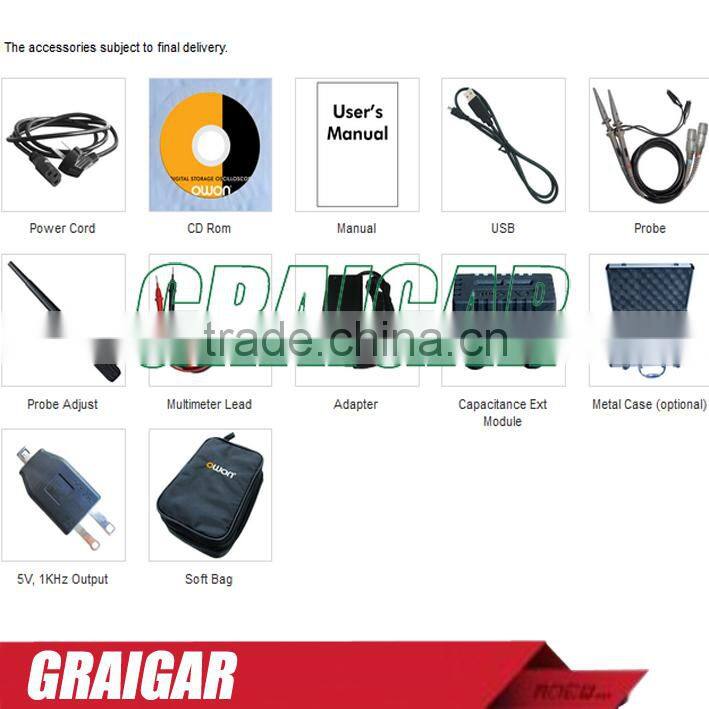

OWON HDS Series 1-ch digital oscilloscope
Product Series : Handheld DSO

Main Features

- 2 in 1 (DSO + Multimeter)
- Auto-scale function
- 20 automatic measurements
- Bandwidth : 20MHz - 100MHz
- USB data transmission supported
- Waveform record and replay
- Multimeter newly supported SCPI
- Rechargeable Li-ion battery (6 hours' backup)

Application

electronic circuit debugging circuit testing

design and manufacture education and training

automobile maintenance and testing

Overview

Model No.	Bandwidth	Sample Rate	Channel
HDS1021M-N	20MHz	500MS/s	1
HDS2061M-N	60MHz	500MS/s	1
HDS3101M-N	100MHz	1GS/s	1

Performance Specifications

HDS1021M-N	HDS2061M-N	HDS3101M-N
20MHz	60MHz	100MHz
500MS/s		1GS/s
5ns/div~100s/div, step by 1~2.5~5	5ns/div~100s/div, step by 1~2~5
≤17.5ns	≤5.8ns	≤3.5ns
3.7'' color TFT display (640 × 480 pixels)
single
1MΩ ± 2%, in parallel with 15pF ± 5pF
max 6000 points on each channel
sin (x) / x
1X,10X,100X,1000X
DC, AC, and GND
average > 16 : ± (3% reading + 0.05div) for V
5mV/div~5V/div (at input)
8 bits
400V (PK - PK) (DC + AC, PK - PK, 1MΩ input impedance, probe attenuation 10 : 1), CAT II
Edge, Video
Auto, Normal, Single
± 6 divisions from screen center
Sample, Peak Detect, and Average
± 3%
Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vamp, Vbase, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty
unavailable
4 waveforms
unavailable	full bandwidth
unavailable	± 3 degrees
USB
100V-240V AC, 50 / 60Hz
7.4V, 6 hours’ operation
180 × 115 × 40 (mm)
645 g

Multimeter Specifications

Full Scale Reading	3(3/4) digit (max 4000-count)	diode	0V - 1.5V
Input Impedance	10 MΩ	On / Off measurement	< 50 ( ± 30) beeping
Voltage	VDC : 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); max input : DC 1000V VAC : 4V, 40V, 400V : ±(1% ± 3 digits), 750V : ±(2% ± 3 digits); Frequency : 40Hz - 400Hz; max input : AC 750V (virtual value)
Current	DC : 40mA, 400mA : ±(1.5% ± 1 digit), 20A : ±(3% ± 3 digits) AC : 40mA : ±(1.5% ± 3 digits), 400mA : ±(2% ± 1 digit), 20A : ±(5% ± 3 digits)
Impedance	400Ω : ±(1% ± 3 digits), 40ΚΩ - 4ΜΩ : ±(1% ± 1 digit), 40MΩ : ±(1.5% ± 3 digits)
Capacitance	51.2nF~100uF : ±(3% ± 3 digit)
