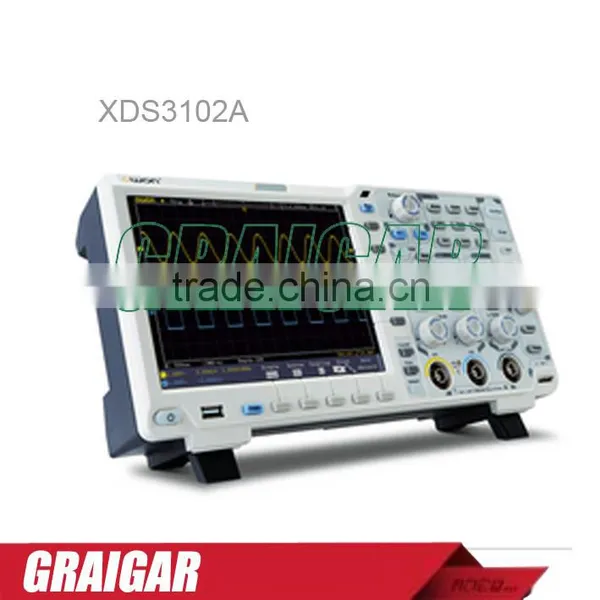

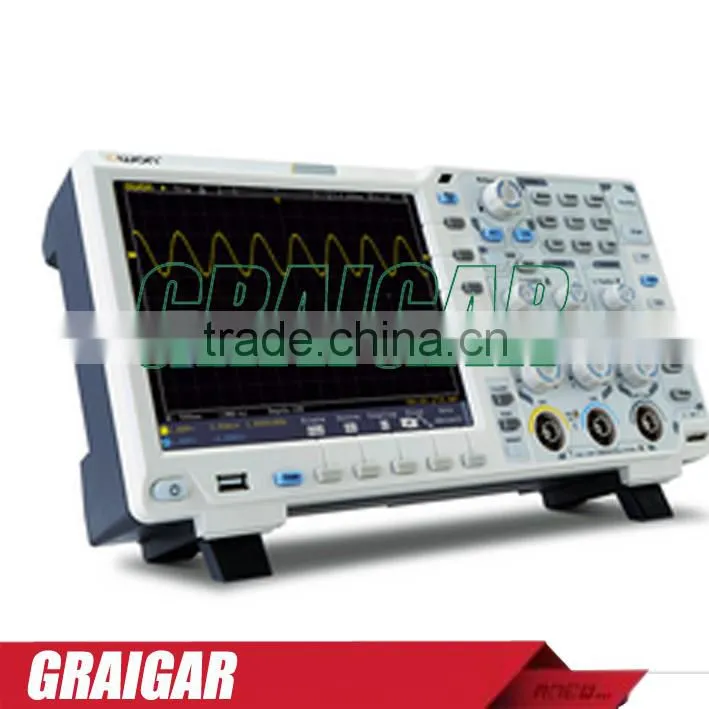

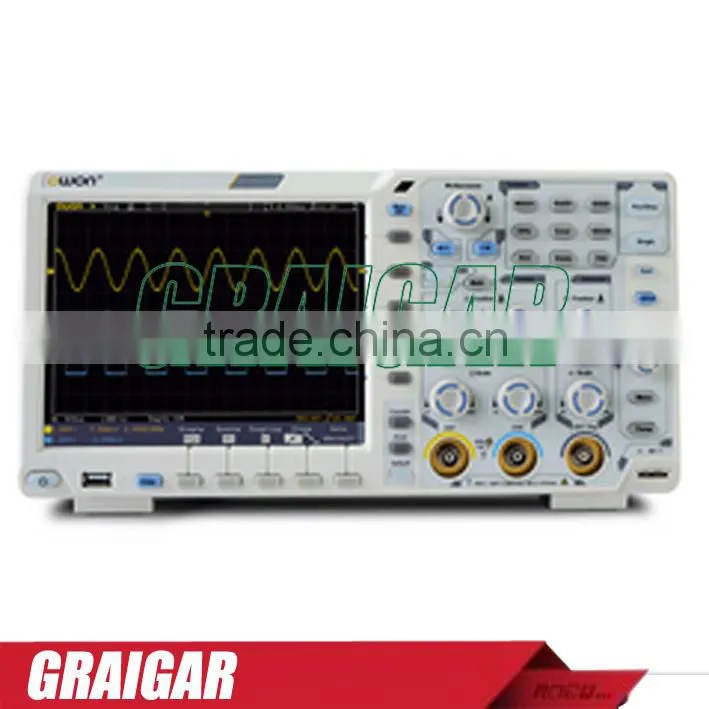

XDS3102A OWON n-in-1 DSO Digital Oscilloscope,data logger+multimeter+waveform generator functions as n-in-1 100MHz and 1Gs/s

XDS3102A OWON n-in-1 DSO Digital Oscilloscope 100MHz and 1GS/s, data logger+multimeter+waveform generator functions as n-in-1



OWON XDS Series n-in-1 DSO
Product Series : N-in-1 DSO

Main Features

- Max 12-bit high resolution ADC, restoring the waveform detail fully
- Max 200 MHz Bandwidth, up to 2GS/s Sample Rate
- low background noise, vertical sensitivity in 1 mV/div - 10 V/div
- based upon the 3rd generation technology platform - Xvisual
- multi- trigger, and bus decoding function
- functions as n-in-1 : data logger, multimeter, waveform generator,
  and digital storage oscilloscope
- 8 inch 800 x 600 high resolution LCD
- optional multi-touch screen available
- optional battery pack, and WiFi module supported

Application

electronic circuit debugging       circuit testing
design and manufacture            education and training



Overview

Model

Bandwidth

Sample Rate

Vertical Resolution (A/D)

Record Length

Waveform Refresh Rate

XDS3102

100MHz

1GS/s

8 bits

40M

75,000 wfms/s

XDS3102A

100MHz

1GS/s

12 bits

XDS3202

200MHz

2GS/s

8 bits

XDS3202A

200MHz

2GS/s

12 bits





Specifications

Model

XDS3102A

XDS3102

XDS3202A

XDS3202

Bandwidth

100MHz

200MHz

Sample Rate

1GS/s

2GS/s

Vertical Resolution (A/D)

12 bits

8 bits

12bits

8buts

Record length

40M

Waveform Refresh Rate

75,000 wfms/s

Horizontal Scale (s/div)

2ns/div - 1000s/div, step by 1 - 2 - 5

1ns/div - 1000s/div, step by 1 - 2 - 5

Rise Time (at input, typical)

≤3.5ns

≤1.7ns

Channel

2 + 1 (external)

Display

8" color LCD, 800 x 600 pixels (optional 1024 x 768 pixels IPS display)

Input Impedance

1MΩ ± 2%, in parallel with 15pF ± 5pF; 50Ω ± 2%

Channel Isolation

50Hz : 100 : 1, 10MHz : 40 : 1

Max Input Voltage

1MΩ ≤ 300Vrms; 50Ω ≤ 5Vrms

DC Gain Accuracy

±3%

DC Accuracy

average≥16:±(3% reading + 0.05 div) for V

Probe Attenuation Factor

0.001X - 1000X, step by 1 - 2 - 5

LF Respond (AC, -3dB)

≥5Hz (at input, AC coupling, -3dB)

Sample Rate / Relay Time Accuracy

±1ppm

Interpolation

sin(x) / x

Interval (T) Accuracy (full bandwidth)

Single: ±(1 interval time + 1ppm x reading + 0.6ns);
Average > 16: ±(1 interval time + 1ppm x reading + 0.4ns)

Input Coupling

DC, AC, and GND

Vertical Sensitivity

1mV/div - 10V/div (at input)

Trigger Type

Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,  and CAN (optional)

Bus Decoding

I2C, SPI, RS232, and CAN (optional)

Trigger Mode

Auto, Normal, and Single

Trigger Level

±2000div (1mv/div), ±1000div (2mv/div), ±400div (5mv/div),
±200div (10mv/div), ±100div (20mv/div),  ±40div (50mv/div),
±200div (100mv/div), ±100div (200mv/div), ±40div (500mv/div),
±20div (1v/div), ±100div (2v/div), ±40div (5v/div), ±20div (10v/div)

Line / Field Frequency (video)

NTSC, PAL and SECAM standard

Cursor Measurement

V, and T between cursors, V and T between cursors, auto-cursor

Automatic Measurement

Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin,
Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time,
+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓,
+Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count

Waveform Math

+, -, ×, ÷, FFT

Waveform Storage

100 waveforms

Lissajou's
Figure

Bandwidth

full bandwidth

Phase Difference

±3 degrees

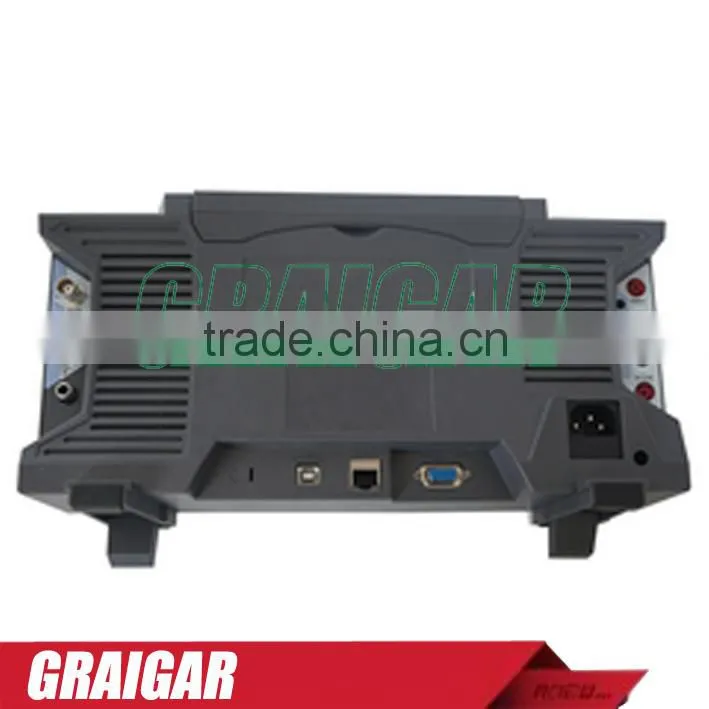

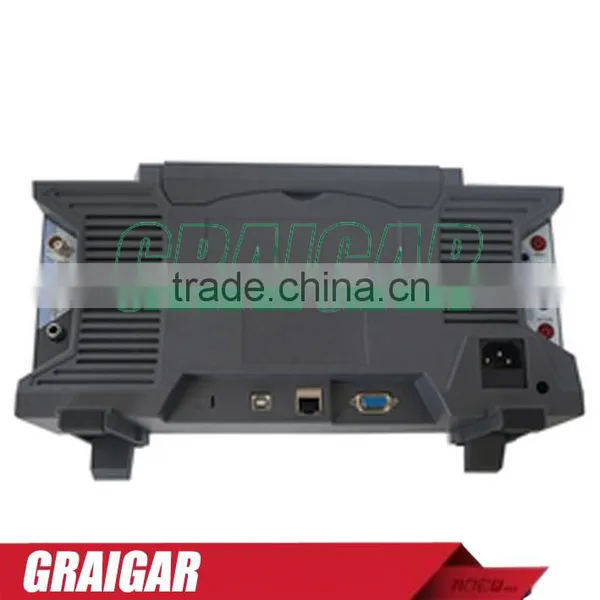

Communication Interface

USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)

Frequency Counter

available

Power Supply

100V - 240V AC, 50/60Hz, CAT II

Power Consumption

<15W

Fuse

2A, T class, 250V

Battery (optional)

3.7V, 13200mA

Dimension (W x H x D)

340 x 177 x 90 mm

Weight

2.60 kg

+ Multimeter (optional) Specifications

Full Scale Reading

3¾ digits (max 4000 count)

Diode

0V -1.5V

Input Impedance

10MΩ

Continuity Test

<50 (±30) beeping

Capacitance

51.2nF - 100uF: ±(3% ± 3 digits)

Voltage

VDC: 400mV, 4V, 400V: ±(1 ± 1 digit); max input: DC 1000V
VAC: 4V, 40V, 400V: ±(1 ± 3 digits); frequency: 40Hz - 400Hz; max input: AC 750V (virtual value)

Current

DC: 40mA, 400mA: ±(1.5% ± 1 digit); 10A: ±(3% ± 3 digits)
AC: 40mA: ±(1.5% ± 3 digits), 400mA: ±(2% ± 1 digit), 10A: ±(3% ± 3 digits)

Impedance

400Ω: ±(1% ± 3 digits),4KΩ - 40MΩ: ±(1% ± 1 digit)

+ Arb Waveform Generator (optional) Specifications

Max Frequency Output

25MHz

50MHz

Sample Rate

125MS/s

250MS/s

Channel

available in 1-ch, or 2-ch

Vertical Resolution

14 bits

Amplitude Range

10mVpp - 6Vpp

Waveform Length

8K

Standard Waveform

Sine, Square, Pulse, Ramp

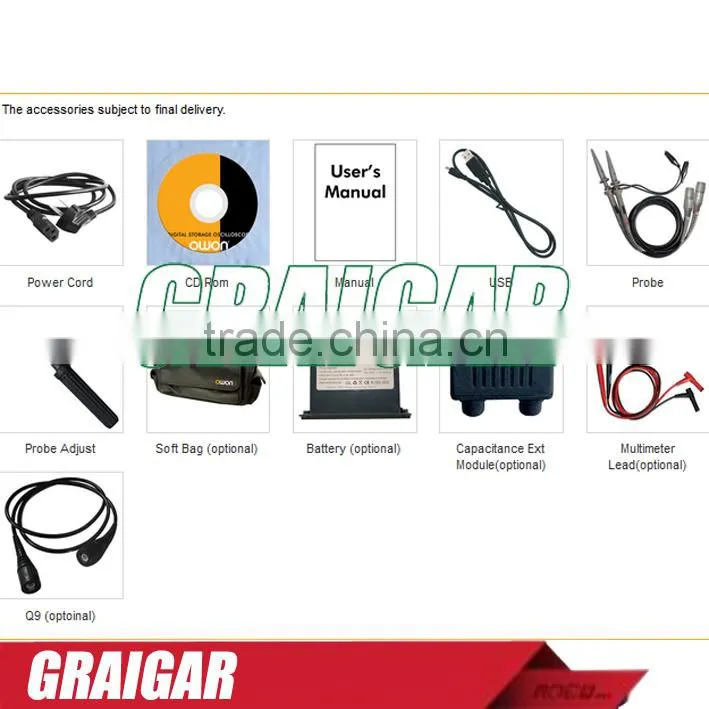

+ Optional Module / Function

VGA

VGA

WIF

WiFi

AWG

arb waveform generator

DMM

digital multimeter

TOU

touch screen (capacitor-type)

+ Optional Decoding Kit

RS232

RS232

SPI

SPI

I2C

I2C

DMM

digital multimeter

CAN

CAN trigger / decoding

 (Kelly Liu)
