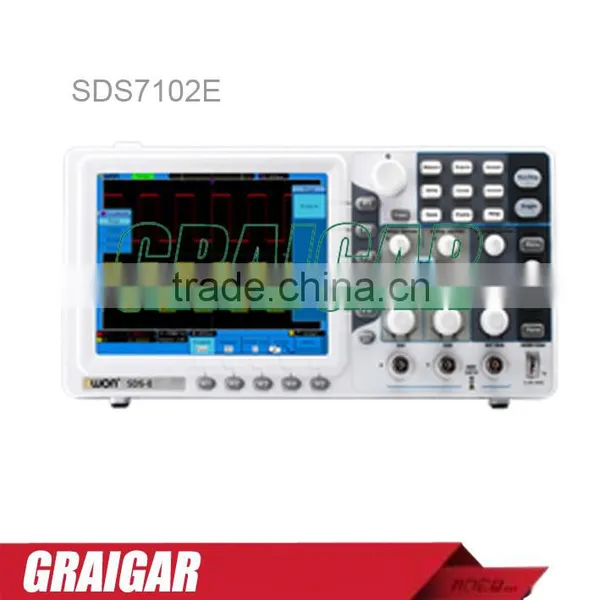

OWON SDS7102E Portable Digital Oscilloscope,Channel 2+1,Bandwidth 100MHz, Sample Rate 1GS/s 8 inch high def TFT display

OWON SDS7102E Portable Digital Oscilloscope,Channel 2+1,Bandwidth 100MHz, Sample Rate 1GS/s 8 inch high def TFT display

OWON SDS-E Series digital oscilloscope
Product Series : Portable DSO



Main Features

- Bandwidth : 30MHz - 125MHz
- Sample rate : 250MS/s - 1GS/s
- 1M record length (10M optional, SDS5032E excluded)
- Ultra-thin body
- 8 inch high def TFT display
- Pass / Fail function
- Add / Remove measure function,
  and user-defined measurement menu

Application

electronic circuit debugging                circuit testing

design and manufacture                     education and training

automobile maintenance and testing



Overview

Model No.

Bandwidth

Sample Rate

Record Length

Channel

SDS5032E

30MHz

500MS/s

10K

2+1

SDS6062E

60MHz

500MS/s

1M / optional 10M

2+1

SDS7072E

70MHz

1GS/s

1M / optional 10M

2+1

SDS7102E

100MHz

1GS/s

1M / optional 10M

2+1

SDS7122E

125MHz

1GS/s

1M / optional 10M

2+1



Specifications

Model

SDS5032E

SDS6062E

SDS7072E

SDS7102E

SDS7122E

Bandwidth

30MHz

60MHz

70MHz

100MHz

125MHz

Sample Rate (real time)

500MS/s

1GS/s

Horizontal Scale (s/div)

4ns/div~100s/div,
step by 1~2~4

5ns/div - 100s/div,
step by 1 - 2 - 5

2ns/div - 100s/div,
step by 1 - 2 - 5

Rise Time (at input, typical)

≤11ns

Channel

2 + 1 (external)

Display

8" color LCD, TFT display , 800 × 600 pixels, 65535 colors

Input Impedance

1MΩ ± 2%, in parallel with 15pF±5pF

Channel Isolation

50Hz : 100 : 1, 10MHz : 40 : 1

Max Input Voltage

400V (PK - PK) (DC+AC, PK - PK)

DC Gain Accuracy

±3%

Record Length

10K

1M  (optional 10M)

DC Accuracy (average)

Average≥16:±(3% reading + 0.05 div) for V

Probe Attenuation Factor

1X, 10X, 100X, 1000X

LF Respond (AC, -3dB)

≥10Hz (at input, AC coupling, -3dB)

Sample Rate / Relay Time   Accuracy

±100ppm

Interpolation

sin (x) / x

Interval (T) Accuracy  (full bandwidth)

Single : ±(1 interval time + 100ppm × reading + 0.6ns), Average>16 : ±(1 interval    time + 100ppm × reading + 0.4ns)

Input Coupling

DC, AC , and GND

Vertical Resolution (A/D)

8 bits resolution (2 Channels simultaneously)

Vertical Sensitivity

5mV/div~10V/div (at input)

2mV/div~10V/div (at input)

Trigger Type

Edge, Pulse, Video, Slope, Alternate

Trigger Mode

Auto, Normal, Single

Trigger Level

±6 divisions from screen center

Line / Field Frequency  (video)

NTSC, PAL, and SECAM standard

Cursor Measurement

V, and T between cursors

Automatic Measurement

Vpp, Vavg, Vamp, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot,
Rise Time, Fall Time, Delay A→B↑, Delay  A→B↓, +Width, -Width, +Duty, -Duty

Waveform Math

+, -, ×, ÷, FFT

Waveform Storage

15 waveforms

Lissajous Figure

Bandwidth

Full bandwidth

Phase Difference

±3 degrees

Communication Interface

USB, USB flash disk storage, Pass / Fail, LAN, VGA (optional)

Cymometer

available

Power Supply

100V - 240V AC, 50/60Hz, CAT Ⅱ

Power Consumption

<18W

Fuse

2A, T class, 250V

Battery

not supported

Dimension (W×H×D)

348 × 170 × 78 (mm)

Weight (without package)

1.50 kg

 (Kelly Liu)
