OWON MSO5022S Oscilloscope+Logic Analyzer 2 in 1 Function,8 Inch 640*480 100MHz DSO+16 Channels LA DSO
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OWON
Model Number:
MSO5022S
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OWON VDS2052 PC Oscilloscope, 50MHz Bandwidth 250MS/s Sample Rate 5K Record Length 2+1 (multi) Channel and Multi-trigger OptionNegotiableMOQ: 1 Piece -
XDS3202A OWON N-in-1 DSO Digital Oscilloscope,data Logger+multimeter+waveform Generator Functions as N-in-1 200MHz and 2Gs/sNegotiableMOQ: 1 Piece
-
XDS3202 OWON N-in-1 DSO Digital Oscilloscope 200MHz and 2GS/s, Data Logger+multimeter+waveform Generator Functions as N-in-1NegotiableMOQ: 1 Piece
-
XDS3102A OWON N-in-1 DSO Digital Oscilloscope,data Logger+multimeter+waveform Generator Functions as N-in-1 100MHz and 1Gs/sNegotiableMOQ: 1 Piece
-
XDS3102 OWON N-in-1 DSO Digital Oscilloscope 100MHz and 1GS/s, Data Logger+multimeter+waveform Generator Functions as N-in-1NegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
OWON
Model Number
MSO5022S

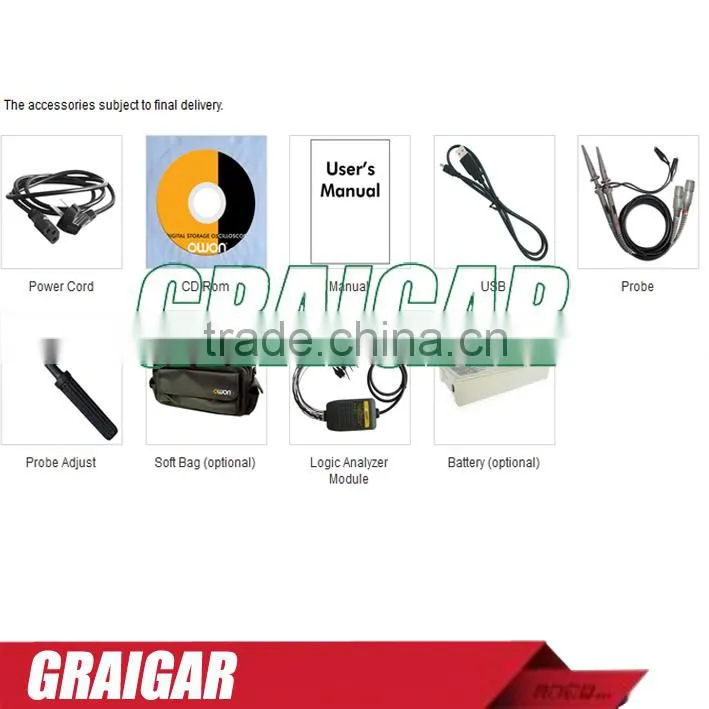

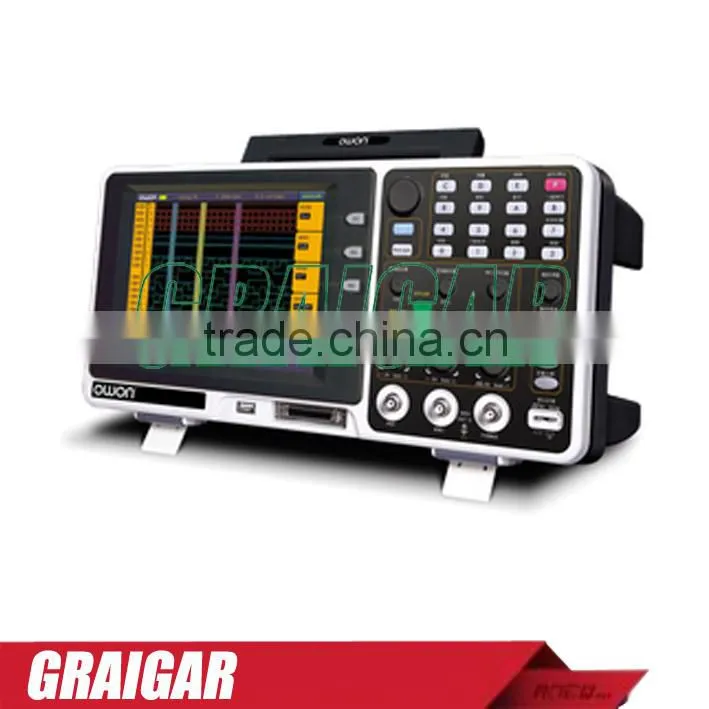

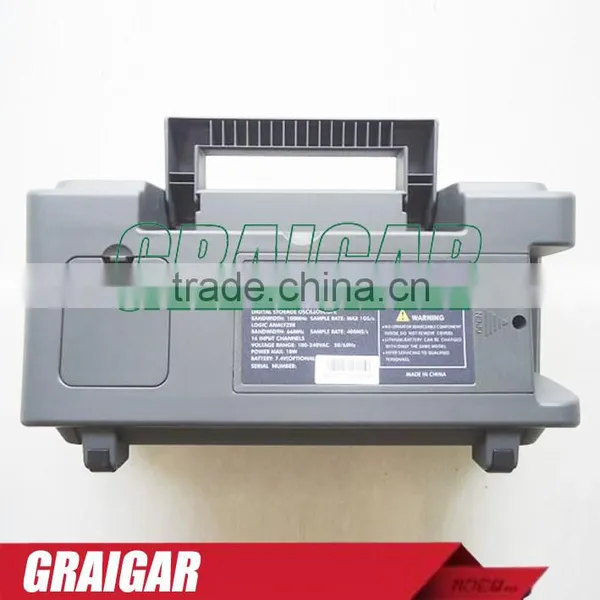

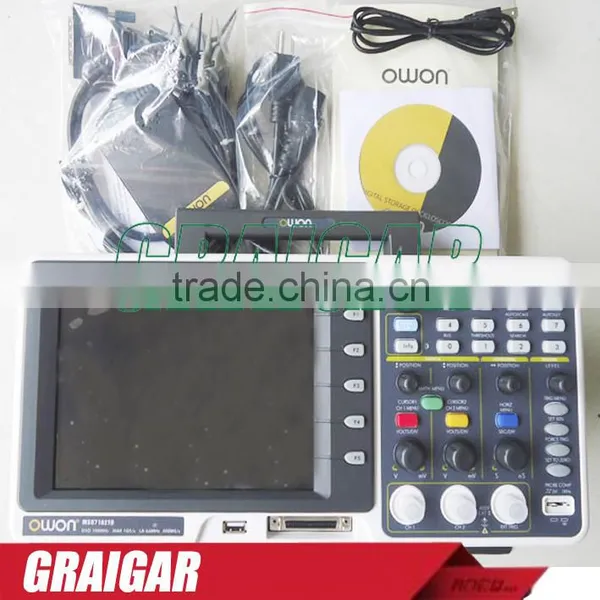

OWON MSO5022S Oscilloscope+Logic Analyzer 2 in 1 function,8 inch 640*480 100MHz DSO+16 channels LA DSO
Models in the MSO Series
| Model | MSO5022S | MSO7102T | MSO7102TD | MSO8102T | MSO8202T |
| Bandwidth | 25MHz | 100MHz | 100MHz | 200MHz | |
| Sample rate(Real time) | 100MS/s | 1GS/s (500MS/s for dual channels) | 2GS/s (1GS/s for dual channels) | ||
| Horizontal Scale(S/div) | 5ns/div~100s/div step by 1~2.5~5 |
2ns/div~100s/div step by 1~2~5 | 1ns/div~100s/div step by 1~2~5 |
||
| Rise time | ≤14ns | ≤3.5ns | ≤1.7ns | ||
| Channels | Dual channels + external trigger | ||||
| Display | 7.8''color LCD, STN display |
8.0'' color LCD , TFT screen, 640×480 pixels | |||
| Dimension | 370mm(L)x180mm(H)x120mm(W) | ||||
| Weight | 2.2kg | ||||
Main Features:
1. 2 in 1( DSO+LA )
2. 7.8 inch LCD color display
3. Support USB for data transmission to PC
4. USB Flash Disk Storage
5. 20 Automatic Measurements
6. Max.2M record length
7. Slope trigger and pulse trigger added
Application:
Design and Debug Circuit function test Mixed signal circuit test
Identified signals logic information Education & Training
| Oscilloscope Specification | ||||||
| Model Name | MSO5022S | MSO7102T | MSO7102TD | MSO8102T | MSO8202T | |
| Bandwidth | 25MHz | 100MHz | 100MHz | 200MHz | ||
| Sample Rate(Real time) | 100MS/s | 1GS/s (500MS/s for dual channels) | 2GS/s (1GS/s for dual channels) | |||
| Rise time | ≤14ns | ≤3.5ns | ≤1.7ns | |||
| Display | 7.8''color LCD, STN display |
8.0'' color LCD , TFT screen, 640×480 pixels | ||||
| Channel | Dual channels + external trigger | |||||
| Horizontal scale (s/div) | 5ns/div-5s/div step by 1-2.5-5 | 2ns/div~100s/div,step by 1~2~5 | 1ns/div~100s/div step by 1~2~5 |
|||
| DC accuracy(Average) | Average>16:±(3%reading+0.05div) for ΔV | |||||
| Vertical Sensitivity | 5mV/div -5V/div | 2mV/div -10V/div | ||||
| DC Gain Accuracy | ±3% | |||||
| Vertical resolution (A/D) | 8 bits (2 channels simultaneously) | |||||
| Interpolation | (sin x)/x | |||||
| Max. Input Voltage | 300V (DC + AC PK-PK) |
400V ( DC + AC PK-PK ) | ||||
| Input impedance | 1MΩ±2% in parallel with 20pF±3pF | |||||
| Probe attenuation factor |
1X, 10X, 100X, 1000X | |||||
| Trigger Mode | Edge, Video, Alternate,Pulse,Slope | |||||
| Acquisition mode | Normal, Peak Detect, Average | |||||
| Record length | Max.6K points on each channel | Max.2M points | ||||
| Waveform storage | 4 waveforms | |||||
| Automatic Measurement | Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,Width,Overshoot ,Preshoot ,Risetime,Falltime,+Width,-Width,+Duty,-Duty, Delay A→B↑, Delay A→B↓ |
|||||
| Waveform math | +, - , ×, ÷, FFT | |||||
| Power supply | 100-240V ACRMS,50Hz/60Hz,CATII | |||||
| Lissajou’s figure |
Bandwidth | 25MHz | 100MHz | 200MHz | ||
| Phase difference |
±3 degrees | |||||
| Communication interface | USB,Support USB Flash Disk Starage | |||||
| Fuse | 1A, T grade, 250V | |||||
| Logic Analyzer specification | |||||
| Model Name | MSO5022S | MSO7102T | MSO7102TD | MSO8102T | MSO8202T |
| Sample rate (real time) |
20S/s~100MS/s | 20S/s~400MS/s | |||
| Bandwidth | 33MHz | 66MHz | |||
| Channels | 16 | ||||
| Record length | 4M/channel | ||||
| Input impedance | 1MΩ±2% | ||||
| Trigger mode | Edge trigger, Bus trigger, State trigger, Data alignment trigger, Data width trigger,Distributed queue trigger | ||||
| Trigger position setting | Pre-trigger, mid-trigger, re-trigger | ||||
| Threshold Voltage | ±10V(4 settings) | ||||
| Input Signal Range | ±15V | ||||
| Data search | Available | ||||
| Data System | Binary system, Decimal system, Hex | ||||
| Digital filter | 0,1,2 optional | ||||
| Setting storage | 10 settings | ||||
| USB flash disk storage | Available | ||||
