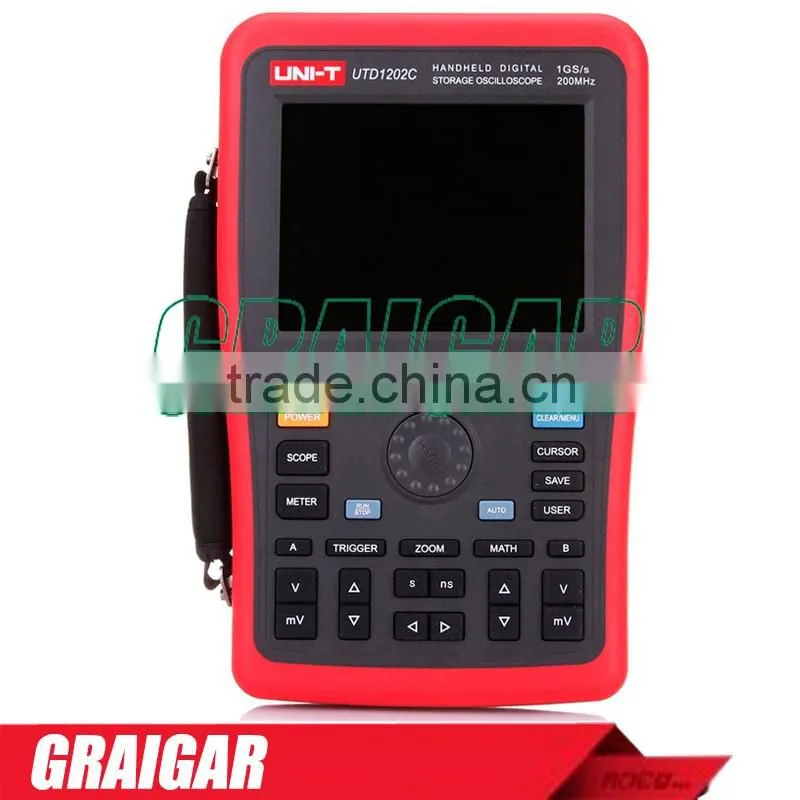

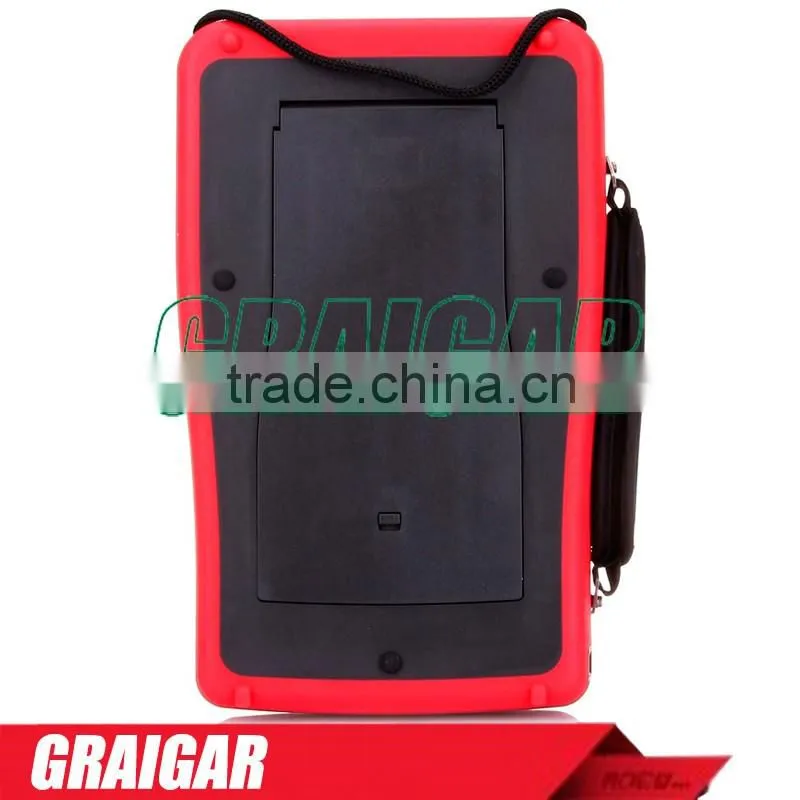

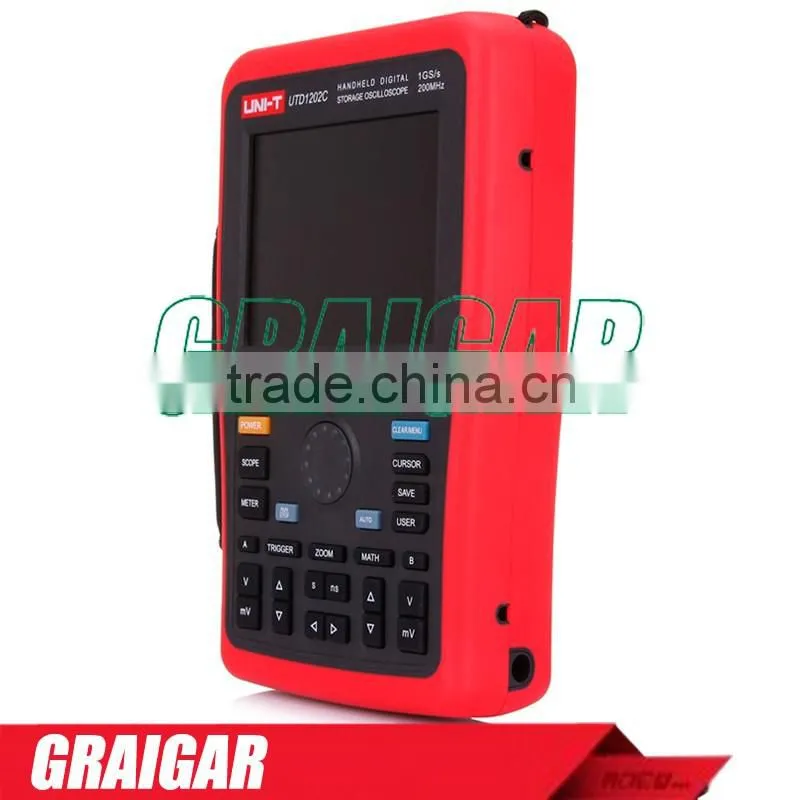

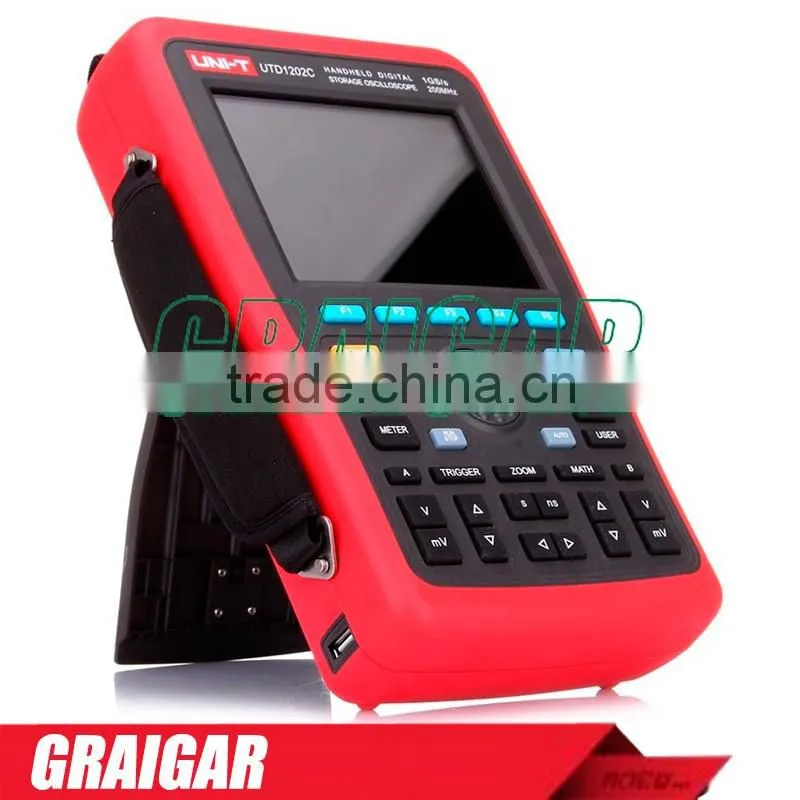

UNI-T UTD1202C 2 Channel 200MHz 1GS/s Handheld Digital Storage Oscilloscope Oscillograph with Multimeter
- 500 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | UNI-T | Model Number: | UTD1202C |
Product Description
UNI-T UTD1202C 2 Channel 200MHz 1GS/s Handheld Digital Storage Oscilloscope Oscillograph with Multimeter
Detailed
1,Automatic waveform and status configuration;
2,Storage of waveforms, setups and interfaces; waveforms and setups reproduction
3,Screen copy function;
4,Fine window extension; precise analysis of waveform details and overview;
5,Unique waveform recording, storage and replay function;
6,HD color 5.7 inch LCD panel at 320 x 240 pixel aspect ratio;
7,Multiple waveform mathematics functions (including add, subtract, multiply and divide);
8,Multimeter function;
9,USB drive system software upgrade.
Contrast
Specification | UTD1082C | UTD1102C | UTD1202C |
Channels | 2 | ||
Bandwidth | 80MHz | 100MHz | 200MHz |
Sample Rate | 500MS/s | 1GS/s | |
Rise Time | ≤4.5ns | ≤3.5ns | ≤1.8ns |
Memory Depth | 7.5 kpts | ||
Vertical Sensitivity | 5mV-50V/div | ||
Time-based Range | 5ns/div-50s/div | 2ns/div-50s/div | |
Storage | Setup, Waveform, Bitmap | ||
Trigger Modes | Edge, Pulse, Video and Alternative | ||
Interface | USB HOST | USB HOST / USB OTG (Optional) | |
Multimeter Specifications | Range | Best Accuracy | |
DC Voltage (V) | 600mV/6V/60V/600V/1000V | ±(1%+5) | |
AC Voltage (V) (45Hz-400Hz) | 600mV/6V/60V/600V/700V | ±(1.2%+5),Frequency:<200Hz | |
±(1.5%+5),Frequency:≥200Hz | |||
DC Current (A) (External Convertor) | 6mA/60mA/600mA | ±(1.2%+5) | |
6A | ±(1.5%+5) | ||
AC Current (A) (45Hz-400Hz) (External Convertor) | 6mA/60mA/600mA | ±(2%+5) | |
6A | ±(2.5%+5) | ||
Resistance (Ω) | 6kΩ/60kΩ/600kΩ | ±(1.2%+5) | |
600Ω/6MΩ/60MΩ | ±(1.5%+5) | ||
Capacitance (F) | 6nF/6mF | ±(5%+10) | |
60nF/600nF/6μF/60μF/600μF | ±(4%+5) | ||
Display Count | 6000 | ||
Auto Range | √ | ||
General Characteristic | |||
Power | Lithium Battery: 7.4V 4400mAh; DC Adapter: 100~240V 50/60Hz input, 9V 4A Output | ||
Display | 5.7 Inches 64K Color TFT LCD, 320×240 | ||
Product Color | Red and Grey | ||
Product Net Weight | 1.8 Kg | ||
Product Size (W×H×D) | 268mm × 168 mm × 60mm | ||
Standard Accessories | Probe×2(1×,10× Switchable), (Current Voltage Convertor)×2, Power Cord ,DC Adaptor, Test Lead, PC Software CD | ||

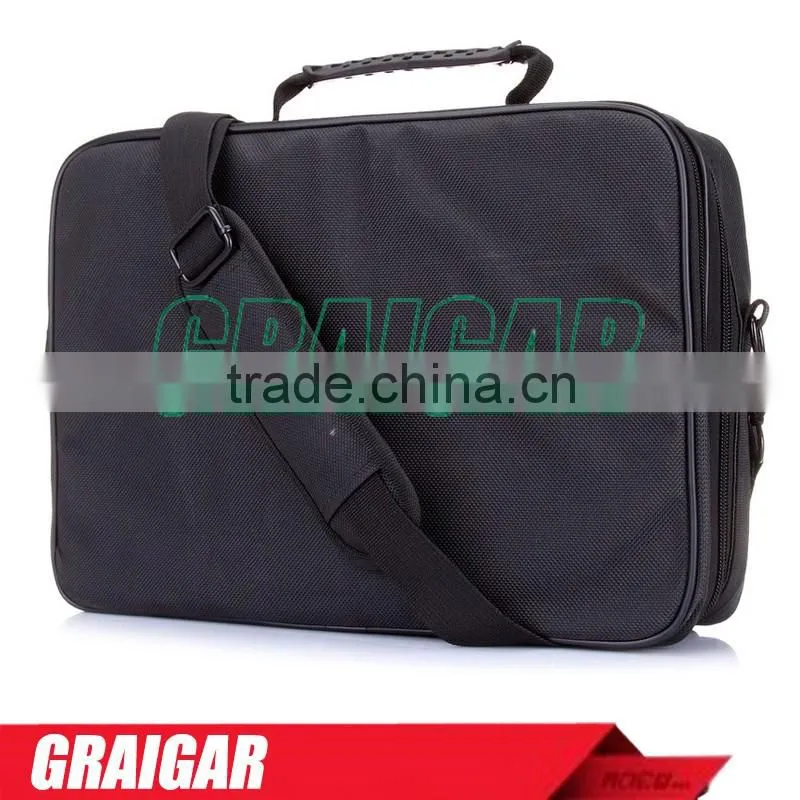

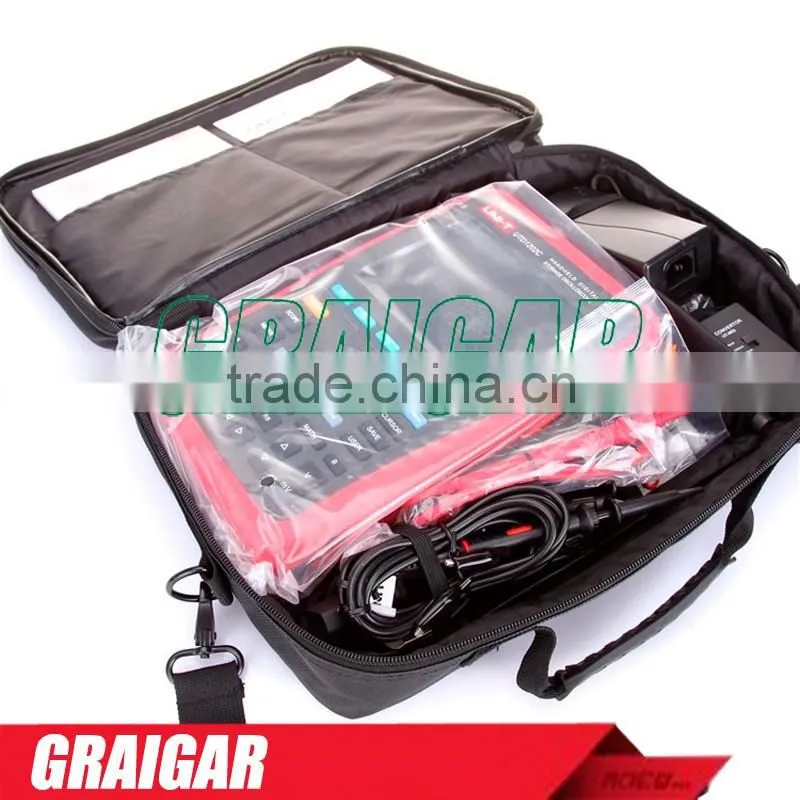

Standard Individual Packing | Gift Box,Carrying Bag, English Manual | ||
Standard Quantity Per Carton | 4 PCs | ||
Standard Carton Measurement (L×W×H) | 500mm × 400mm × 320mm | ||
Standard Carton Cross Weight | 10.8 Kg | ||
Optional Accessories | |||
UTD1202C Optional:USB OTG |

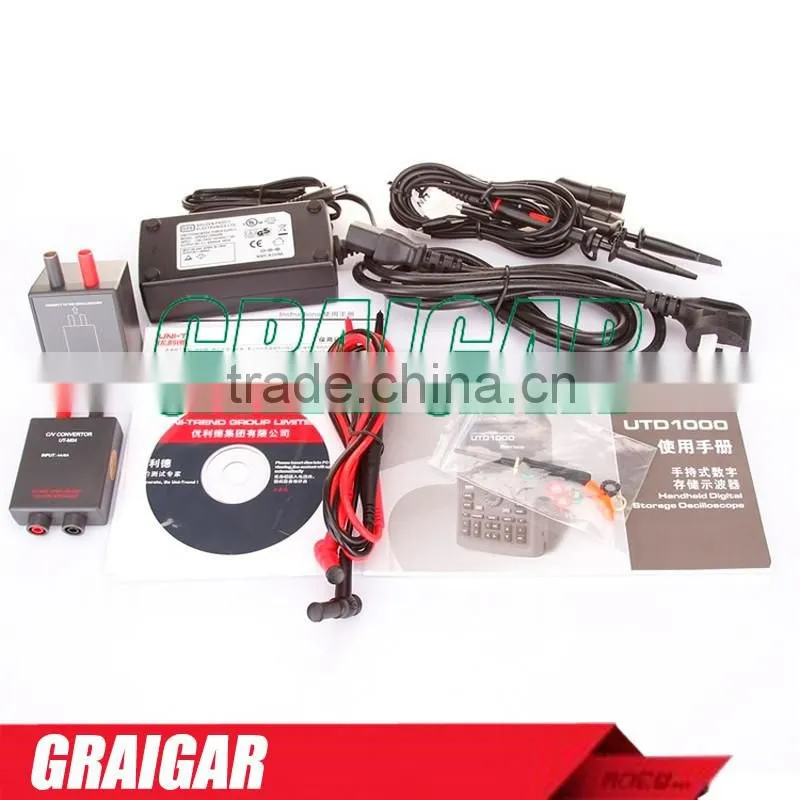

Fitting
Probe×2(1×,10× Switchable), Current Voltage,
Convertor×2(UT-M03,UT-M04),
Power Cord,
DC Adaptor,
Test Lead,
PC Software CD
(Julie Zhou)
