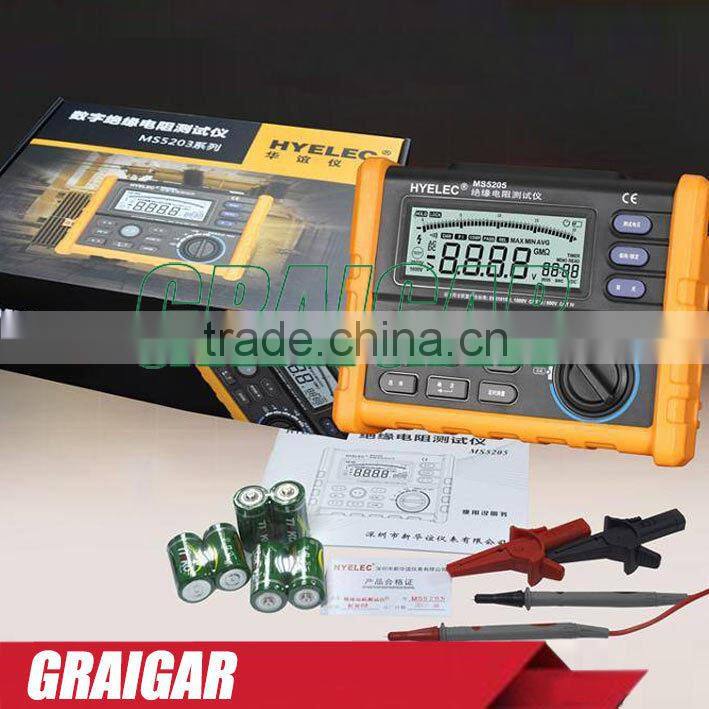

Portable Digital Megger HYELEC MS5205 250V/500V/1000V/2500 Digital Insulation Resistance Tester Megger MegOhm Meter
Features | ||
Digital Display & Analog Display | ||
Low Battery Display | ||
Auto Power Off | ||
Display Backlight | ||
Auto Calculate PI and DAR | ||
Store /Load Function | ||
Compare function | ||
Auto discharge for capacitive load | ||
Timer Function for insulation test | ||
Lock function for insulation test | ||
DCV and ACV Test | ||
Continuity test | ||
Power supply |
6 x1.5v AA batteries |
|
Weight |
Approx 950g |
|
Size |
180mm x 140mm x65mm |
|
Safety Rating |
CE ETL CAT.III 1000V .CAT IV 600V RoHS |
|
Specifications | ||
Insulation Test |
Source Output Voltage |
Measuring Range |
250V( 0 % - 20%) |
0.01MΩ - 250MΩ±(3%+5) |
|
500V( 0% - 20%) |
0.01MΩ - 500MΩ±(3%+5) |
|
1000V( 0% - 20%) |
0.01MΩ - 1000ΩM±(3%+5) |
|
1.00GΩ – 5.00ΩM±(5%+0.1GΩ) | ||
5.00GΩ – 10.00ΩM ±(10%+0.2GΩ) | ||
2500V( 0% - 20%) |
0.01MΩ – 2.00GΩ±(3%+5) |
|
2.00GΩ - 20.00GΩ±(5%+0.2GΩ) | ||
20.00GΩ – 100.00 GΩ ±(5%+0.2GΩ) | ||
Short Circuit Current |
2mA |
|
Multimeter |
DC Voltage Test |
0.1 - 1000V ±0.5% |
AC Voltage Test |
0.1 - 750V ±1% |
|
Continuity Test |
0.01Ω - 200Ω ±0.5% |
|
